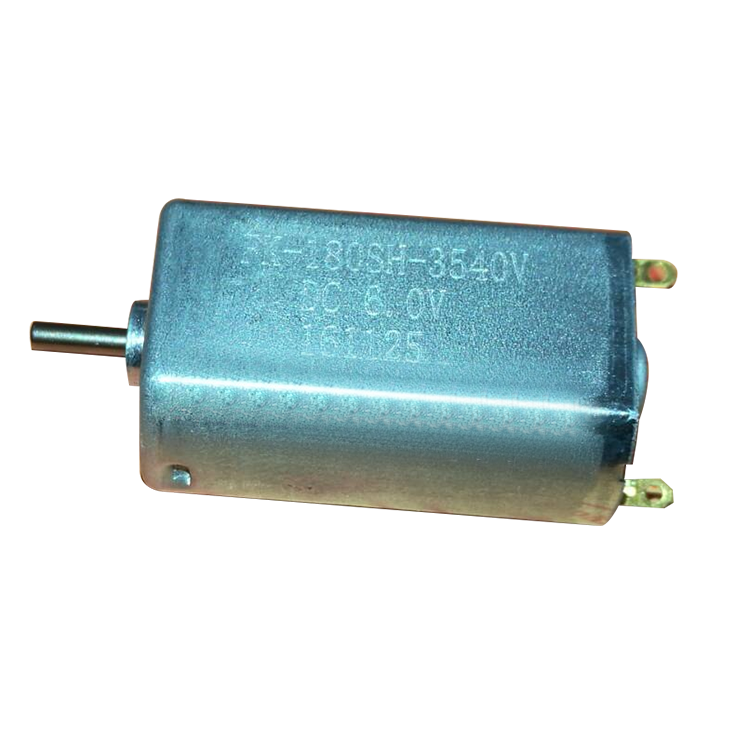

FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor

1 / 4

FF 180 Electric Shaver DC Motor 2.4v 12v FF-180 Dc Motor

Send Inquiry

Product Description

📦 Product Description

Place of Origin	Guangdong, China	Model Number	FF-180
Usage	Home Appliance	Certification	CCC, CE, ROHS
Type	Micro Motor	Construction	Permanent Magnet
Torque	110 g.cm	Commutation	Brush
Speed (RPM)	6900 rpm	Voltage (V)	2.4V
Output Power	1.1W	Efficiency	IE 1
No Load Speed	8300 rpm	Protect Feature	Drip-proof

🚢 Packaging & Shipping

Packaging Details: 500PCS/CTN, standard export carton packing

Delivery Detail: Within 25 days

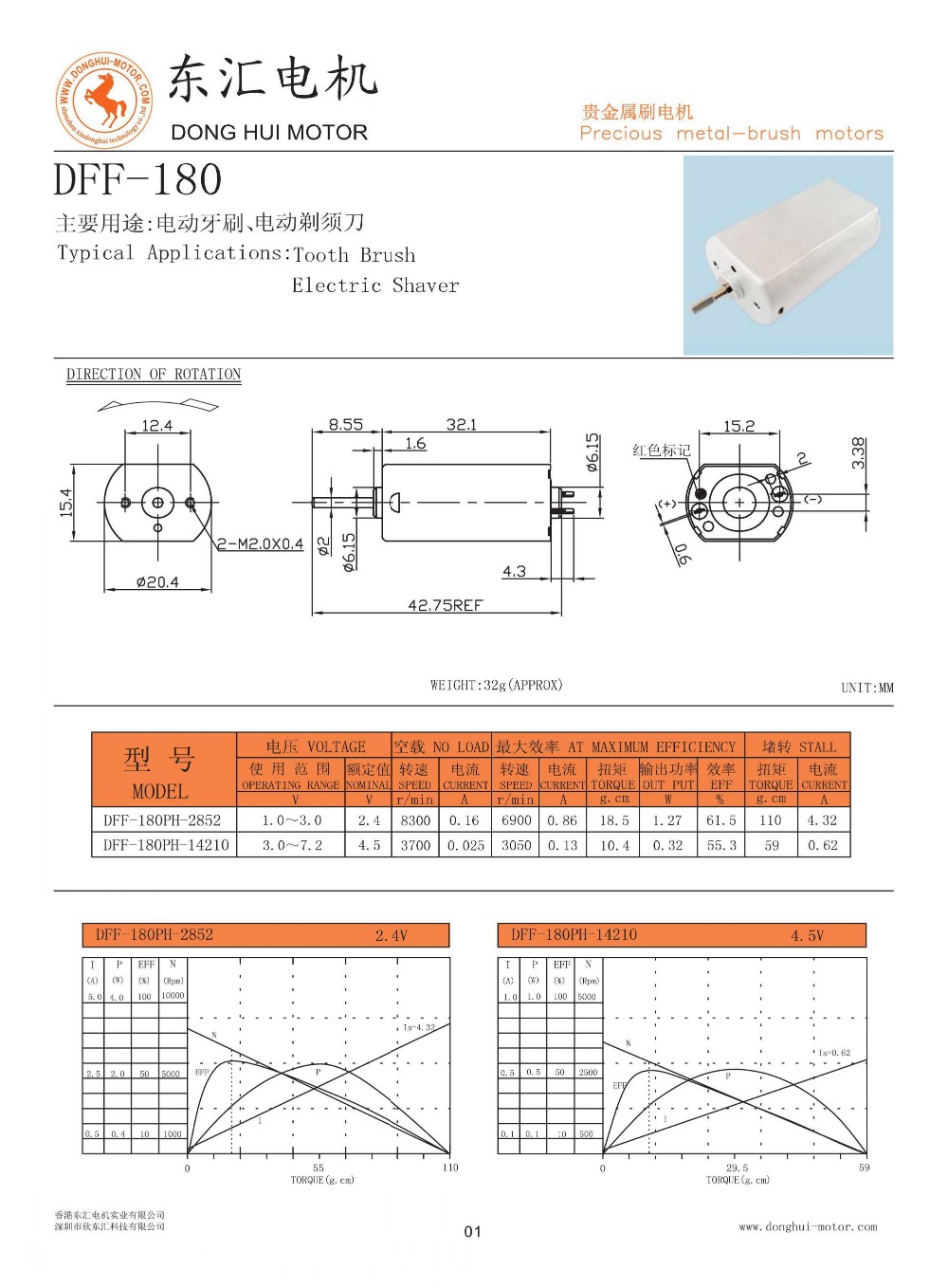

⚙️ Specifications & Features

Electric Shaver DC Motor 2.4v 12v FF-180 dc motor

3V-24V DC mini Motor for CD/Micro applications
Low noise, high speed, long-life (Carbon or metal brush)
Motor Voltage: 2.4v-12v
Shaft Diameter: 2.0mm
Motor Diameter: 20.4mm, Length: 32.1mm (Flat shape)
Output power: approx 0.5W~3.5W
Certification: CE, ROHS ISO9001:2000
Motor weight: 32g (Approx)
Direction of rotation: CW & CCW

🖼️ Product Gallery

🏢 Production Capability

Since our establishment in 2003, we have been committed to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. Our products are widely used in consumer electronics, electric toys, household appliances, office automation, medical equipment, power tools, and automotive fields.

Main Products: Dia4~100mm DC Micro Motors
Voltage Range: 1.5V - 42V (AC Rectify: 100V-240V)
Speed Range: 1 RPM - 30,000RPM
Stall Torque: 1g.cm - 30kg.cm

❓ Frequently Asked Questions

1. What is the standard voltage range for the FF-180 motor?

The FF-180 motor typically operates within a range of 2.4V to 12V DC, but can be adapted for 3V-24V requirements.

2. What are the main applications for this micro motor?

It is commonly used in household appliances such as electric shavers, toothbrushes, and audio-visual equipment like VCRs.

3. Can the shaft length be customized?

Yes, the motor specifications and shaft length can be tailor-made according to specific customer requirements.

4. What is the typical lead time for bulk orders?

The delivery time is usually within 25 days after order confirmation, depending on the order volume.

5. Does the motor support both CW and CCW rotation?

Yes, the FF-180 motor is designed to support both Clockwise (CW) and Counter-Clockwise (CCW) directions.

6. What certifications do your motors hold?

Our products are compliant with CE, ROHS, and CCC standards, manufactured under ISO9001:2000 quality management.
