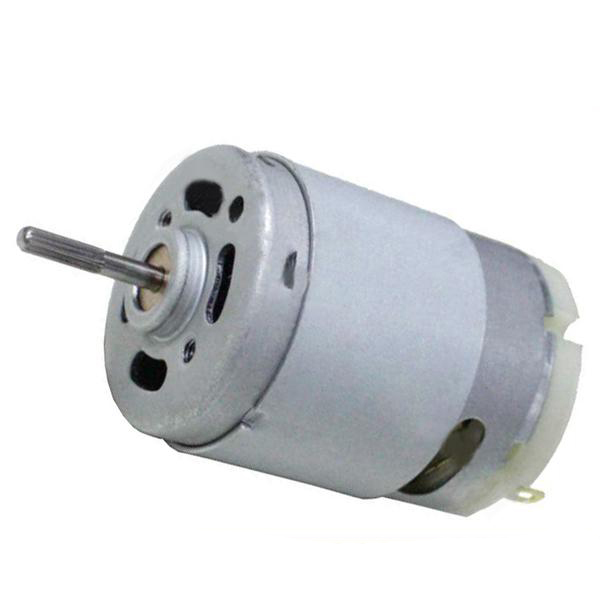

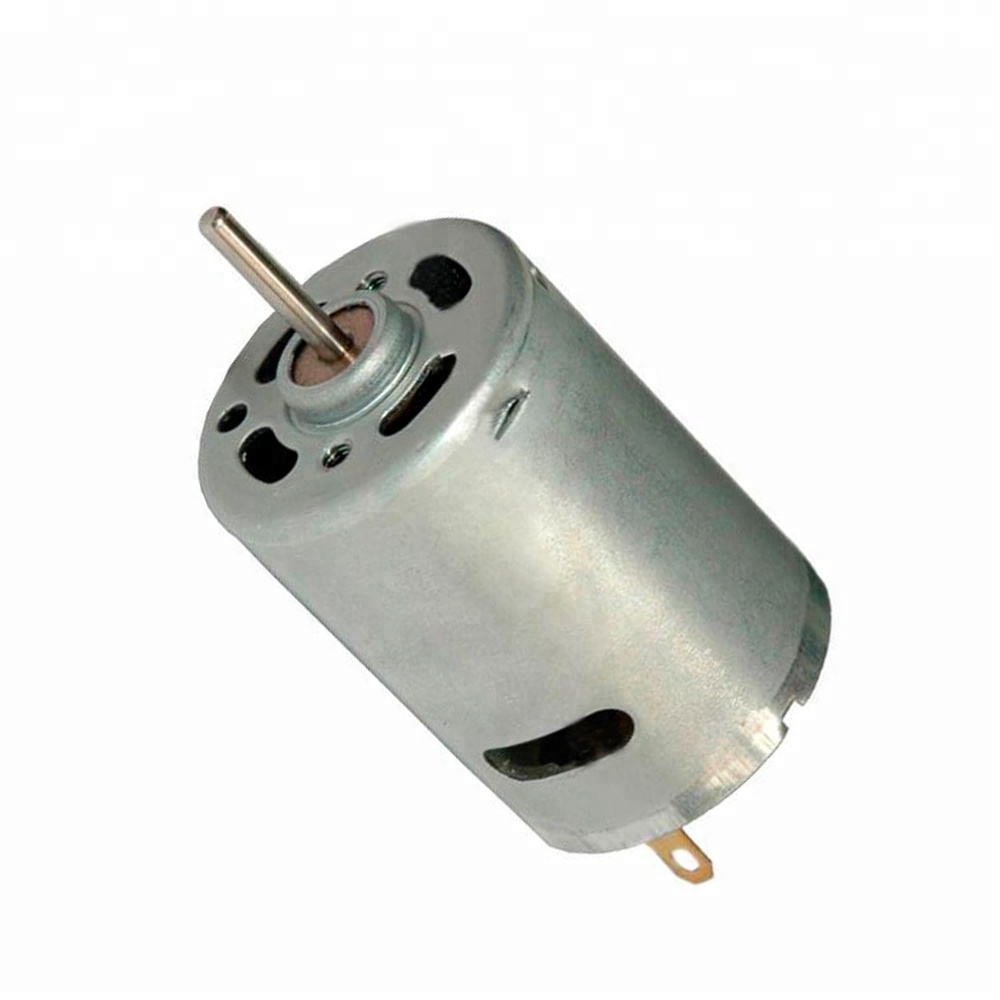

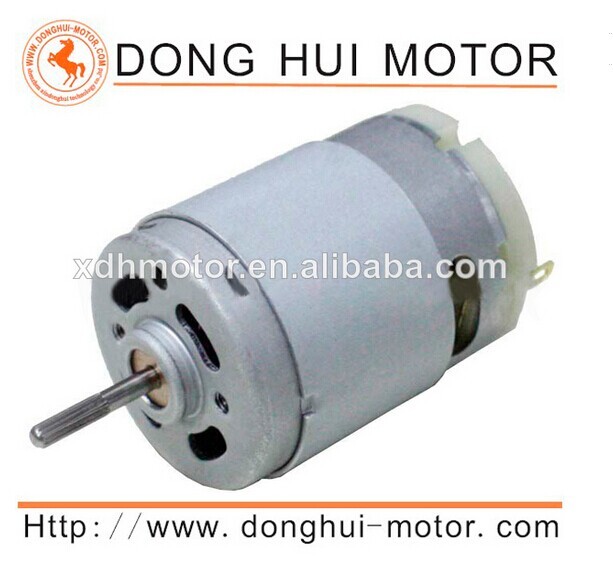

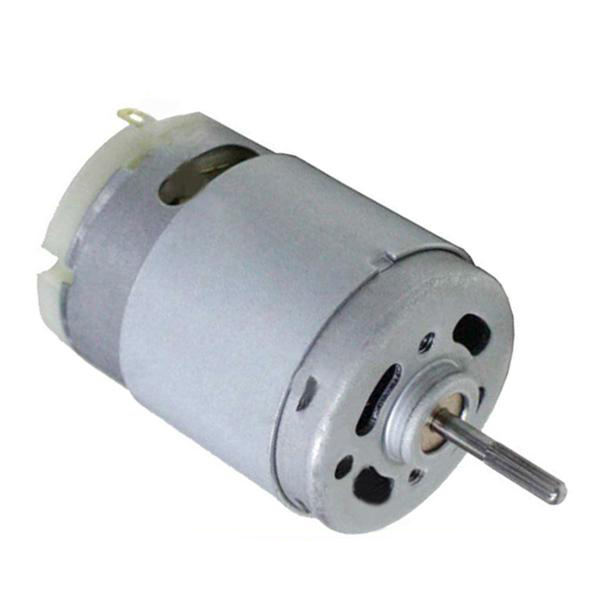

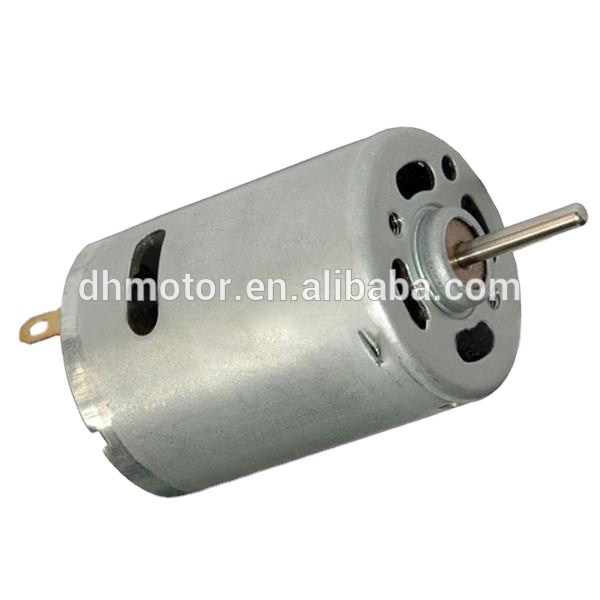

Rs-385 12v 24v Dc Electric Motor for Water Pump Motor, 12v 24v Water Pump Motor

1 / 5

Rs-385 12v 24v Dc Electric Motor for Water Pump Motor, 12v 24v Water Pump Motor

Send Inquiry

Product Description

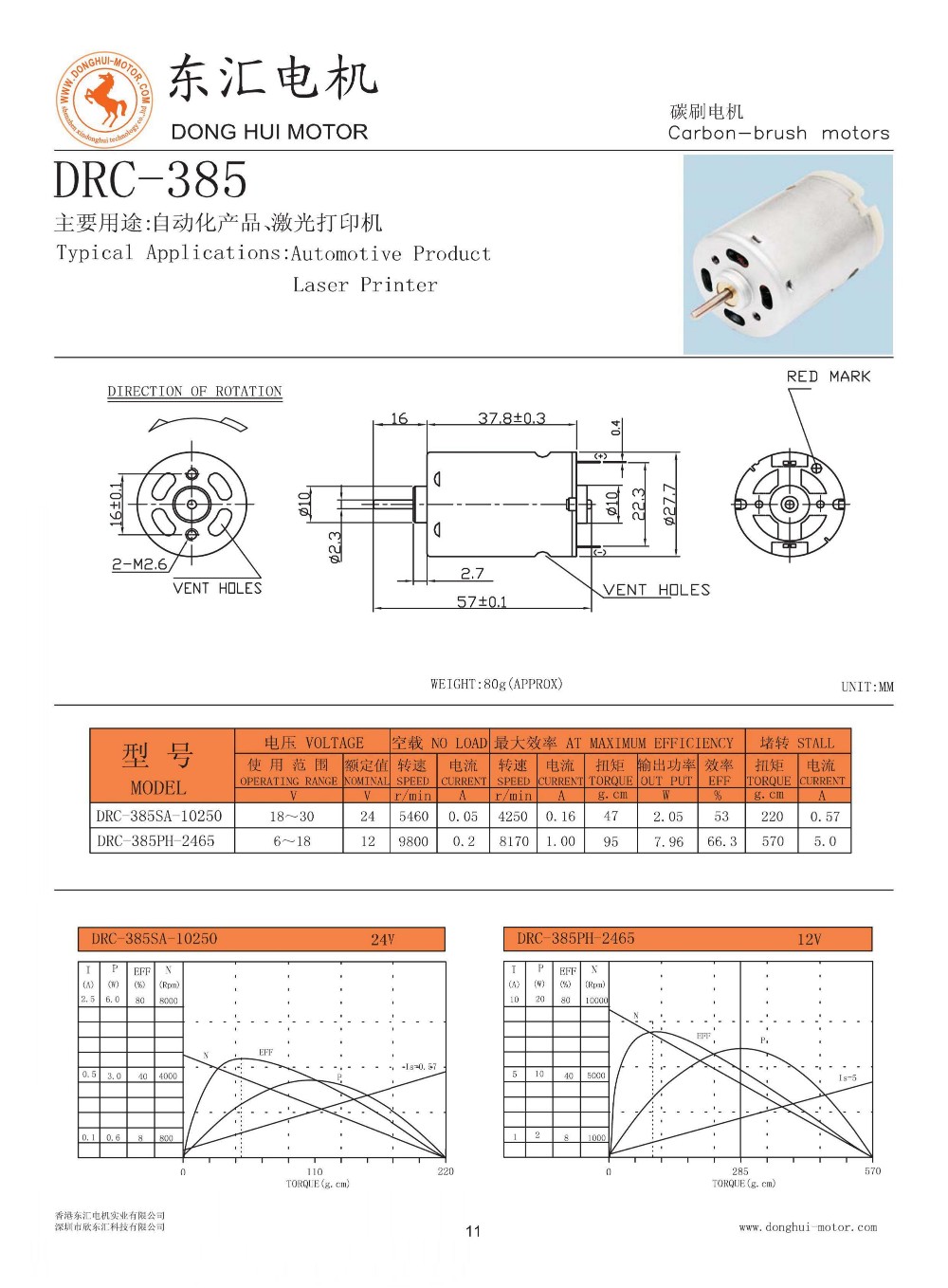

● Product Specifications

Brand Name:DH Motor

Model Number:RS-385

Voltage:12-24V

Speed (RPM):4250 rpm

No Load Speed:5460 rpm

Torque:220 G.cm

Output Power:2W

Efficiency:IE 1 (53.3%)

Shaft:2.3mm D-cup shaft

Commutation:Brush (Carbon)

Weight:80g

Certification:ROHS, CE, ISO9001

● Key Features & Highlights

Low noise, high torque, and long-life performance.

Versatile voltage support from 3V to 24V DC.

Compact Dimensions: 27.7mm Diameter, 38mm Length.

Rotation direction supports both CW & CCW.

Customizable specifications and shaft lengths available upon request.

● Typical Applications

Ideal for boat, car, electric bicycles, fans, massagers, vibrators, air compressors, kitchen utensils, and various household appliances.

● Product Gallery

● Packaging & Shipping

Packaging: International Standard / Custom Packaging

Delivery: Within 30 Days

● Manufacturing Capabilities

Established in 2003, we specialize in the development and production of micro motors. Our product line includes Micro DC motors, DC gear motors, coreless motors, and brushless motors ranging from 4mm to 100mm in diameter.

● Frequently Asked Questions

Q1: What is the main voltage range for the RS-385 motor?

The motor typically operates between 12V and 24V DC, but can be tailored for ranges between 3V to 42V depending on application requirements.

Q2: Can the shaft length and diameter be customized?

Yes, the motor specification and shaft length can be tailor-made according to the customer's specific requirements.

Q3: What are the primary applications for this micro motor?

It is widely used in household appliances, massagers, water pumps, air compressors, and precision instruments.

Q4: Does the motor support both clockwise and counter-clockwise rotation?

Yes, the RS-385 motor supports both CW (Clockwise) and CCW (Counter-Clockwise) rotation directions.

Q5: What certifications do your motors hold?

Our products are compliant with CE, ROHS, and ISO9001:2000 quality management standards.

Q6: What is the typical lead time for delivery?

The standard delivery time is generally less than 30 days, depending on order quantity and customization needs.
