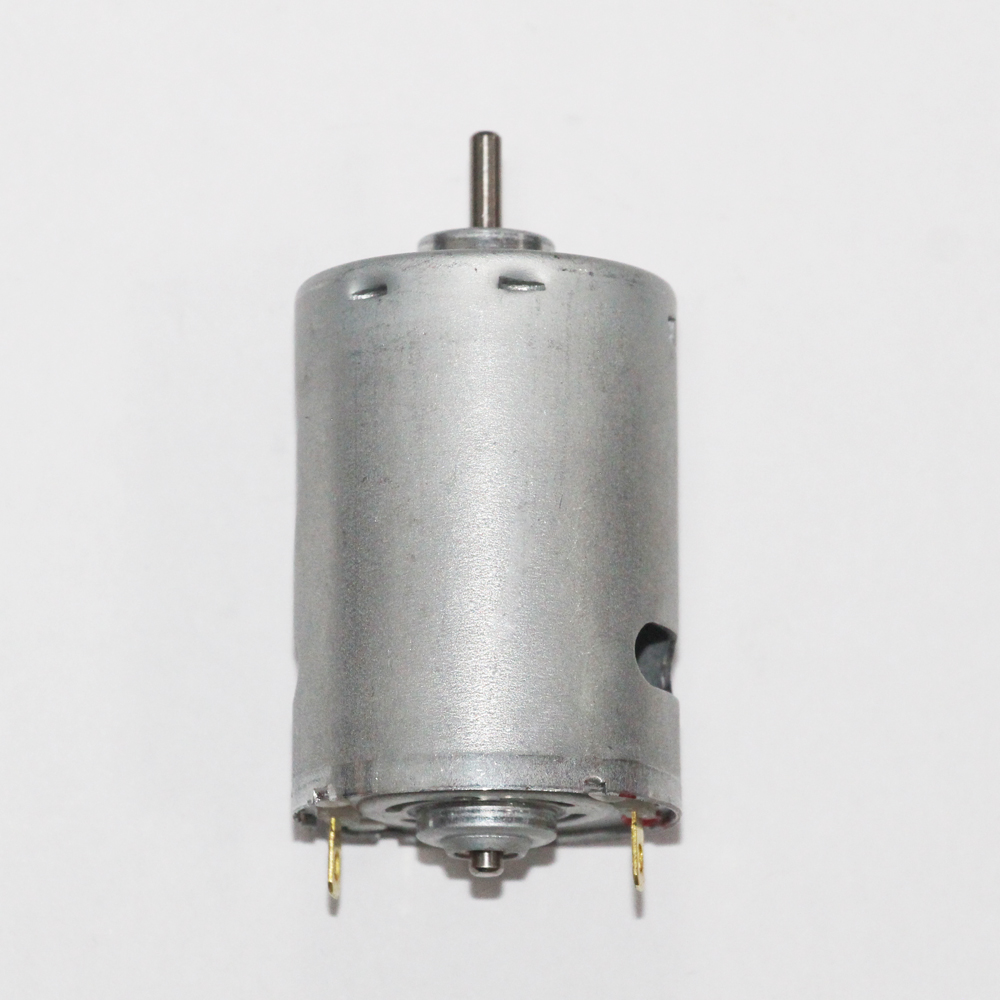

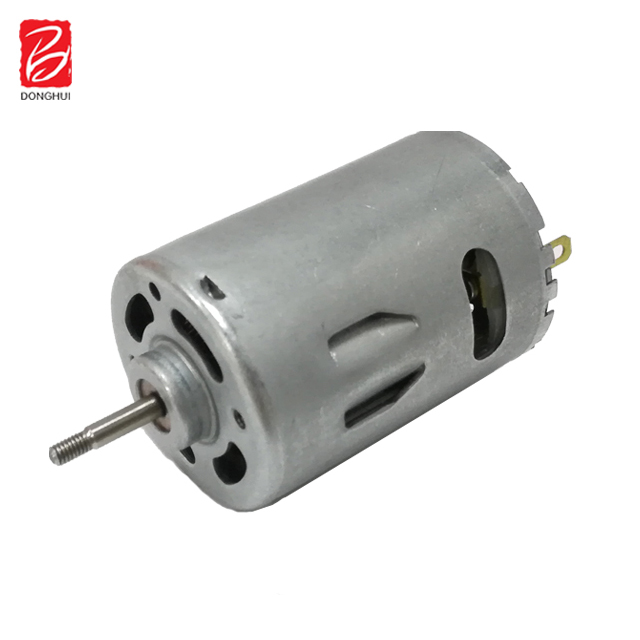

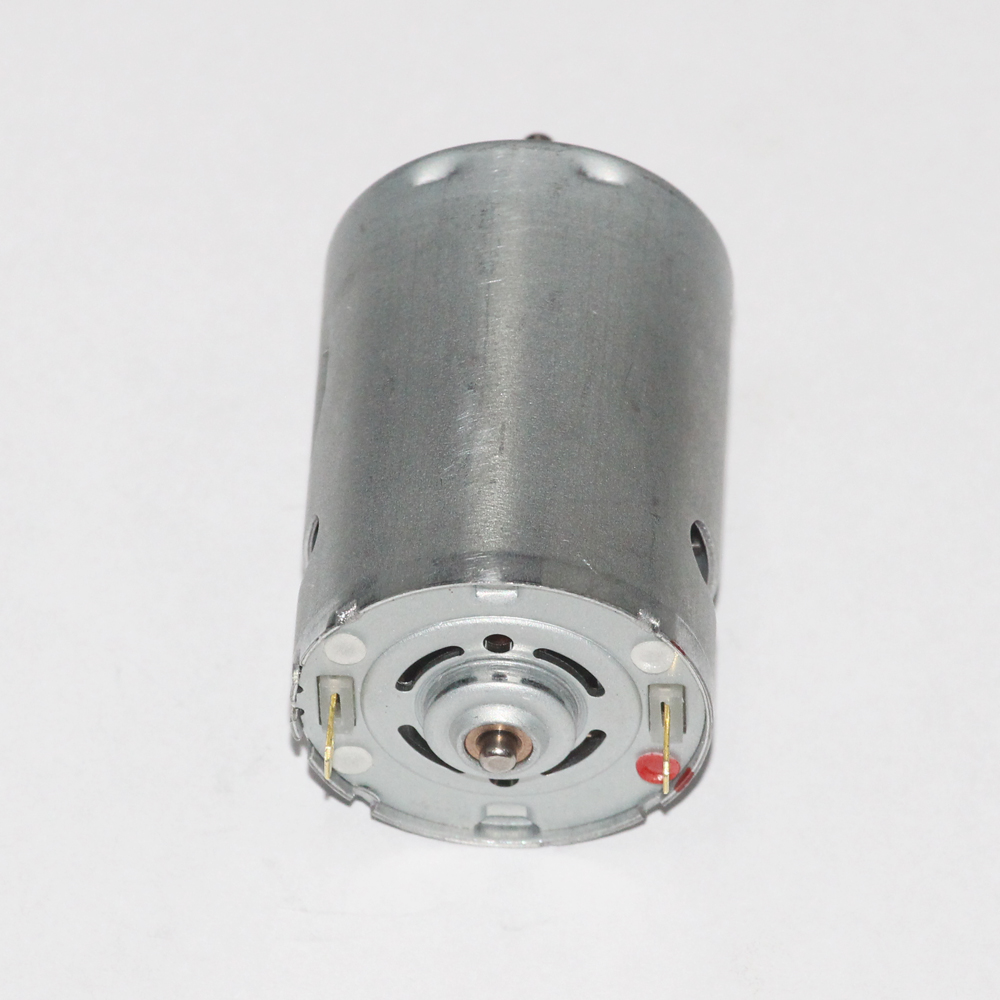

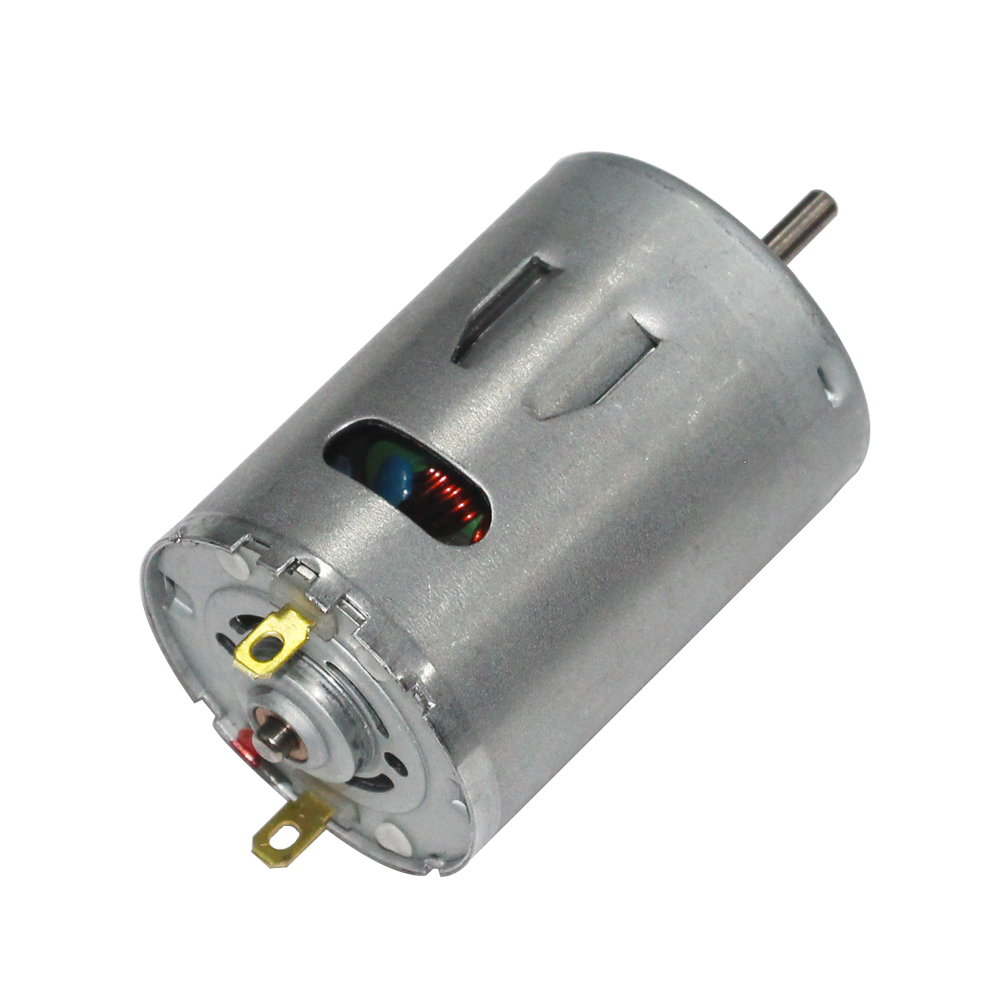

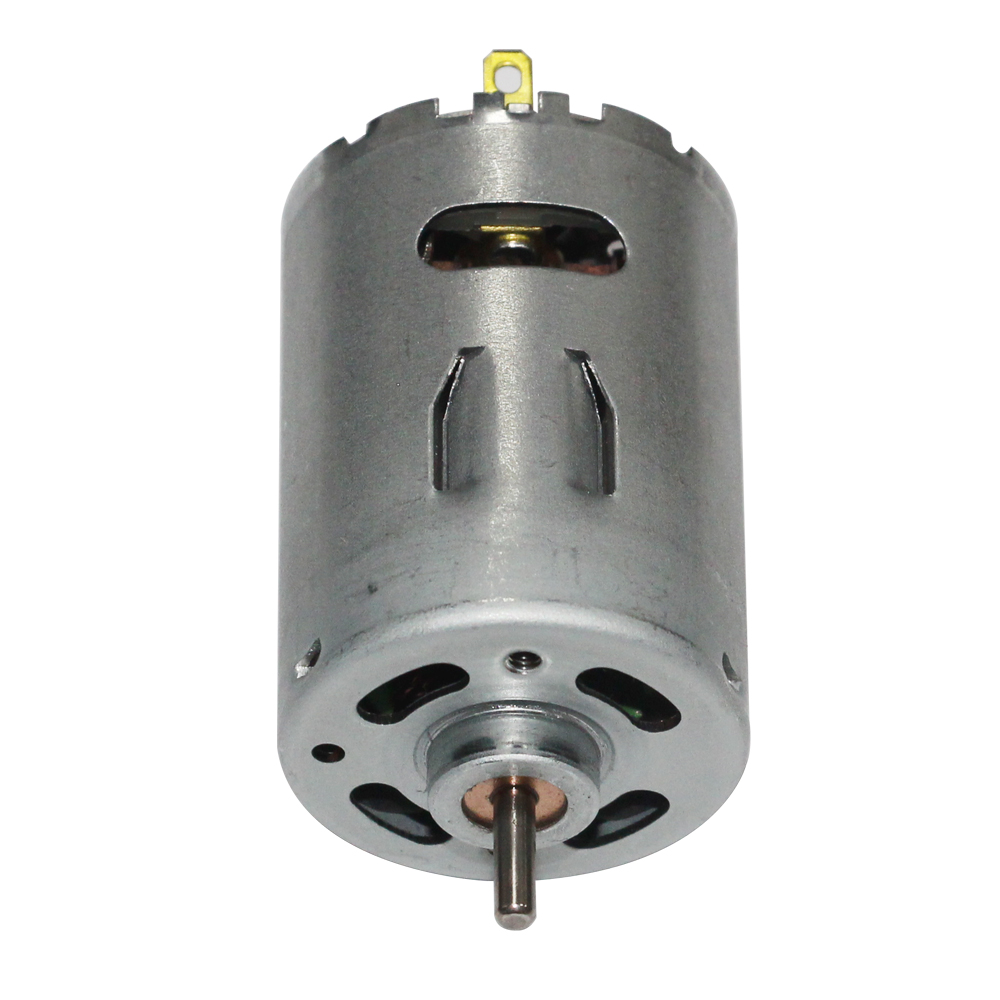

rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
1 / 5
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque
rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque

rs 540 Dc Motor 7.2v Micro Brush Dc Motor for RC Car, High Speed 7.2v Dc Rc Motor with High Torque

Send Inquiry

Product Description

🔹 Product Description
Model Number RS-540 Type Micro Motor
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance Certification ROHS, ISO9001
Voltage (V) 6-24V Speed (RPM) 19600 rpm
Output Power 60W Torque 1988 G.cm
Shaft 3.175 MM Weight 150g
Commutation Brush (Carbon) Efficiency IE 1 (Max 53.3%)
Protect Feature Drip-proof No-load Speed 23400 rpm
🚀 Key Features & Specifications

RS 540 DC Motor: High Speed & High Torque Micro Motor

✔Low noise, high torque, and long-life performance.
✔Wide Voltage Range: Supports 3V - 24V applications.
✔Standard Dimensions: Diameter 35.8mm, Length 50mm.
✔Output Power: Approximately 1W ~ 35W.
✔Rotation Direction: Supports both CW (Clockwise) and CCW (Counter-Clockwise).
✔Customizable: Specifications and shaft length can be tailored to specific requirements.
📷 Product Display
RS 540 DC Motor Overview

Motor Details & Dimensions:

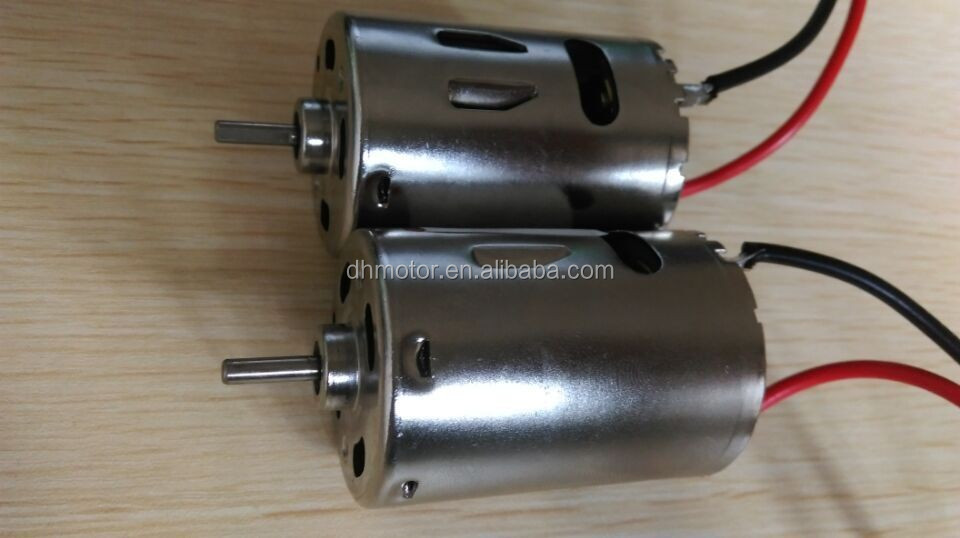

RS 540 Front View

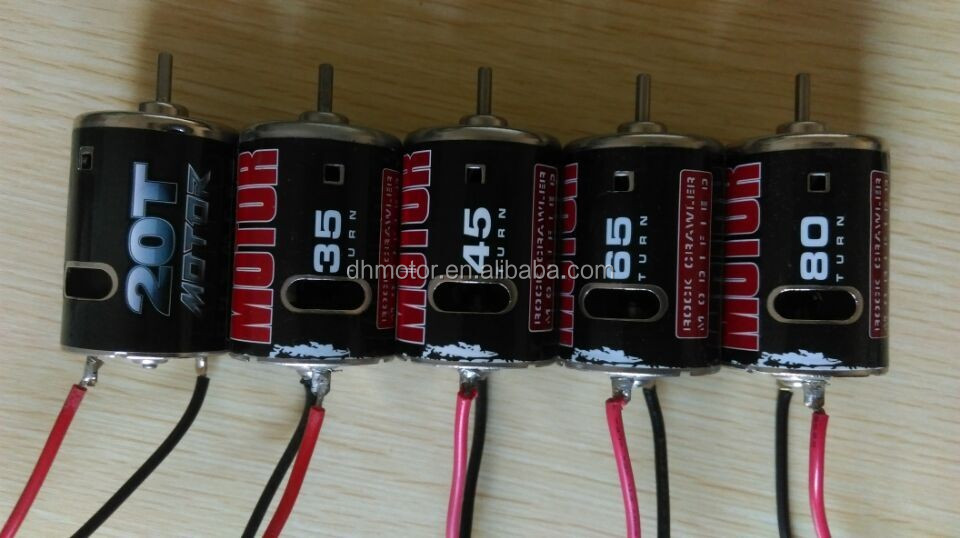

RS 540 Side View
Motor Dimension Diagram

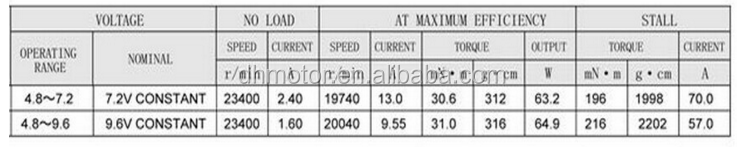

Performance Chart
📦 Packaging & Shipping
Packaging Detail International standard packaging or customized client standards.
Delivery Detail Estimated in less than 30 days.
🛠 Technical Applications

Specializing in the development of Micro DC motors, including gear, coreless, and brushless series. These motors are widely utilized in:

Application 1
Application 2
Application 3
•Consumer Electronics: Personal care products, Audio & Visual equipment.
•Household Appliances: Kitchen utensils, massagers, air compressors.
•Automotive & Tools: Power tools, auto DC motors, RC cars and models.
•Automation: Office equipment and precision instruments.
❓ Frequently Asked Questions
What is the voltage range for the RS-540 motor?
The motor typically operates within a DC range of 6V to 24V, making it versatile for various battery-powered applications.
Can the shaft dimensions be customized?
Yes, the motor specification and shaft length can be tailor-made according to specific customer requirements.
What are the main applications for this micro motor?
It is commonly used in household appliances (like massagers and kitchen utensils), electric toys (RC cars), power tools, and automotive equipment.
Does this motor support bi-directional rotation?
Yes, the RS-540 DC motor supports both Clockwise (CW) and Counter-Clockwise (CCW) rotation directions.
What is the average delivery time for orders?
Standard delivery for international orders is typically completed in less than 30 days.
Is the motor compliant with international standards?
Yes, our motors are certified under CE, ROHS, and ISO9001 standards, ensuring high quality and environmental safety.
