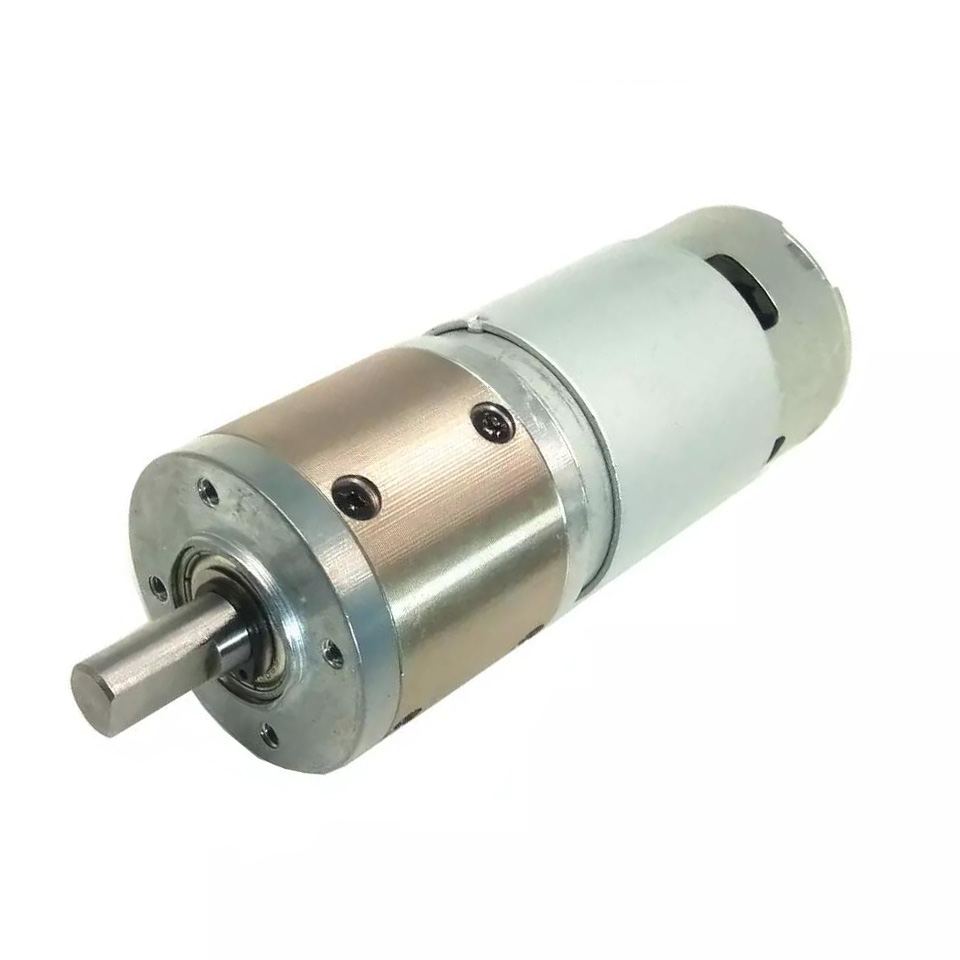

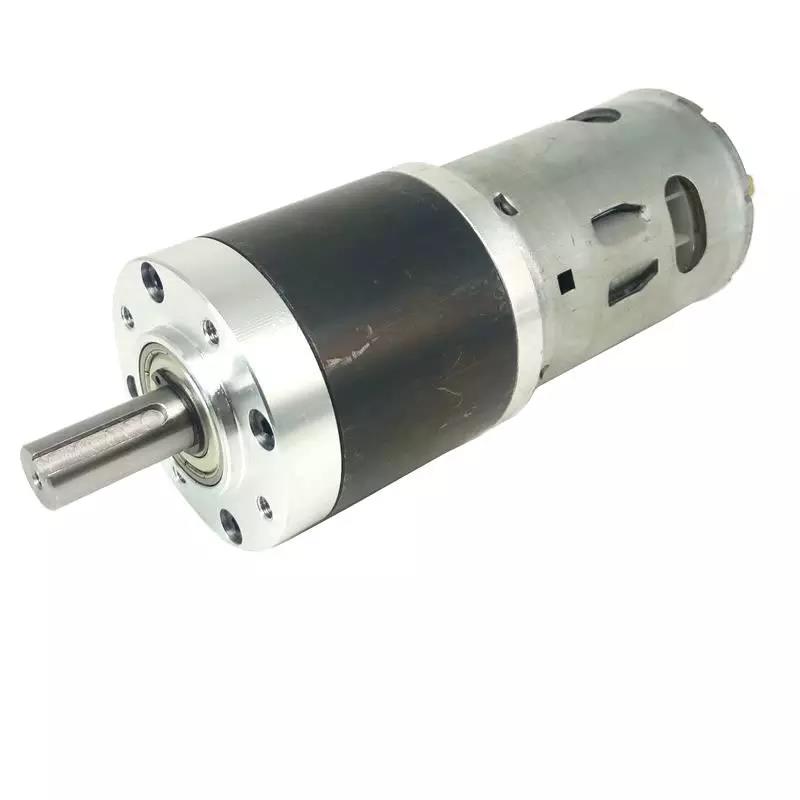

OEM Cheap Price Diameter 45mm 24v High Torque 30KG Precision Dc Micro Planetary Gear Motor with Brushed Dc 775 Motor DPG45-775

Send Inquiry

Product Description

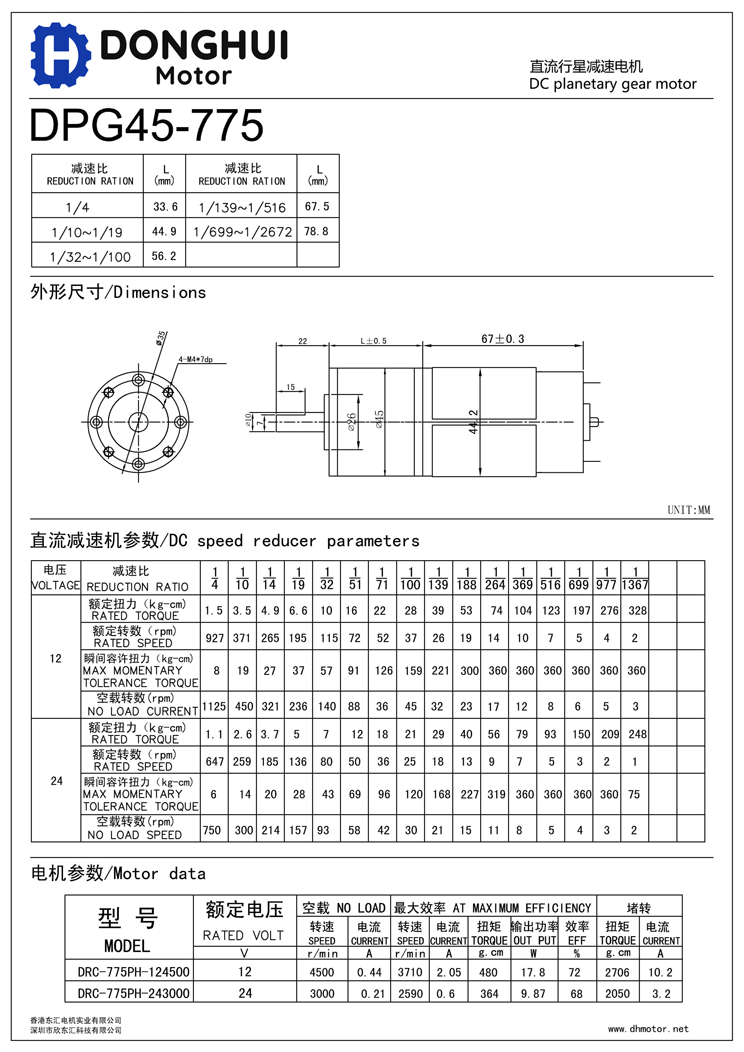

⚙️ KEY SPECIFICATION OF THE MOTOR

ITEM	VALUE
Motor Type	DC Planetary gear Motor
Motor Model No	DPG45-775
Size(Dimensions)	D: 45mm
Operating Voltage	12V~24V DC
Speed RPM	15~1500 r/min-No Load
Motor Power Output	Approx 15W~60W
Typical Application	Cosmetic instrument, FAN, SMART HOME, Home Appliance
Shaft Length	Customized
Driver PCBA	Built-in or External

❓ Frequently Asked Questions

1. What is the operating voltage range for this DC Planetary gear motor?

The motor operates within a voltage range of 12V to 24V DC, making it versatile for various power supply configurations.

2. What are the typical applications for the DPG45-775 model?

It is commonly used in cosmetic instruments, fans, smart home devices, and various other home appliances.

3. Can the shaft length be customized to fit specific requirements?

Yes, the shaft length of the motor is fully customizable to meet your specific application needs.

4. What is the speed and power output of this motor?

The motor offers a no-load speed ranging from 15 to 1500 r/min, with a power output approximately between 15W and 60W.

5. Does the motor come with a driver PCBA?

The motor can be supplied with either a built-in or an external driver PCBA depending on your design preferences.

6. What is the diameter of the planetary gearbox?

The DPG45-775 model features a diameter of 45mm, providing a compact yet powerful solution for high-torque requirements.
