High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan
High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan
High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan
High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan
1 / 4
High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan
High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan
High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan
High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan

High Efficiency Low Noise Permanent Magnet Ball Bearing Long Life BL3657 36mm Brushless DC Motor 12-24V for Actuator and Fan

Send Inquiry

Product Description

BLDC Motor Overview

Product Description

12V 24V 36mm BLDC Motor for Personal Care

Voltage: DC 12V - 24V
No-load Speed: 4200RPM
Dimensions: Diameter 36mm, Length 57mm
Weight: Approx 207g

This high-performance brushless motor is ideal for a wide range of applications including robotics, home appliances, intelligent door locks, medical equipment, automotive systems, and communication devices. We offer customization to adjust voltage, speed, and torque to meet your specific project needs.

Technical Specifications

Item Value
Product NameHigh quality Brushless DC Motor
Model NoBL3657
Rated Voltage24V DC
Rated Speed5000RPM
Bearing TypeBall Bearing
Driver PCBABuilt-In Driver

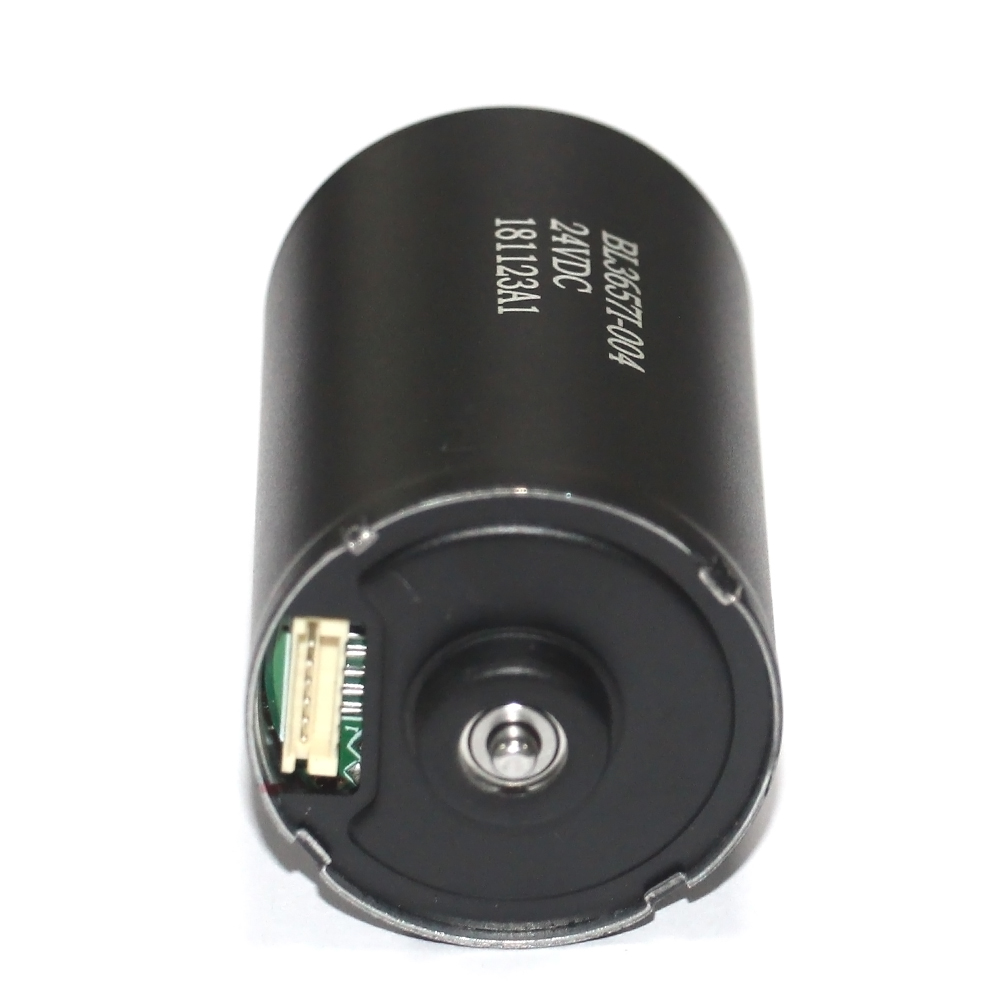

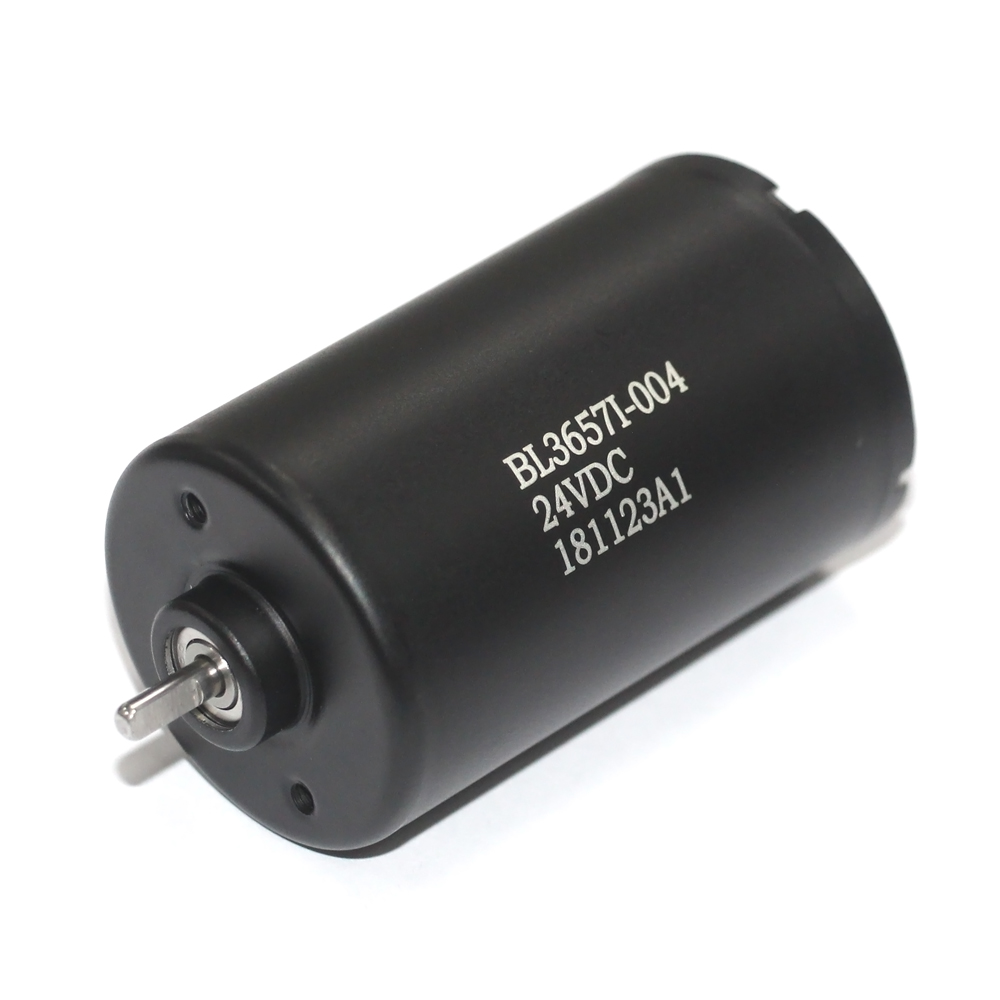

BLDC Motor Detail 1
BLDC Motor Detail 2

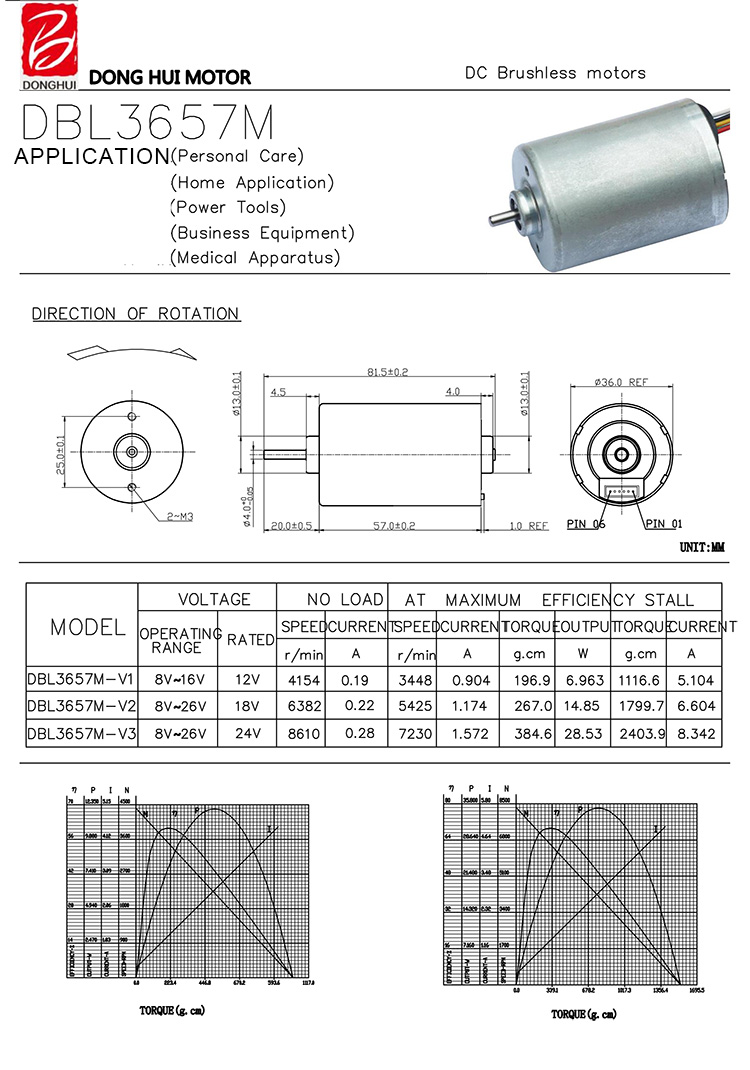

Dimension Drawing

Similar Products

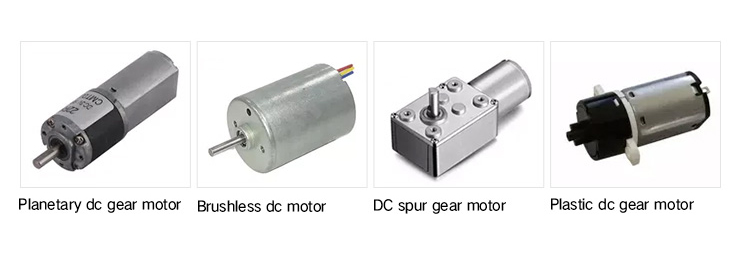

Similar DC Motors

Applications

Our DC motors and gear motors feature a wide range of applications, primarily serving:

  • Intelligent robots and smart home systems (locks, switches)
  • Medical and healthcare equipment
  • Automotive systems and communication devices
  • Digital cameras and domestic appliances
Application Scenarios

Production & Packaging

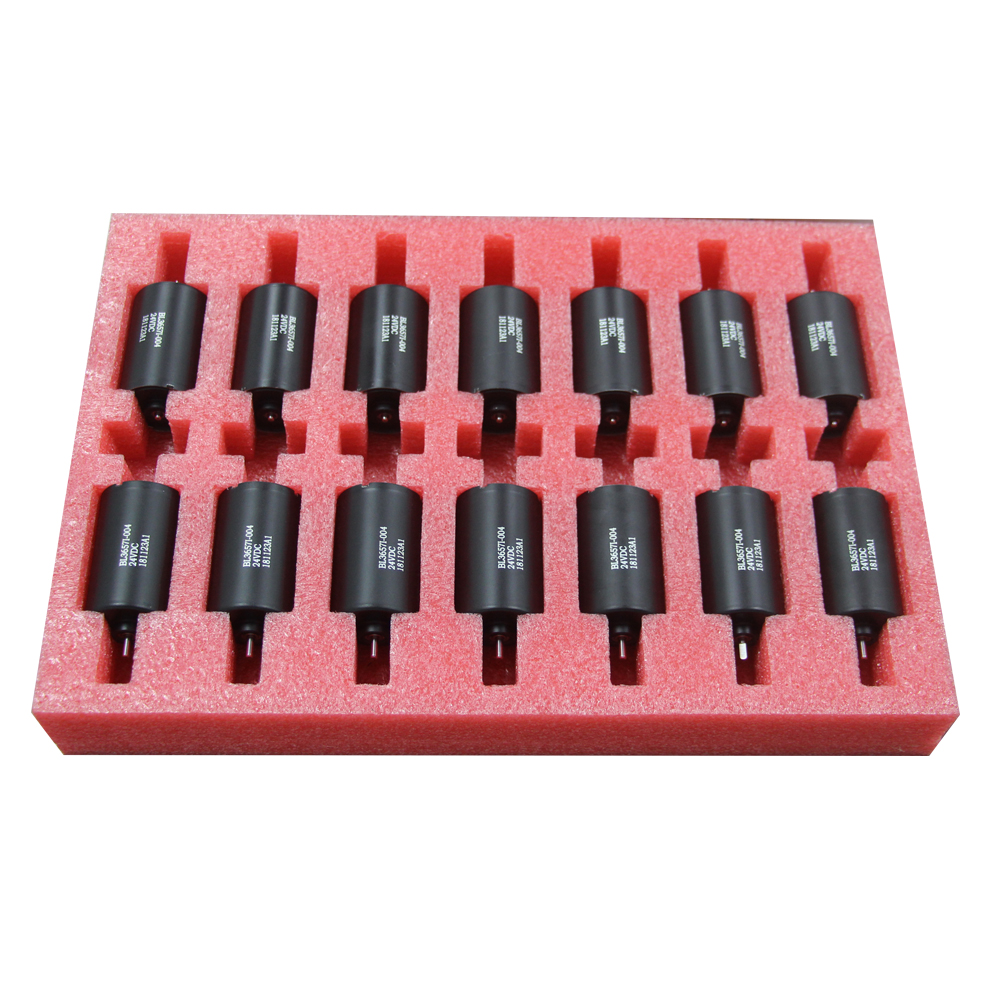

Packaging

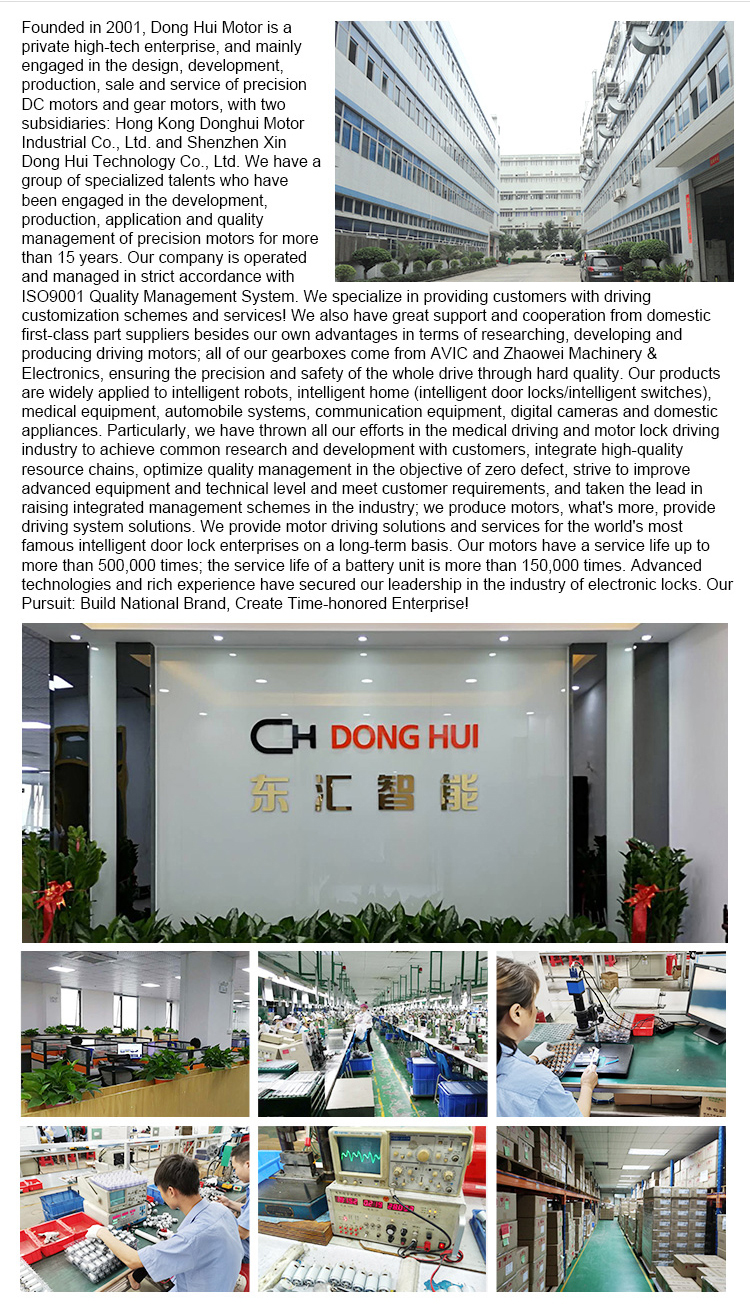

Factory Floor
Quality Control

Frequently Asked Questions

What are your main motor products?
We specialize in Dia 10~52mm DC Micro Motors and Gear Motors, including Brushless DC motors, Brush DC motors, Vibration motors, and Spur Gear motors.
What is the primary use for these micro DC motors?
Our motors are widely used in home appliances, office equipment, healthcare devices, automation industries, vending machines, and electronic locks.
Do you offer product customization?
Yes, we have a strong technical design team to customize motor performance based on your specific requirements.
What information is needed to place an order?
Please provide the required voltage, speed, torque, and overall dimensions to help us match the right motor for your needs.
What if I am unsure about the technical specifications?
Simply contact our team. We will guide you through the selection process and answer any technical questions patiently.
Do you provide solutions for new product designs?
Absolutely. If you are developing a new product, we are willing to offer comprehensive motor solutions throughout your project's development.
