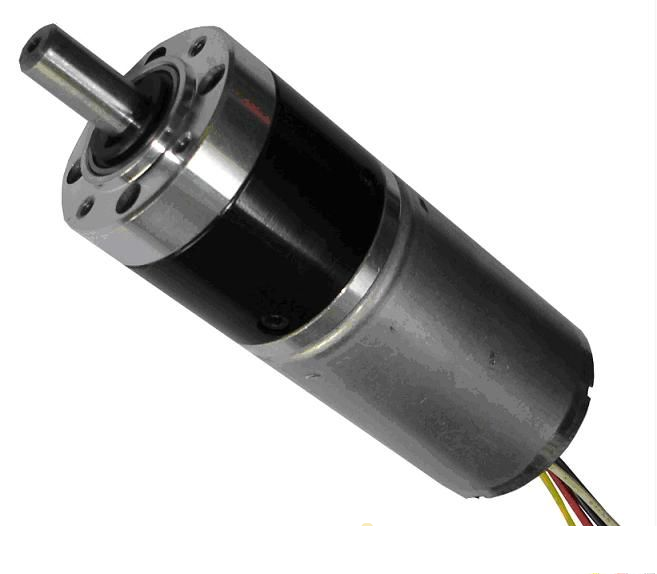

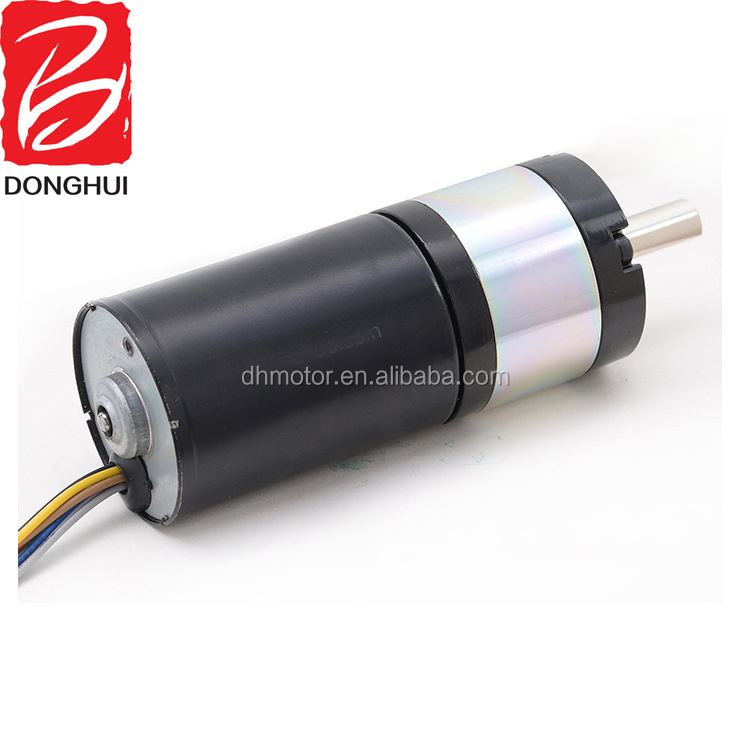

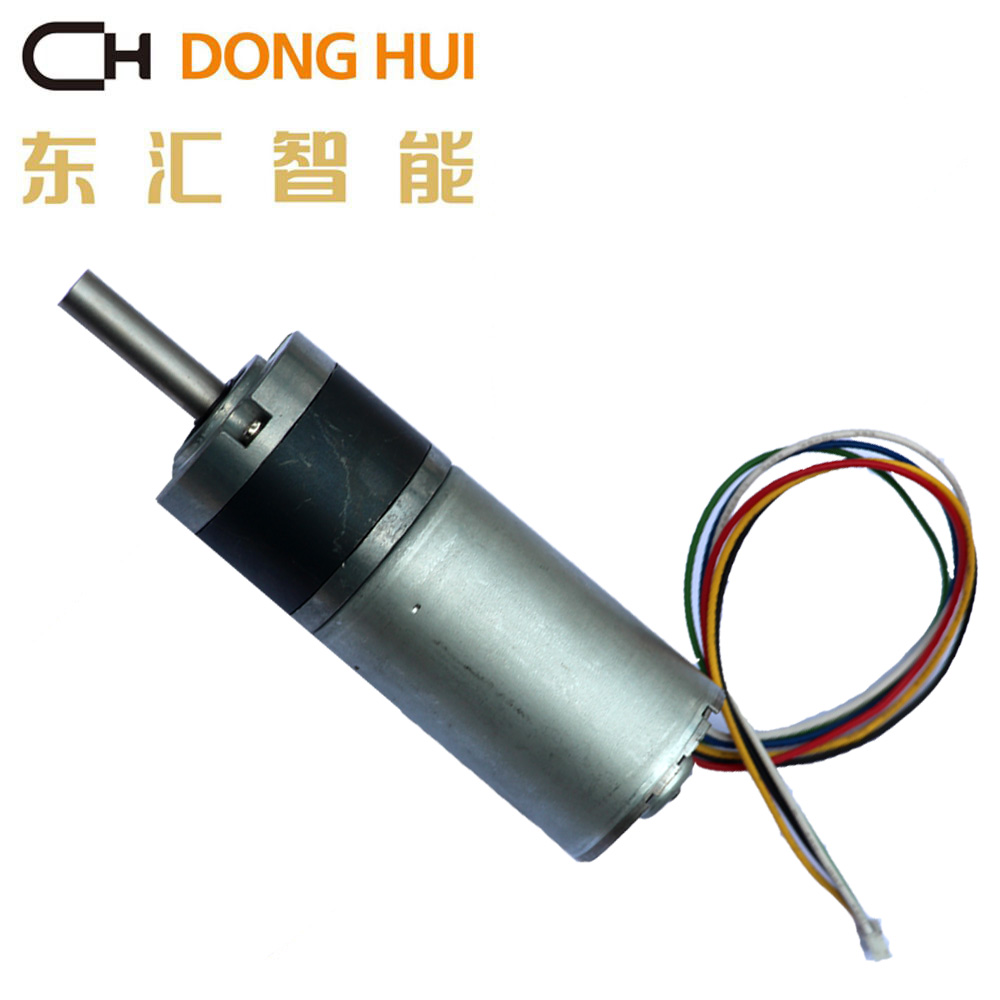

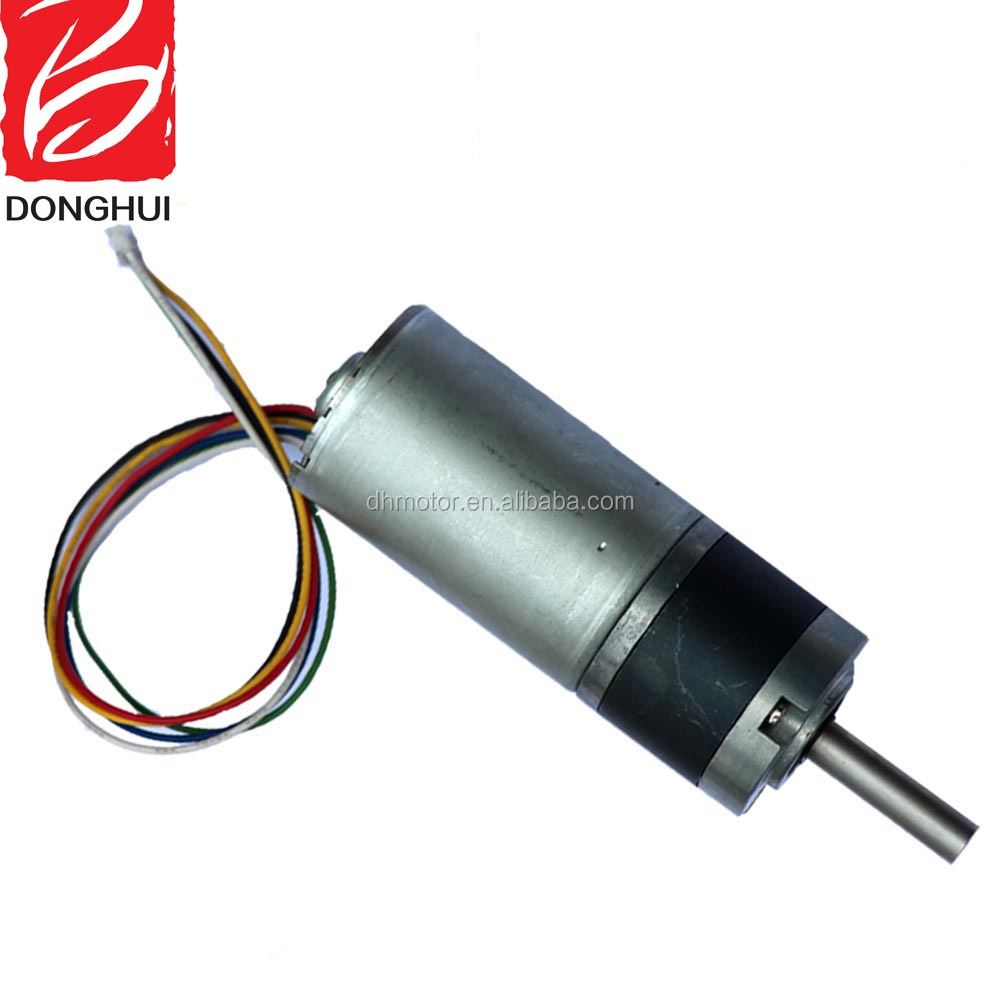

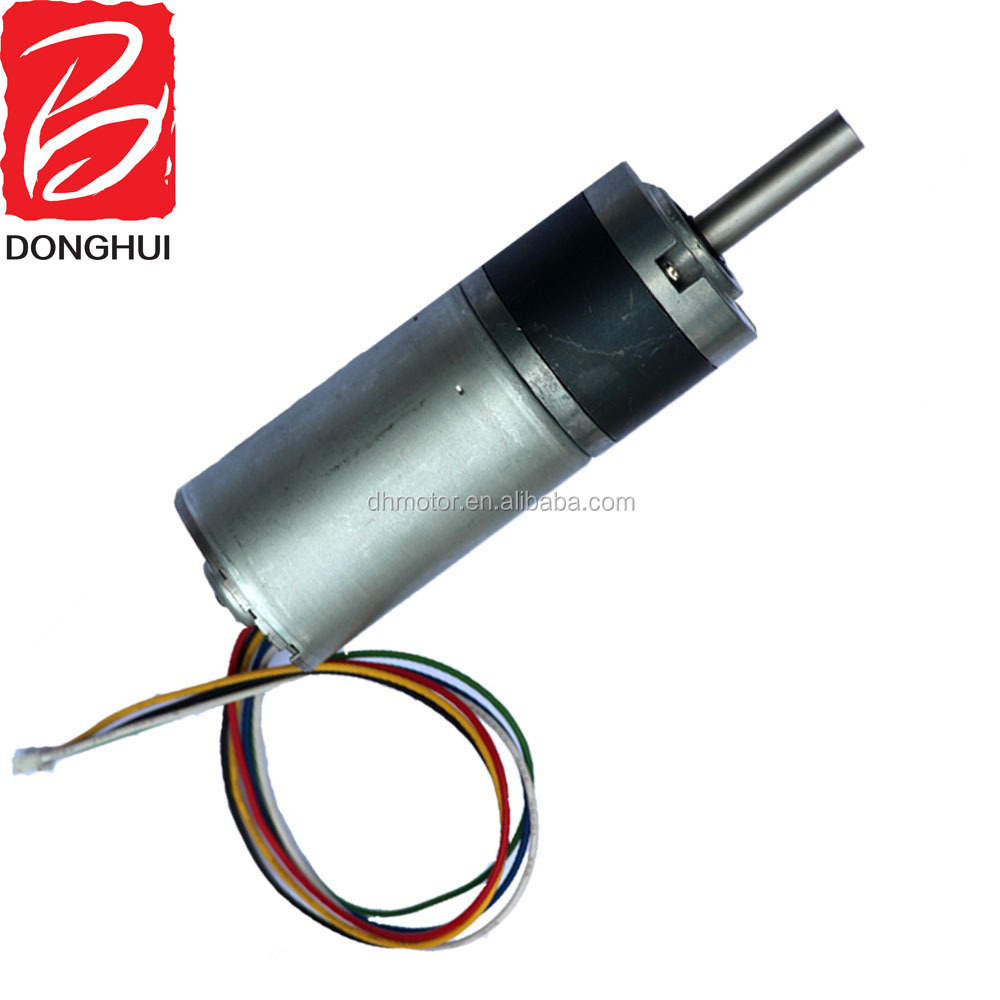

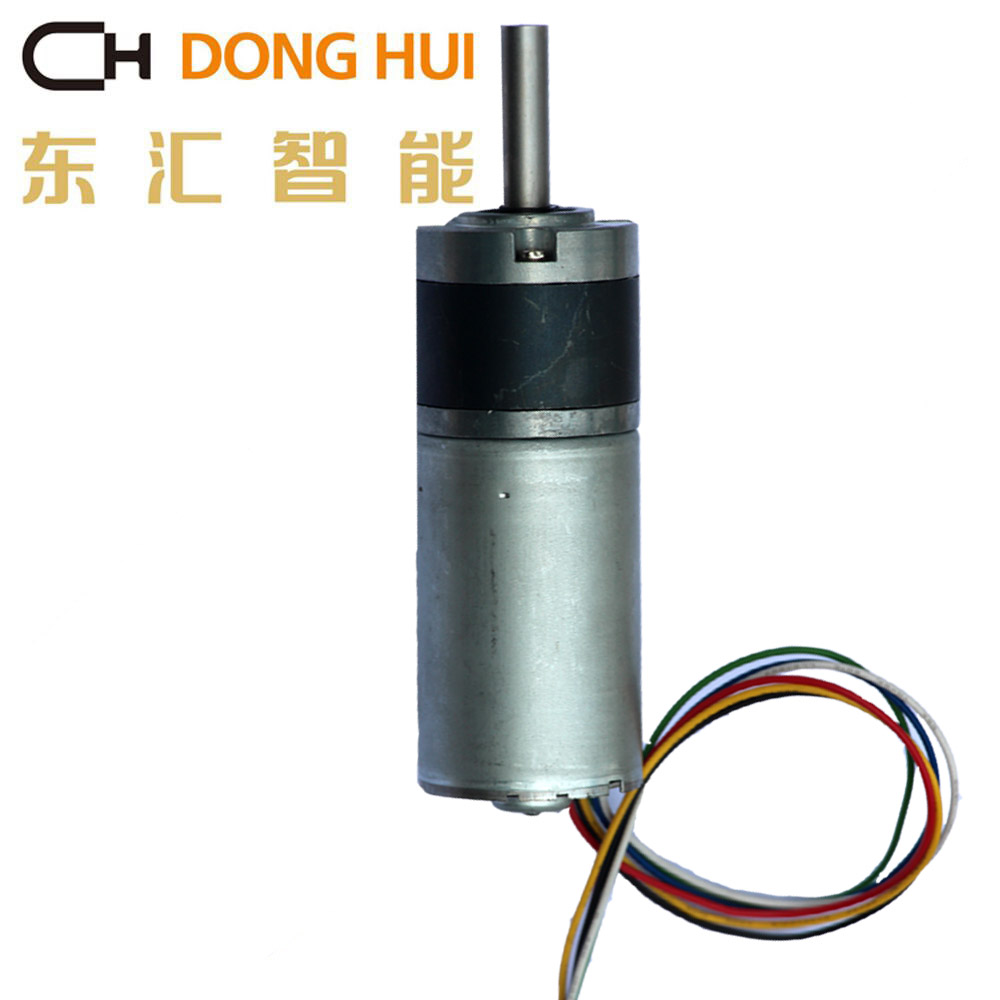

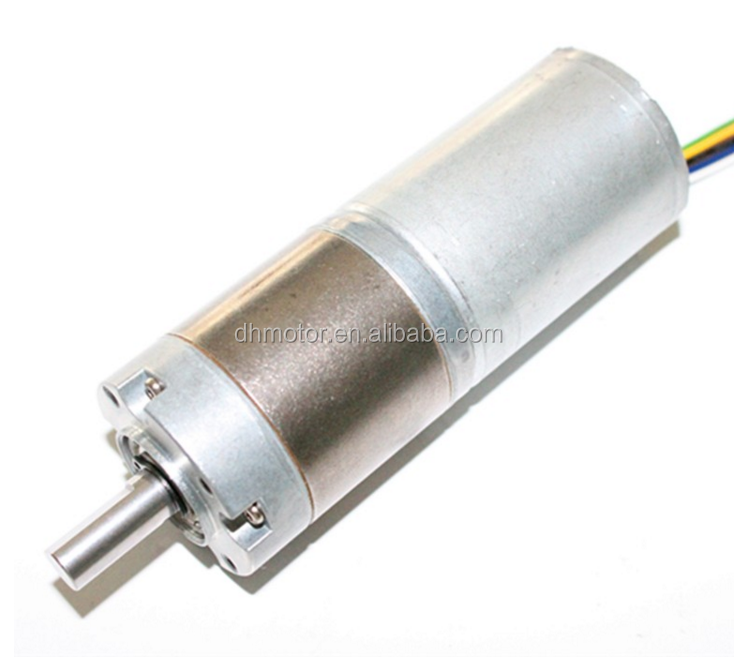

22mm 24mm 28mm 32mm 36mm 12v Brushless Planetary Gear Motor, 12v Brushless Gear Motor with Planetary Gear Box

1 / 5

22mm 24mm 28mm 32mm 36mm 12v Brushless Planetary Gear Motor, 12v Brushless Gear Motor with Planetary Gear Box

Send Inquiry

Product Description

Model Number:	DBL2430-GB	Type:	Micro Motor
Usage:	Fan, Home Appliance	Certification:	ROHS
Commutation:	Brushless	Construction:	Permanent Magnet
Voltage(V):	12V	Efficiency:	IE 1
No Load Speed:	9260rpm	No Load Current:	0.2A
Rated Load Speed:	6000rpm	Rated Load Torque:	9.8mNm
Output Power:	1W~10W	Shaft Dia:	2.0mm
Protect Feature:	Drip-proof	Application:	Air pump

Core Specifications & Features

DC motor, DC gear motor, DC brushless motor, OEM and provide motor product design

Compact Size: 24*30MM framework.
Performance: Long life, low noise, low EMI.
Control: CW & CCW, Signal function available.
Protection: Locked rotor protection, Stepless speed regulation.

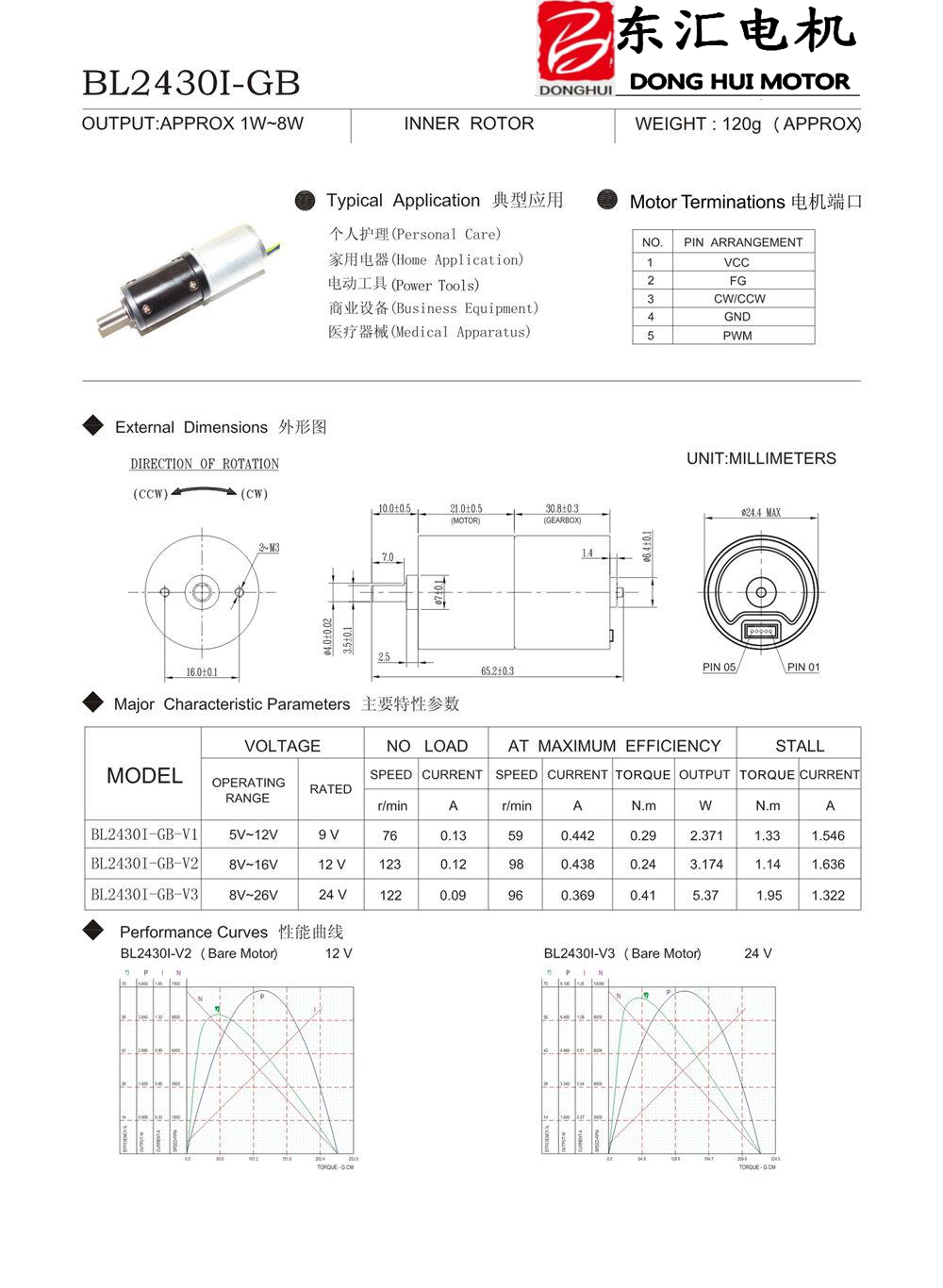

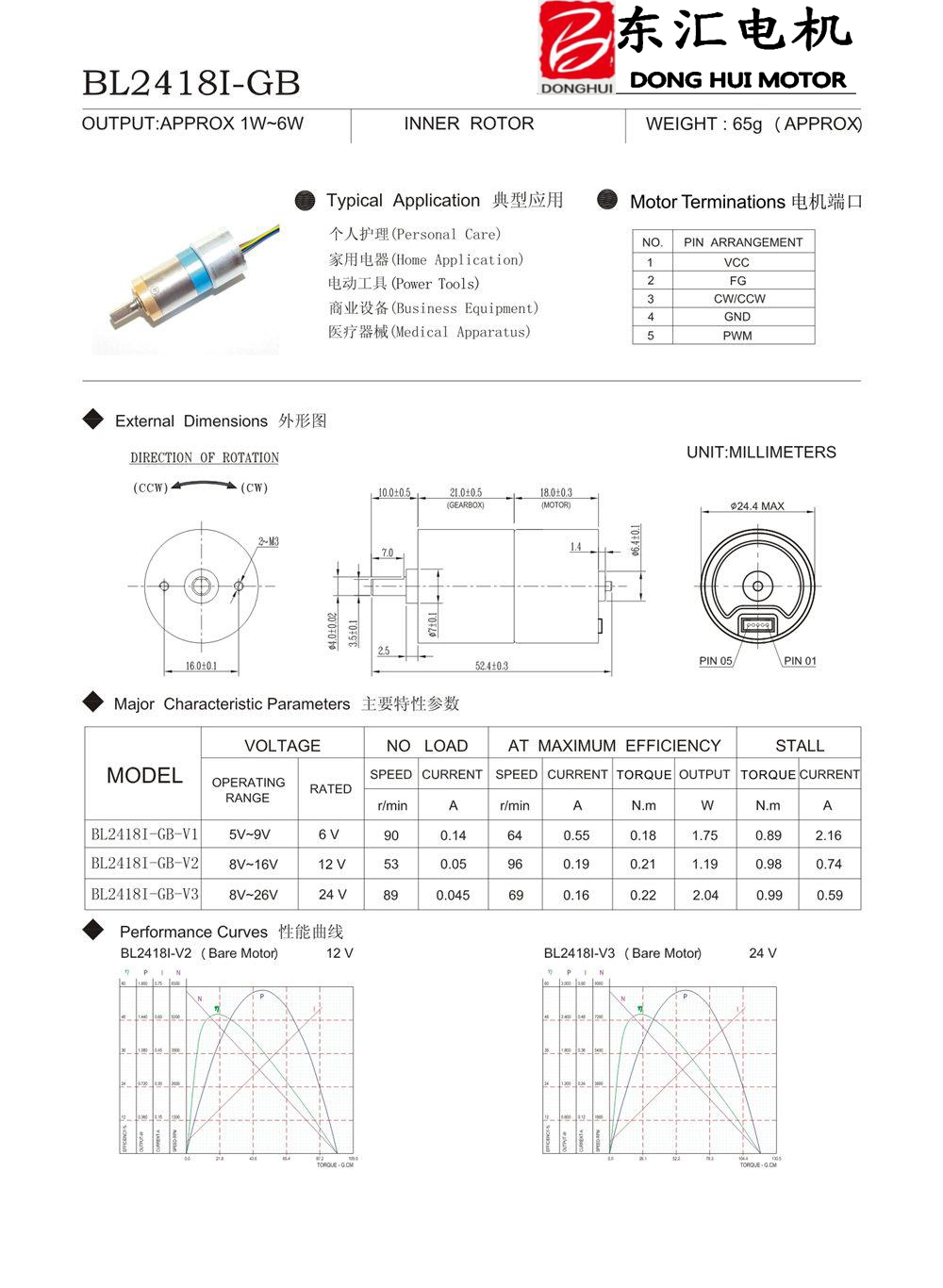

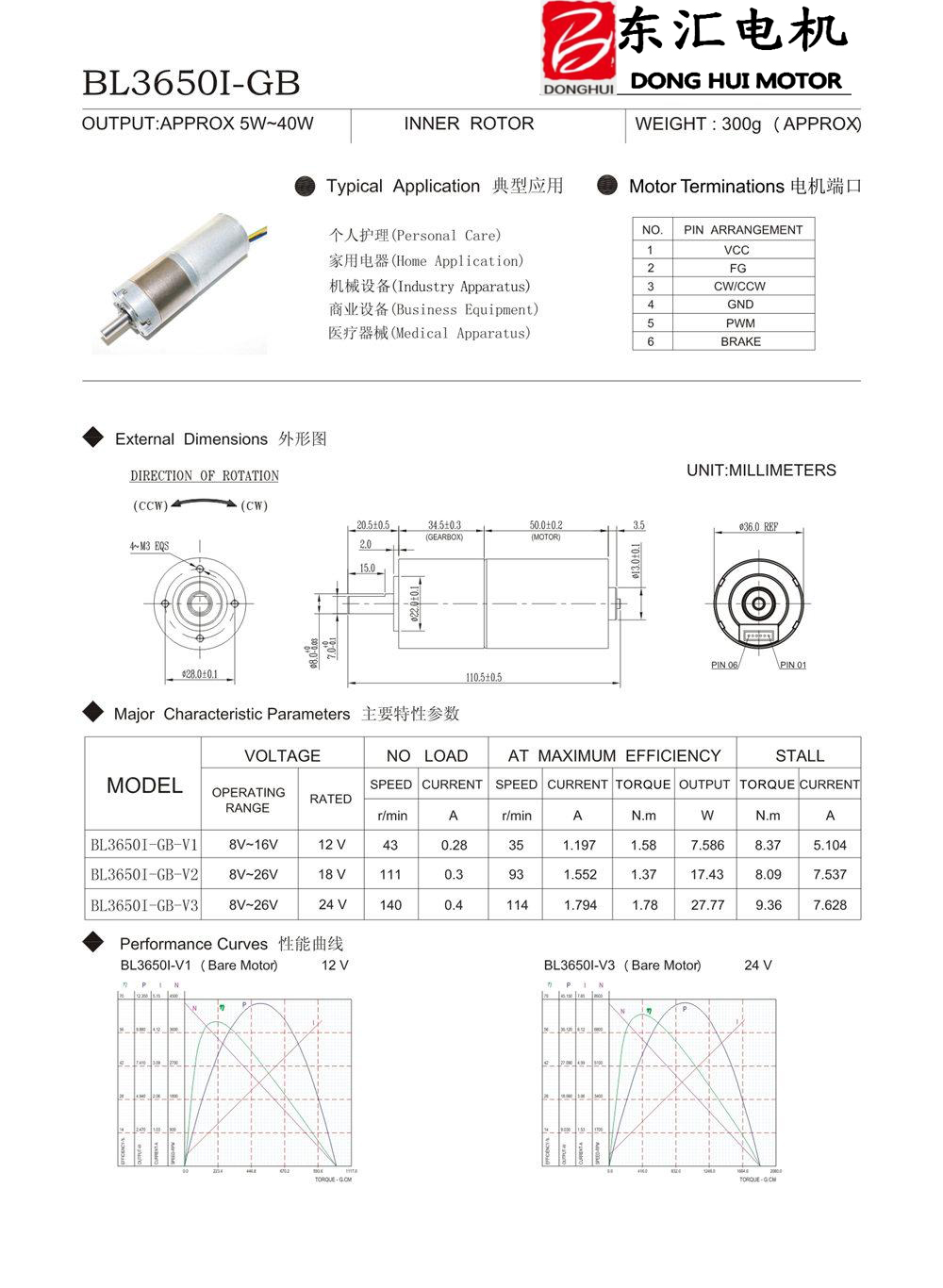

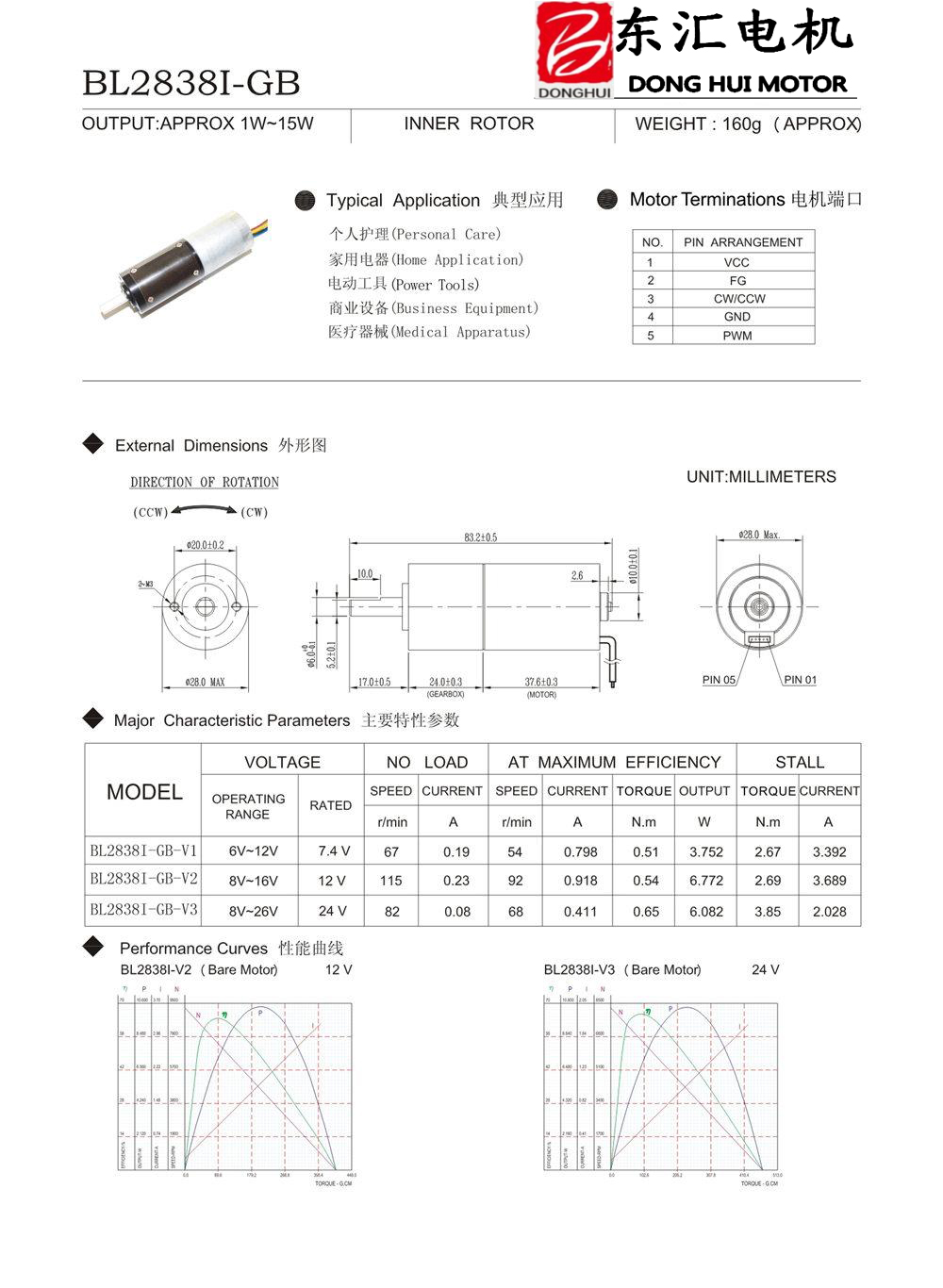

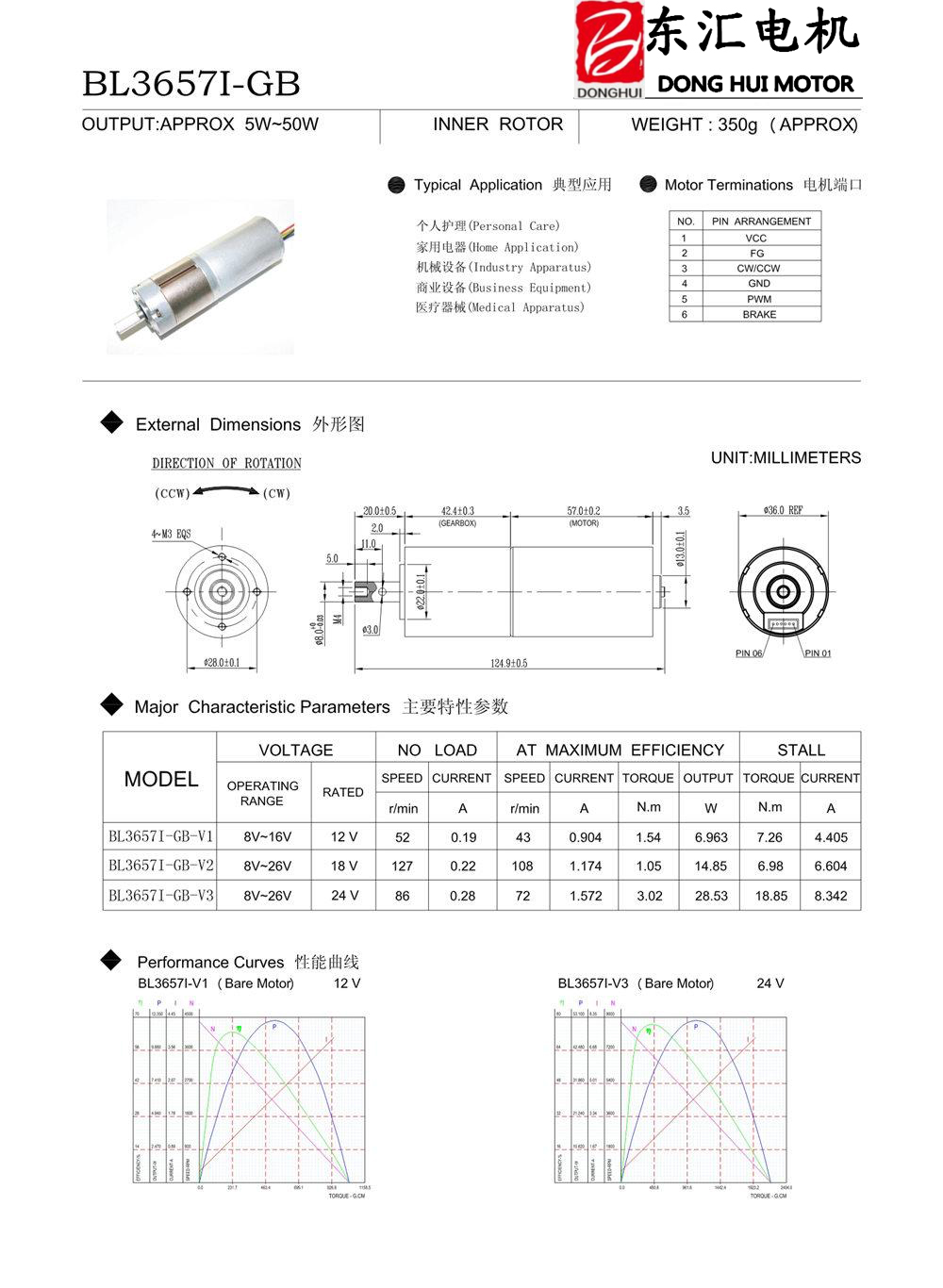

Detailed Specifications Sheets

Packaging & Shipping

Packaging Detail:	1. Export standard packing; 2. Factory standard packing; 3. Customizable upon request.
Delivery Detail:	15 days for samples, 25-30 days for batch orders.

Production Capabilities

Established in 2007, our facility is committed to the development and production of micro motors across 4 major series: Micro DC motor, DC gear motor, coreless motor, and brushless motor.

Main Products: Dia4~100mm Micro Motors, Auto DC motors, Vibration motors, and Gear Motors.
Voltage Range: 1.5V - 42V (AC rectify options for 110V/220V).
Speed Performance: 1 RPM to 30,000 RPM.
Torque Range: Stall torque from 1g.cm up to 30kg.cm.
Applications: Consumer electronics, household appliances, office automation, medical equipment, and automotive fields.

Frequently Asked Questions

What is the standard lead time for orders?

Sample orders typically take 15 days, while batch production for large orders requires approximately 25-30 days.

Can the motor shaft be customized?

Yes, the shaft length and specific configurations can be fully customized according to your specific project requirements.

What are the main advantages of your brushless motors?

Our brushless motors offer long operational life, low noise, low EMI, and include features like locked rotor protection and stepless speed regulation.

What certifications do your motor products hold?

Our products are manufactured to high standards and carry ROHS certification to ensure environmental safety and compliance.

Do you provide OEM/ODM services?

Yes, we provide comprehensive OEM services and can assist in the professional design and development of motor products tailored to your needs.

What is the voltage range available for these motors?

We support a wide DC voltage range from 1.5V up to 42V, with AC rectification available for standard household voltages like 110V and 220V.
