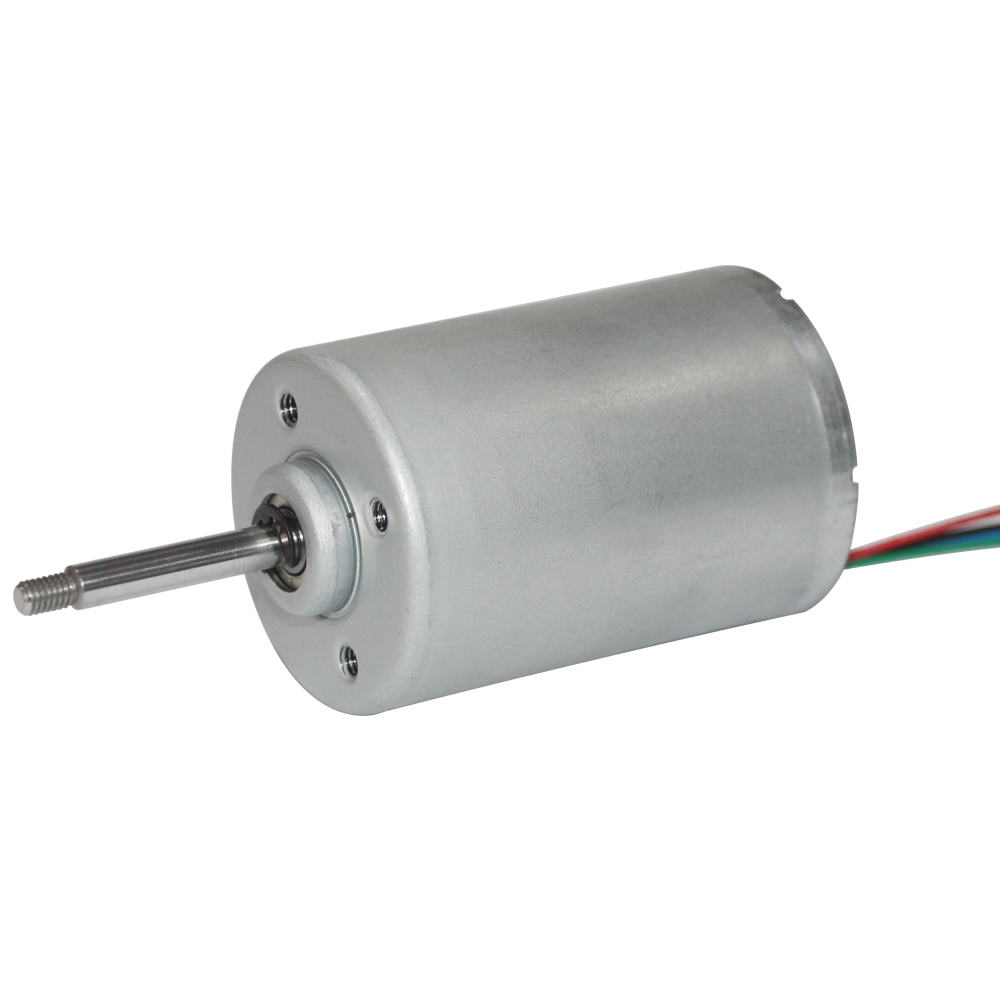

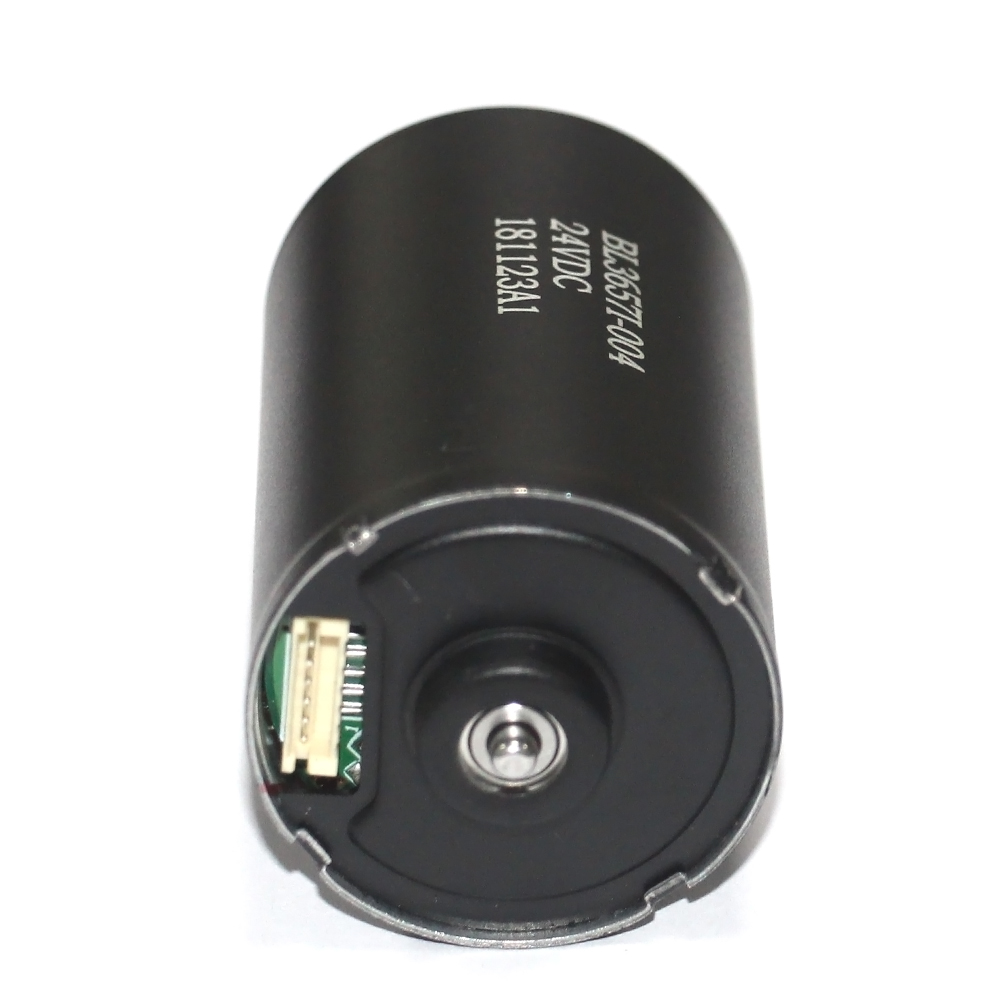

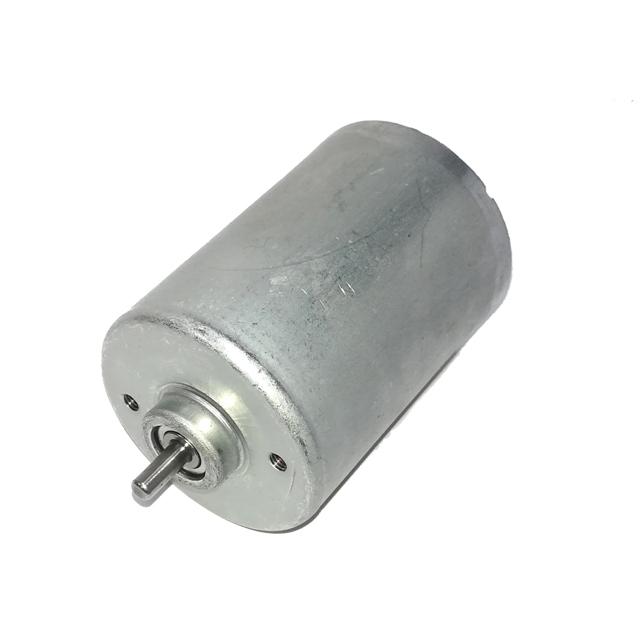

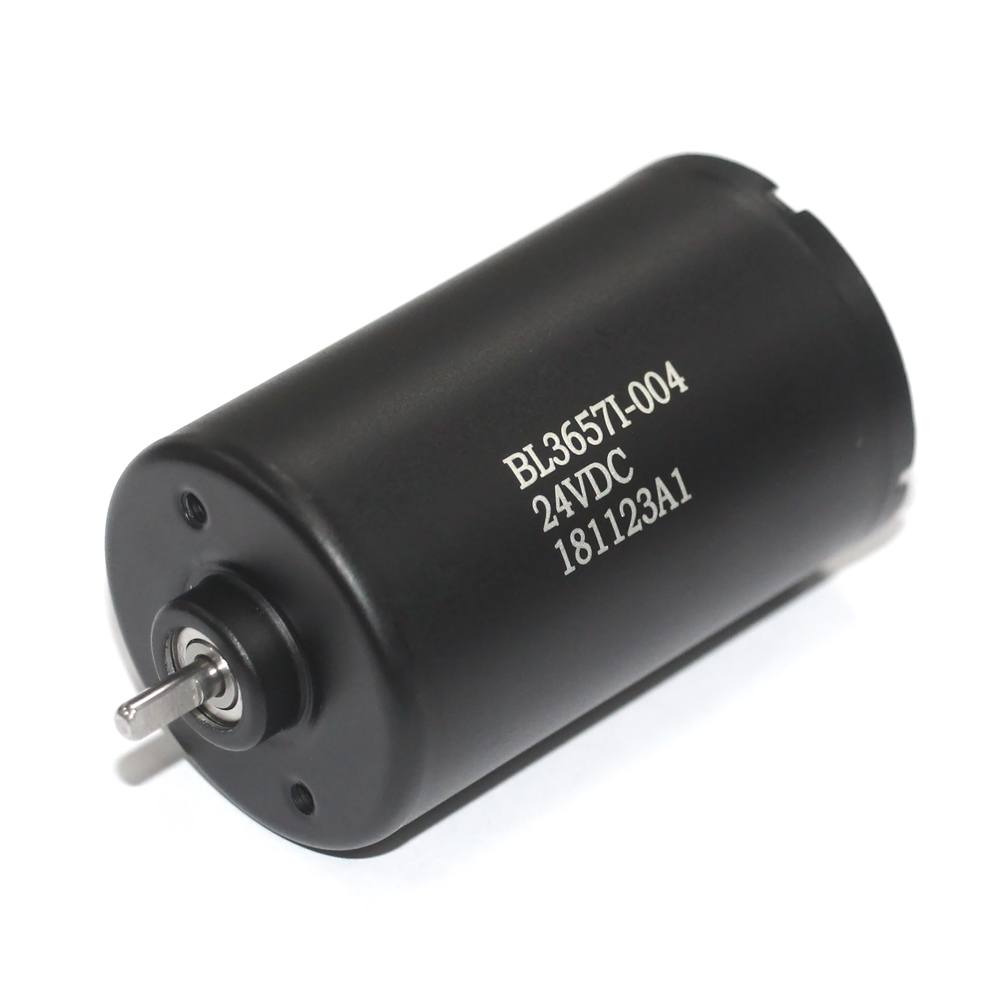

| Model Number |
BL3650I |
Usage |
Fan, Home Appliance |
| Certification |
ROHS |
Type |
Micro Motor |
| Torque |
25mNm |
Construction |
Permanent Magnet |
| Commutation |
Brushless |
Protect Feature |
Drip-proof |
| Speed(RPM) |
3500rpm no load |
Continuous Current(A) |
0.18A no load |
| Output Power |
1W~100W |
Voltage(V) |
12V |
| Efficiency |
IE 1 |
Rated load speed |
3000rpm |
| Rated load torque |
25mNm |
Rated load current |
0.58A |
| Starting torque |
162mnm |
Starting current |
2.8A |
| Motor Length |
50±0.3mm |
Shaft dia |
4.0mm |
| Shaft length |
Can be customized |
Application |
Air pump |
| Packaging Detail |
1. Export standard packing; 2. Factory standard packing; 3. Packaging can be customized according to request. |
| Delivery Detail |
15 days for samples, 25-30 days for batch orders. |
DC motor, DC gear motor, DC brushless motor, OEM and motor product design.
Key Features
- Long Life & Performance: High durability with low noise and low EMI interference.
- Advanced Control: CW & CCW rotation support with Signal function available.
- Safety Systems: Equipped with locked rotor protection and stepless speed regulation.
- Versatile Sizes: Available in 24mm, 28mm, 36mm, and 42mm diameters.
- Power Options: Supports 10w, 15w, 24w, 30w, 50w, 100w, 150w configurations.
🏢
Capabilities & Experience
Expertise in the development and production of micro motors across four major series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.
- Main Products: Dia 4~100mm DC Micro Motors, Auto motors, Coreless Brushless motors, Vibration motors, and Spur Gear motors.
- Size Range: Diameters from 4mm to 100mm.
- Voltage Range: DC 1.5V - 42V; AC rectify options for 100V, 110V, 220V, 230V, 240V.
- Speed & Torque: Speeds from 1 RPM to 30,000 RPM; Stall torque from 1g.cm to 30kg.cm.
- Global Applications: Widely used in household appliances, power tools, precision instruments, medical equipment, automotive, and office automation.
❓
Frequently Asked Questions
What are the primary applications for this brushless DC motor?
This motor is ideal for high-efficiency fans, home appliances, air pumps, and medical equipment requiring long life and low noise.
Is it possible to customize the motor shaft?
Yes, the shaft length and specific configurations can be fully customized according to your technical requirements.
What is the standard lead time for orders?
Samples typically take 15 days, while batch production for large orders generally ranges from 25 to 30 days.
Does the motor include protective features?
Yes, it features a drip-proof construction and locked rotor protection to ensure safety and durability during operation.
What voltage and power ranges do you support?
We support a wide DC voltage range from 1.5V to 42V, with output power options ranging from 1W up to 150W.
Does the motor support speed control?
Yes, the motor is designed for stepless speed regulation and supports both CW (Clockwise) and CCW (Counter-Clockwise) rotation functions.
