Vortex Motor
Vortex Motor

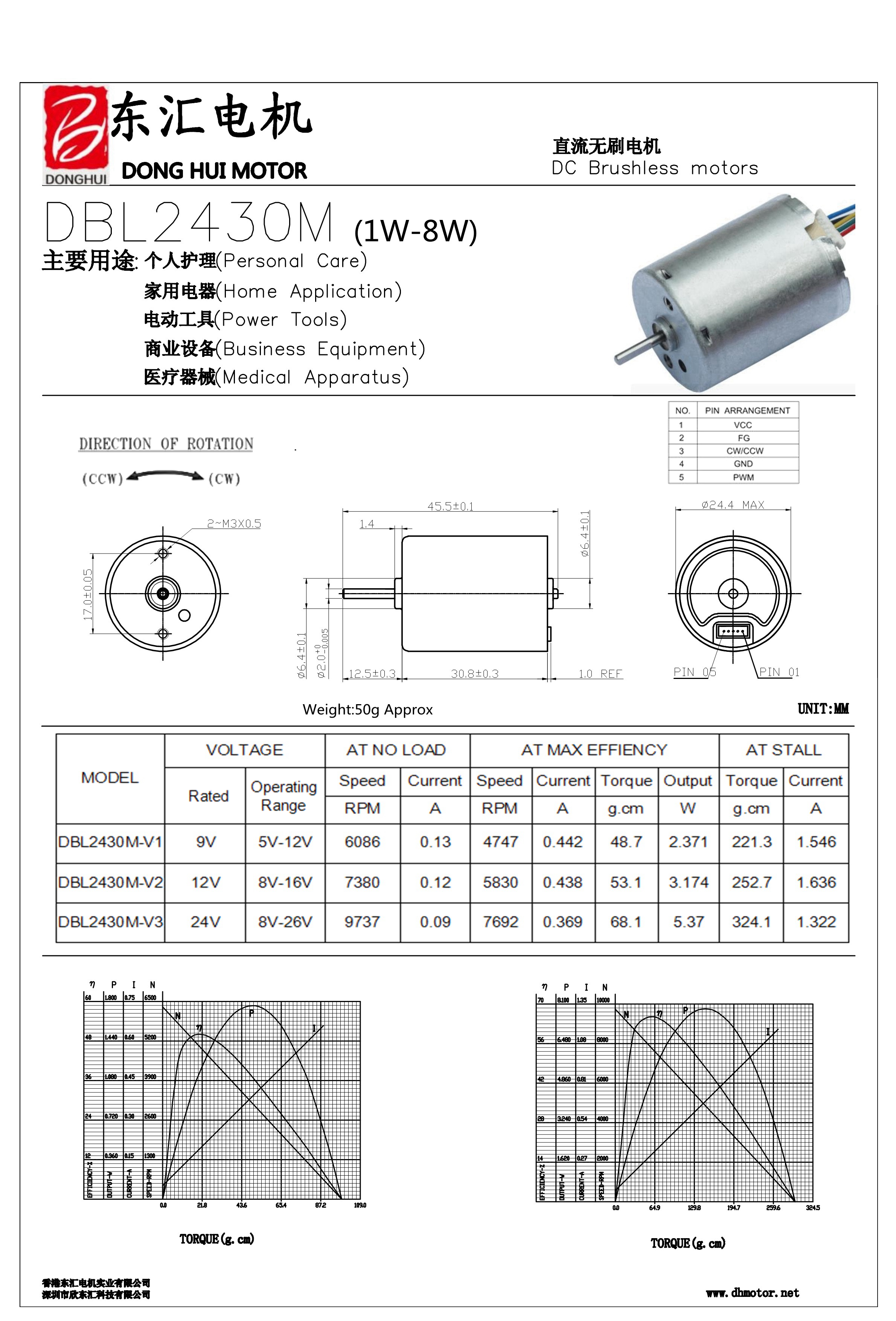

| Model Number | DB2430 | Type | Micro Motor |
| Usage | Fan, Home Appliance | Certification | ROHS |
| Commutation | Brushless | Construction | Permanent Magnet |
| Voltage (V) | 12V | Torque | 9.8mNm |
| Speed (RPM) | 9260rpm no load | Output Power | 1W ~ 10W |
| Rated Load Speed | 6000rpm | Rated Load Current | 0.62A |
| Shaft Diameter | 2.0mm | Protect Feature | Drip-proof |
| Application | Air pump | Motor Length | 30.8±0.3mm |

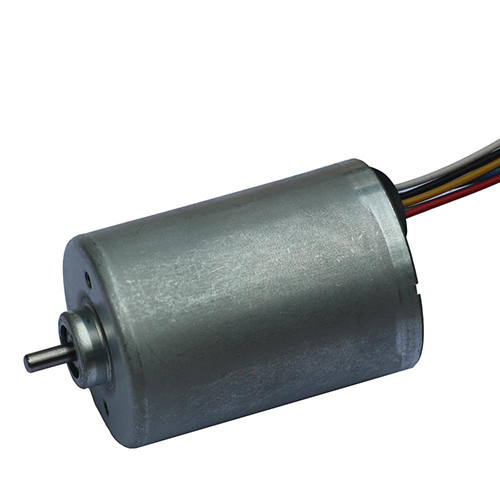

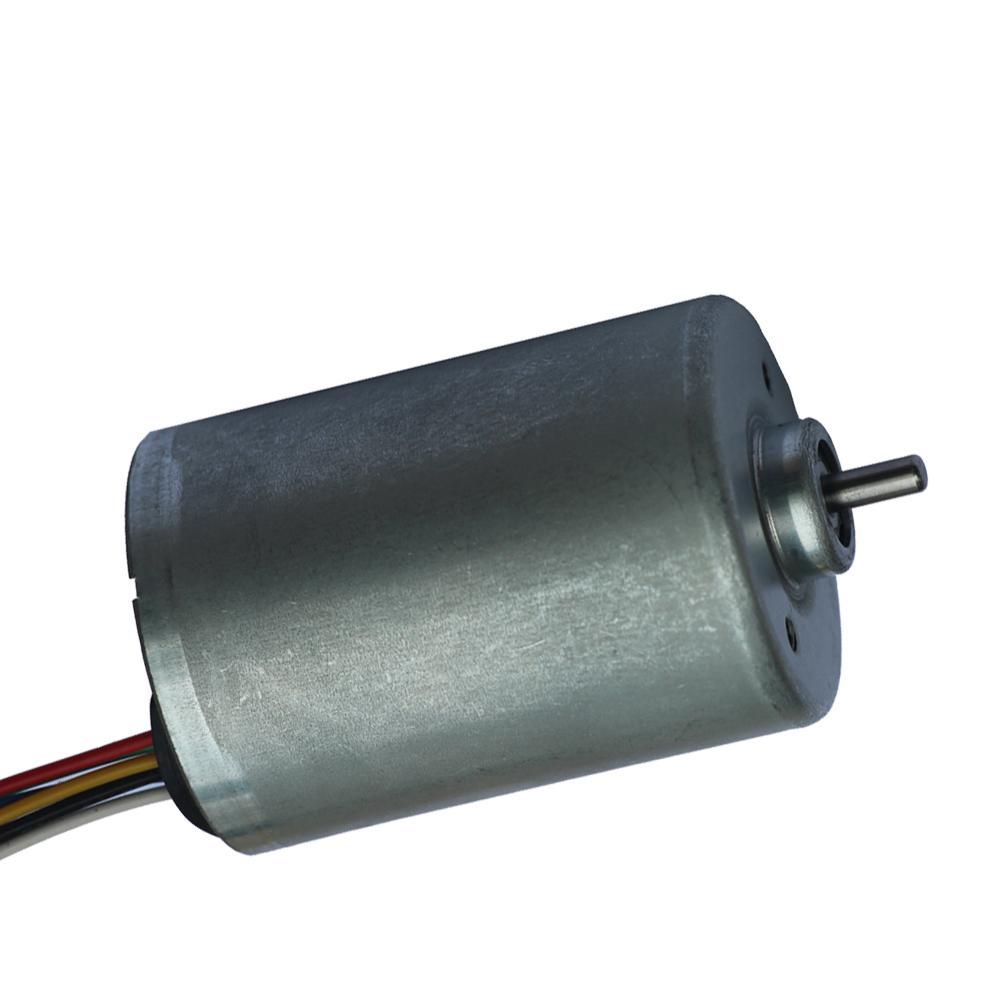

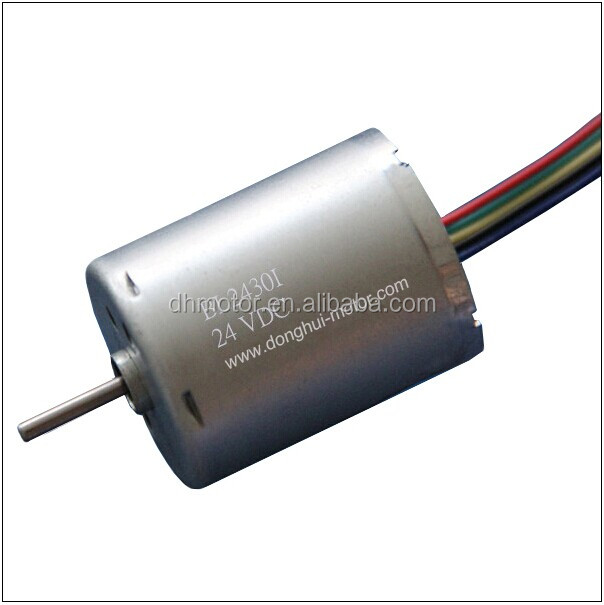

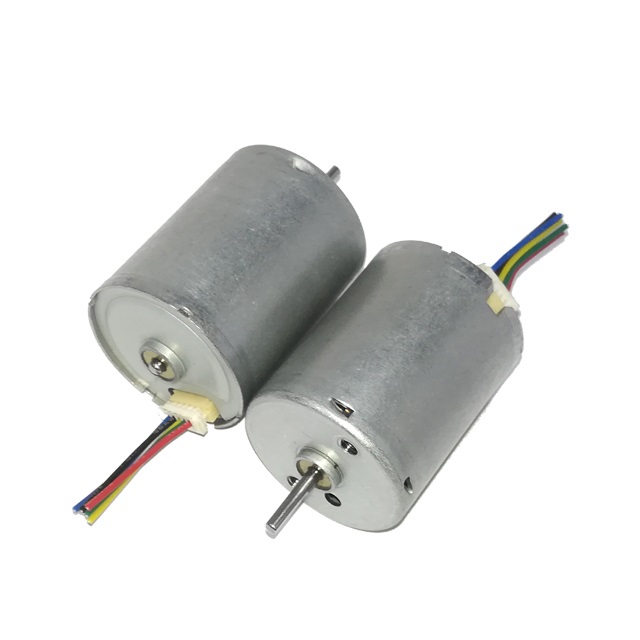

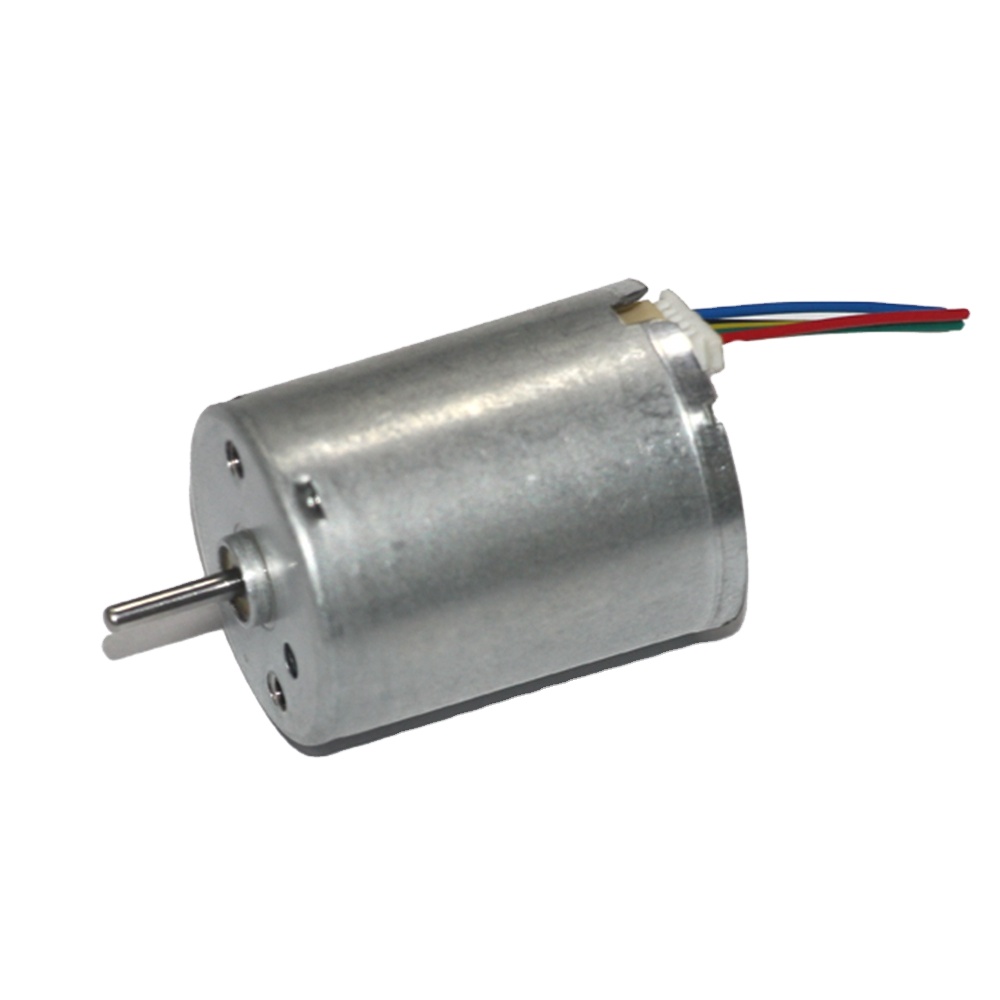

24mm 2430 motor 12v bldc electric fan motor, long life 12v bldc motor for fan
Our commitment to development and production covers four major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. These are widely utilized in consumer electronics, electric toys, household appliances, office automation, medical equipment, power tools, and automotive fields.
| Packaging Detail | 1. Export standard packing; 2. Factory standard packing; 3. Customized according to customer's request. |
| Delivery Detail | 15 days for samples, 25-30 days for batch orders. |
