28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
1 / 4
28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM

28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM

Send Inquiry

Product Description

Product Description

Place of Origin:Guangdong China (Mainland)
Brand Name:OEM / Custom
Model Number:DB2838
Usage:Fan, Home Appliance
Certification:ROHS
Type:Micro Motor
Torque:17.5mNm
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:Drip-proof
Speed(RPM):4430rpm no load
Continuous Current(A):0.08A no load
Output Power:1W~10W
Voltage(V):12V
Efficiency:IE 1
Rated load speed:3000rpm
Rated load torque:17.5mNm
Rated load current:0.73A
Starting torque:56.8mnm
Starting current:2.0A
The length of the motor:37.6±0.3mm
Shaft dia:2.3mm
Shaft length:Can be customized
Application:Air pump

Packaging & Shipping

Packaging Detail:

1. Export standard packing; 2. Standard packing; 3. Packaging can be customized according to customer's request.

Delivery Detail:

15 days for samples, 25-30 DAYS for batch production.

Our Services

dc motor, dc gear motor, dc brushless motor, OEM and provide motor product design

28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
Specifications

28mm 2838 12v brushless dc motor 1000rpm for electric boat, 12v boat dc brushless motor 2838 motor

1. size: 28*38MM

  • Long life, low noise, low EMI;
  • CW & CCW, Signal function available;
  • Locked rotor protection, Stepless speed regulation.

28mm 12v brushless dc motor 1000rpm for boat

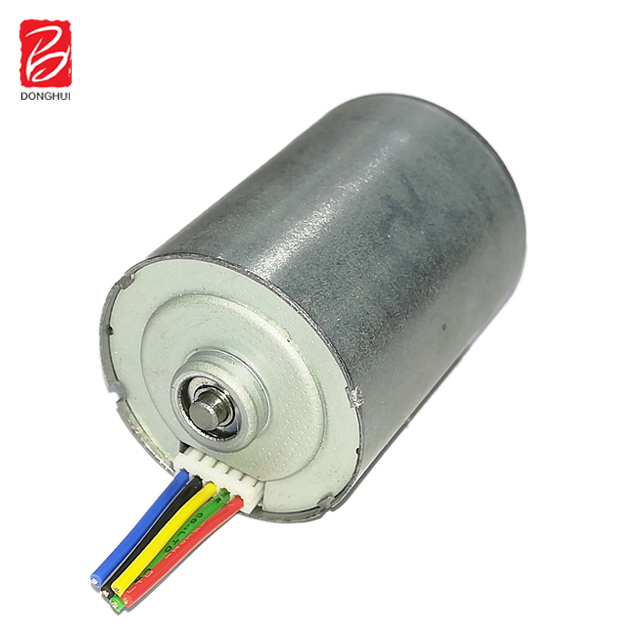

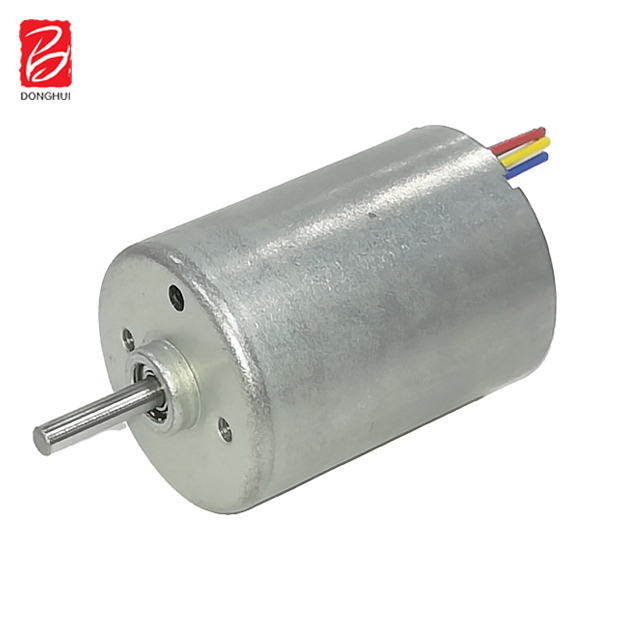

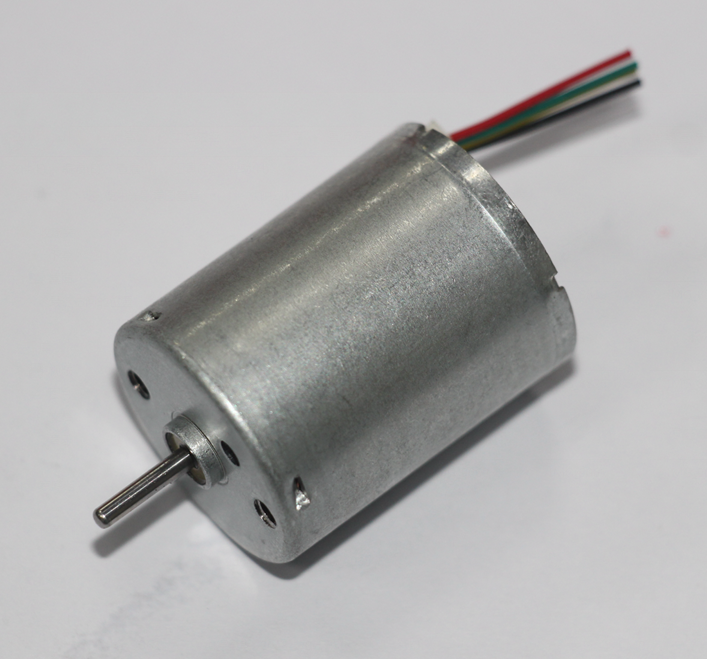

MOTOR PHOTOS:

28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM
28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM

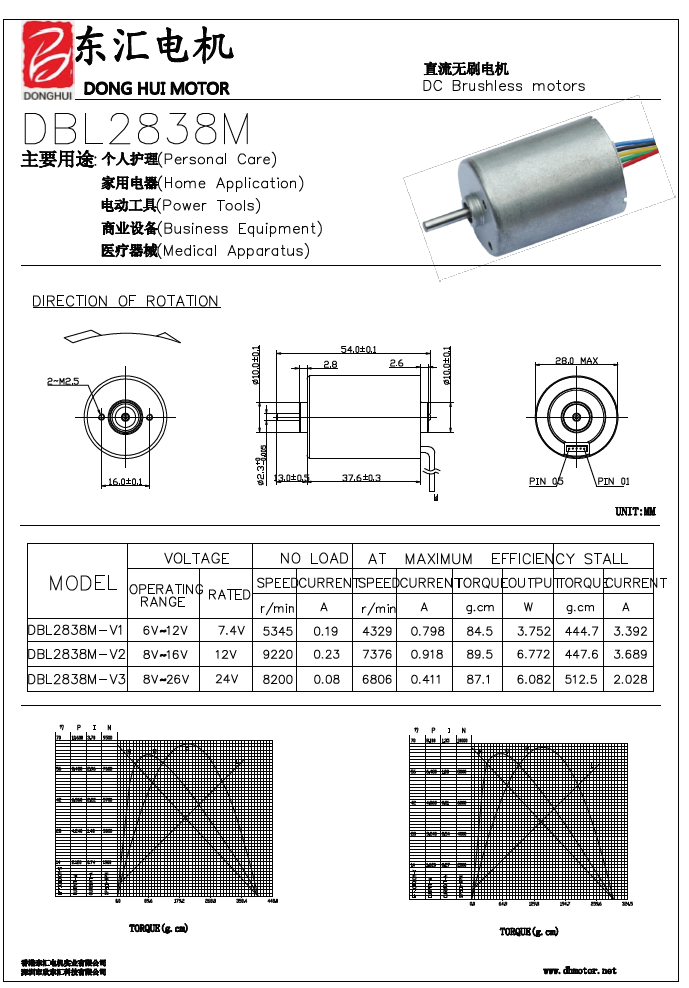

MOTOR SPECS:

28mm BL2838 12V Brushless DC Motor with Permanent Magnet for Electric Boat and Home Appliance 6000 RPM

Manufacturing Capabilities

Manufacturing Facility 1
Manufacturing Facility 2
Manufacturing Facility 3

Since established in 2003, there has been a strong commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.

  • Main Products: Dia4~100mm DC Micro Motor, Auto DC motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor, etc.
  • Products Size Range: Diameter: 4-100mm
  • DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V, etc.)
  • Speed Range: 1 RPM - 30,000 RPM
  • Stall Torque: 1g.cm - 30kg.cm
  • Application Areas: Home appliances, Power Tools, Toys & Models, Precision Instruments, Office equipment, Personal care products, Automotive, Audio & Visual equipment, etc.
Frequently Asked Questions (FAQ)
What are the primary applications of the DB2838 brushless DC motor?
The DB2838 motor is highly versatile and primarily used in household appliances, fans, air pumps, electric boat applications, precision instruments, and office automation equipment.
Can the shaft length and motor specifications be customized?
Yes, we provide full customization options for the shaft length and can adjust other parameters to match your specific application requirements.
What protection features does this brushless motor have?
This motor is built with locked rotor protection, drip-proof design, and features stepless speed regulation to ensure safe and durable operation.
What is the standard delivery time for orders?
The delivery time is typically 15 days for samples and 25 to 30 days for bulk production batch orders.
What certifications do your motor products comply with?
All our micro brushless motors are certified under the ROHS standard, ensuring eco-friendly and safe material compliance.
