Product Description

Product Description
Quick Details
Place of Origin Guangdong China (Mainland)
Model Number FC-280SC-20150
Usage Car, Scanner
Certification ROHS
Type Micro Motor
Torque 335G.CM AT STALL
Construction Permanent Magnet
Commutation Brush
Protect Feature Closed
Speed (RPM) 11800rpm At No load Speed
Continuous Current (A) 0.1-5A
Output Power 4.5W
Voltage (V) 12V
Efficiency IE 1
Bearing TBD
End Cap Plastic End Cap
Stator and Slots 2-Pole stator and 3-Slot armature
Brush Type Carbon brushes
Bearing Type Oil-impregnated bearing
Rotation Reversible
Packaging & Shipping
  • Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
  • Delivery Detail: Within 30 days
Our Services
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
Specifications: FC-280 12v dc motor electric for car
  • 12V car door lock actuator motor fc280
  • 1. ROHS Certification
  • 2. Permanent Magnet
  • 3. Plastic End Cap
  • 4. Low noise and long life

Application: Door lock Actuator, Automotive Product

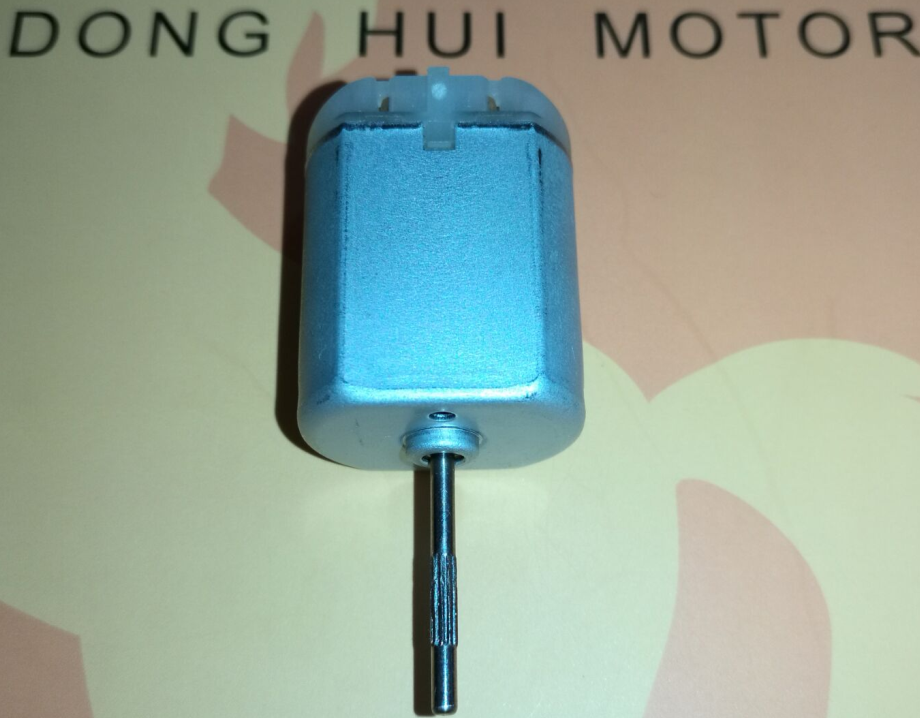

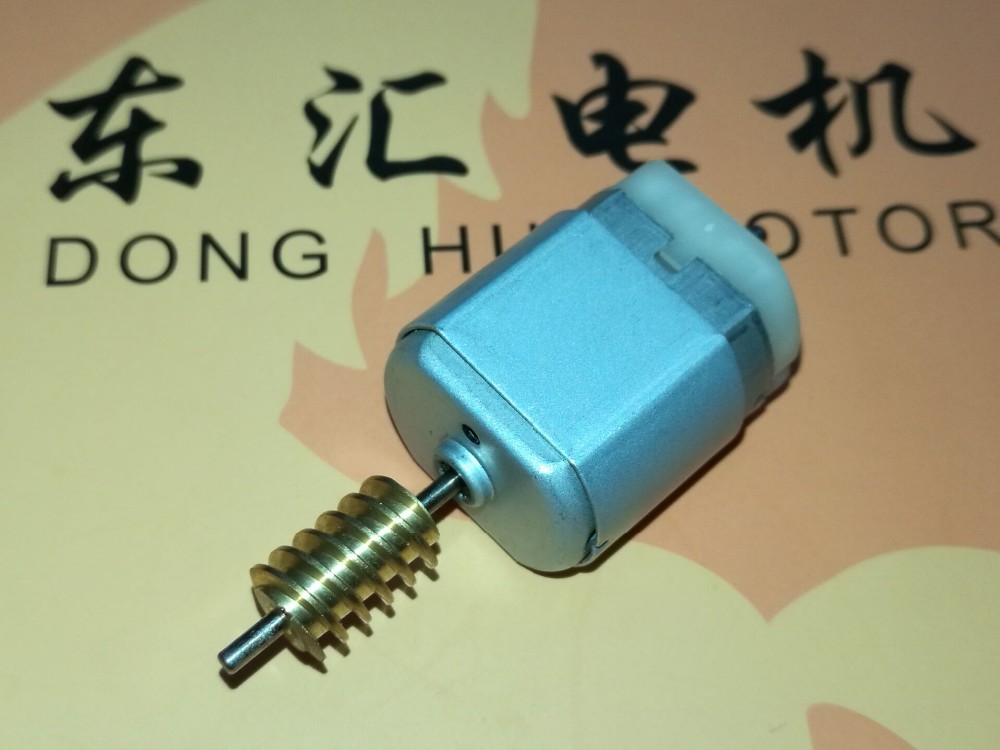

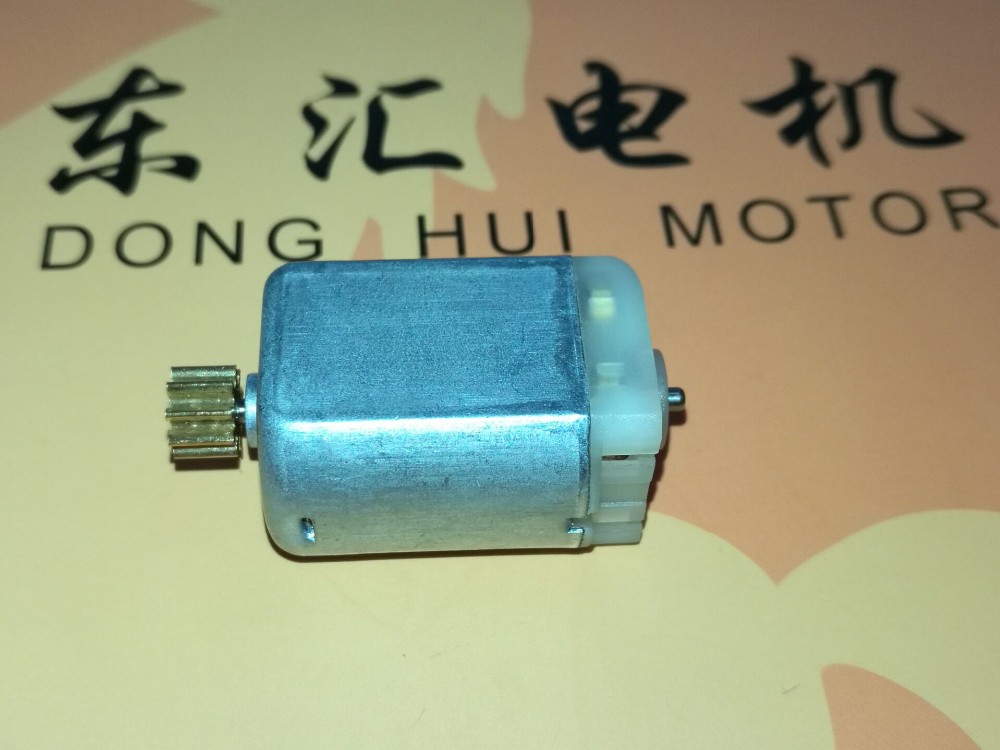

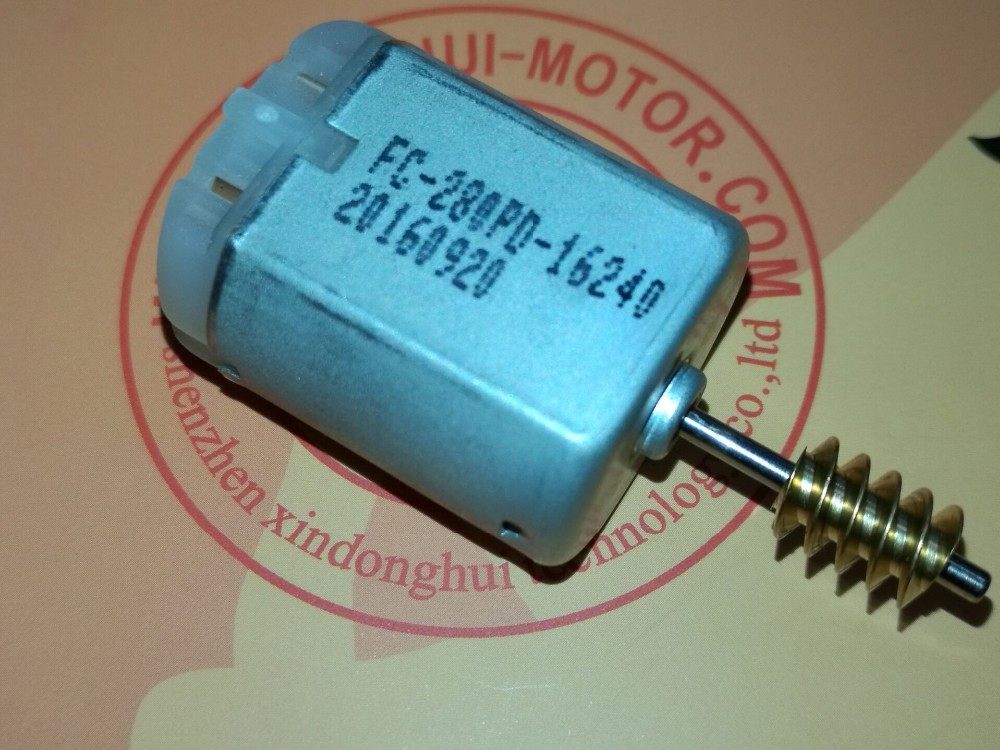

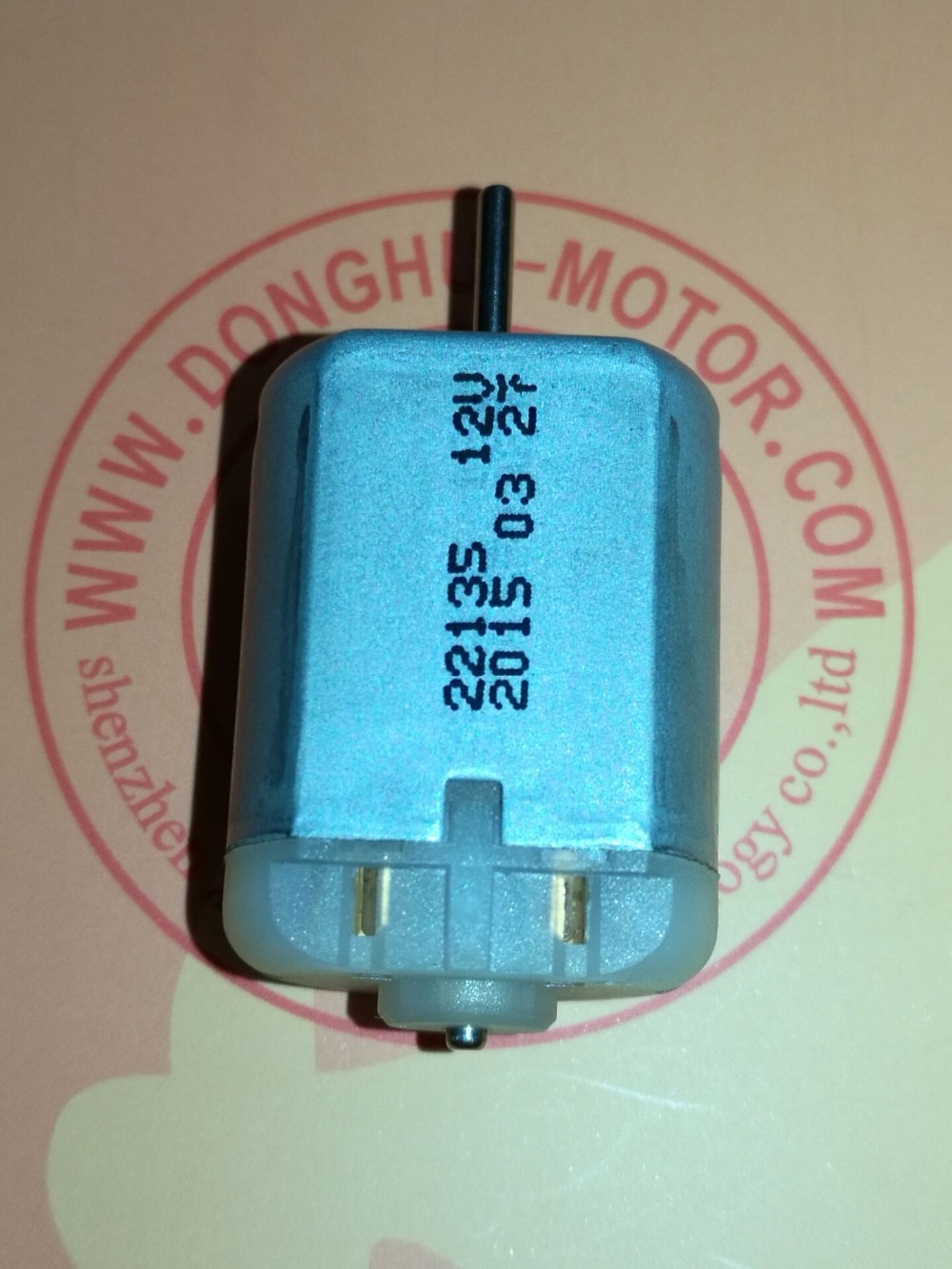

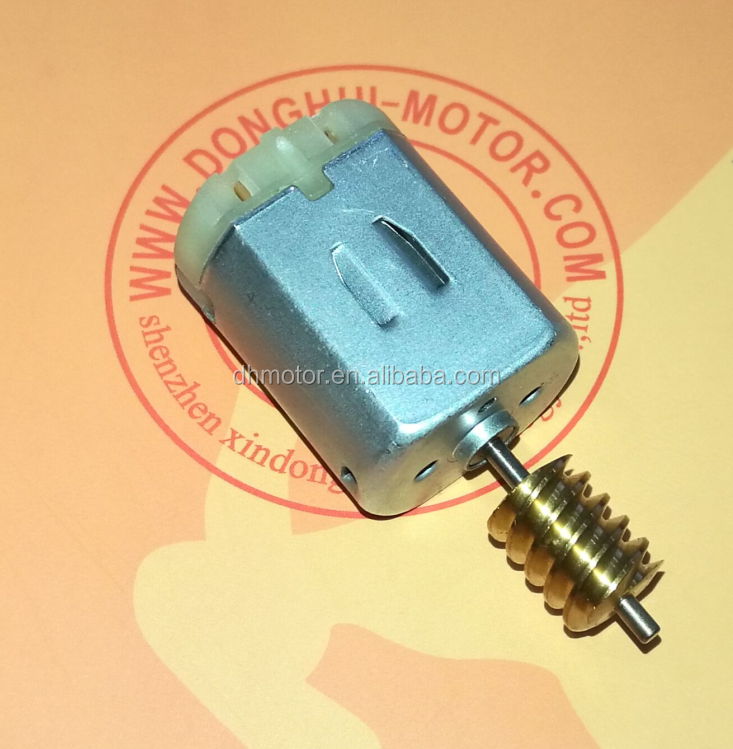

Photo: 12v dc car door lock motor fc280
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
Outline Drawing and basic parameters
12V FC 280 DC Electric Motor FC-280SC-22125 for Cars with Permanent Magnet Construction and Brush Commutation
Production Capabilities
Production Capabilities
Production Line

Since established in 2003, commitment to the development and production of micro motors has remained strong, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More:

  • Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
  • Products Size Range: Diameter: 4-100mm
  • DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
  • Speed Range: 1 RPM - 30,000RPM
  • Stall Torque: 1g.cm - 30kg.cm
  • Application Fields: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.
Frequently Asked Questions
What is the primary application of the FC-280SC DC micro motor?
The FC-280SC micro motor is primarily designed for automotive products, specifically as a 12V car door lock actuator motor, and it is also commonly used in scanners.
What are the key technical specifications of this motor?
It features a nominal voltage of 12V, a speed of 11,800 RPM at no-load, a stall torque of 335G.CM, and an output power of 4.5W.
What certifications and environmental standards does the motor comply with?
The motor is fully certified with ROHS compliance, ensuring that materials used align with safety and environmental standards.
What are the design characteristics of the motor's core structure?
The motor is built with permanent magnet construction, a 2-pole stator, a 3-slot armature, carbon brushes, and a plastic end cap. It is fully reversible.
How is this product packaged, and what is the typical delivery timeframe?
The standard packaging quantity is 500 units per carton, with overall carton dimensions of 39x29x46 cm. Orders are typically delivered within 30 days.
