FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
1 / 5
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor
FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor

FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor

Send Inquiry

Product Description

Product Description

Place of Origin
Guangdong China (Mainland)
Model Number
fc 280sc 18180
Usage
Car, Scanner
Certification
ROHS
Type
Micro Motor
Torque
291G.CM
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Closed
Speed(RPM)
9600rpm (At No load Speed)
Continuous Current
0.1-5A
Output Power
1-6W
Voltage(V)
12V
Efficiency
IE 1
Bearing
TBD
End Cap
Plastic End Cap
Stator and Slots
2-Pole stator and 3-Slot armature
Brush Type
Carbon brushes
Bearing Type
Oil-impregnated bearing
Rotation
Reversible

Packaging & Shipping

Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail: Within 30 days

Specifications & Details

FC-280 12v Dc Motor Car Central Lock Motor for Door Lock Actuator Fc-280sc-18180, Fc 280sc 18180 Dc Motor

Key Specifications

12v dc motor for Door Lock Actuator fc-280sc-18180, fc 280sc 18180 dc motor

  • 12V Car DC Motor car lock actuator motor: 12v 9600rpm
  • ROHS Certification
  • Permanent Magnet
  • Plastic End Cap
  • Low noise and long life
  • Application: Door lock Actuator, Automotive Product

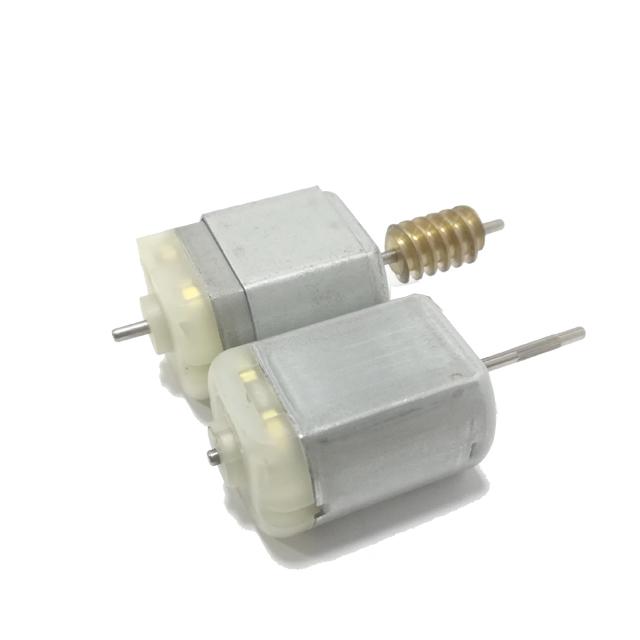

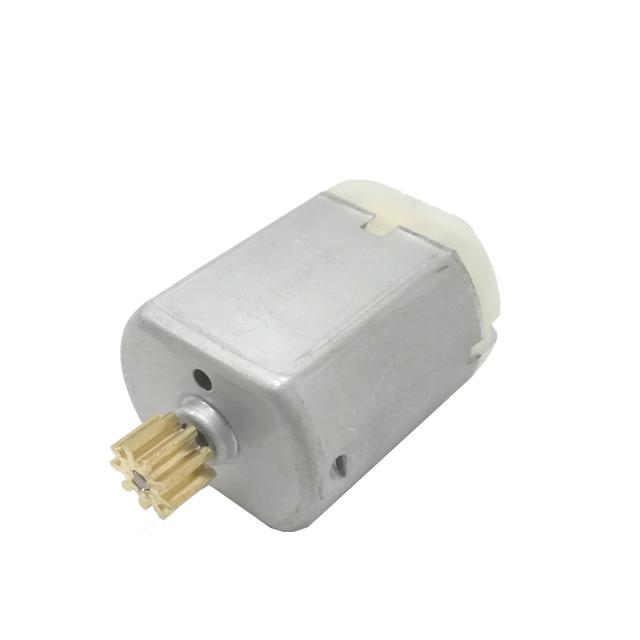

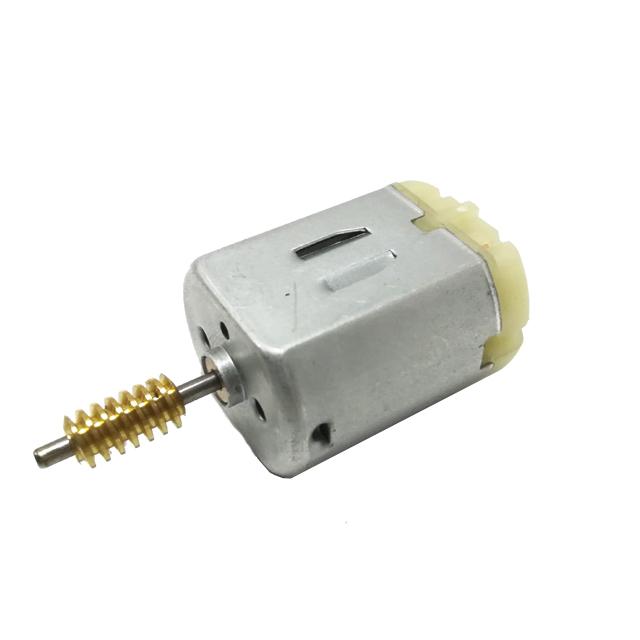

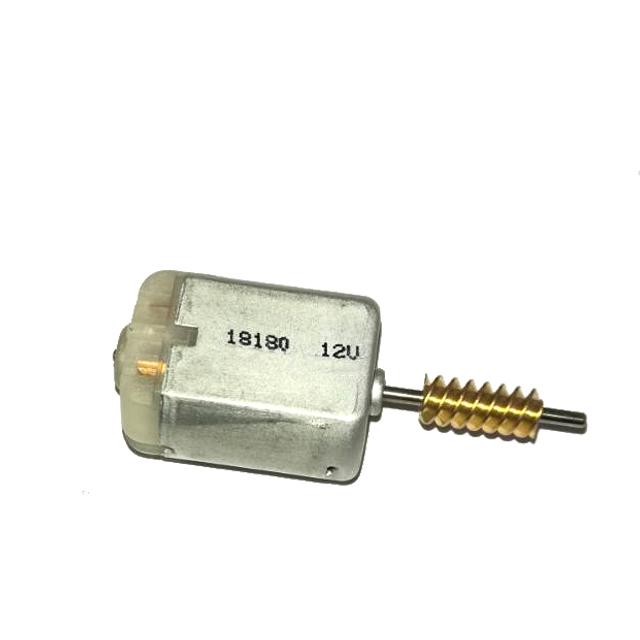

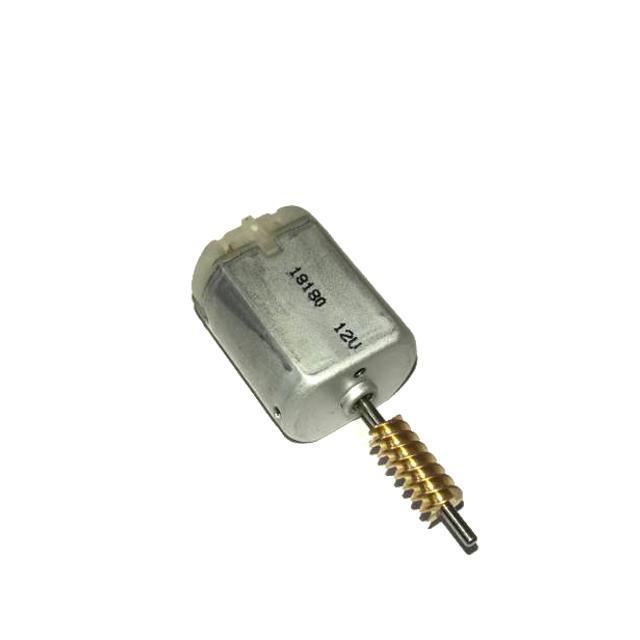

Product Photos: 12v dc car door lock motor fc 280sc 18180

FC-280 12v Dc Motor
FC-280 12v Dc Motor Details
FC-280 12v Dc Motor Specifications
FC-280 12v Dc Motor Dimensions

Outline Drawing and Basic Parameters (fc-280sc-18180)

FC-280 12v Dc Motor Outline Drawing

Production Capabilities

Production Facility Header
Production Facility

Since establishment in 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation equipment, medical equipment, power tools, automotive, and other fields.

  • Main Products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
  • Products Size Range: Diameter 4-100mm
  • DC Voltage Range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
  • Speed Range: 1 RPM - 30,000RPM
  • Stall Torque: 1g.cm - 30kg.cm
  • Application Fields: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.

Frequently Asked Questions (FAQ)

What are the primary applications for the FC-280SC-18180 DC motor?
This micro DC motor is widely used in automotive products, specifically as a car door lock actuator and central lock motor, as well as in scanner devices and precision instruments.
What are the key technical parameters of this micro motor?
It operates at a nominal voltage of 12V with a no-load speed of 9600 RPM. The output power ranges from 1W to 6W, and it delivers a torque of 291 G.CM.
Does this motor meet environmental standards?
Yes, this micro DC motor has received ROHS certification, ensuring compliance with strict environmental protection regulations.
What is the construction design of this motor?
It features a permanent magnet construction with a 2-pole stator, a 3-slot armature, carbon brushes, and an oil-impregnated bearing, protected by a durable plastic end cap.
What are the packaging and delivery details for volume orders?
The standard packaging is 500 pieces per carton (carton dimensions: 39x29x46 cm). Delivery is typically fulfilled within 30 days of order confirmation.
What overall micro motor specifications can be produced?
Production capabilities support diameters ranging from 4mm to 100mm, DC voltages from 1.5V to 42V, speeds from 1 RPM to 30,000 RPM, and stall torque ranges between 1g.cm and 30kg.cm.
