DC FC280 12V Car Central Door Lock Motors, 12v Car Central Lock Motor FC-280SC-16220/16240

1 / 5

DC FC280 12V Car Central Door Lock Motors, 12v Car Central Lock Motor FC-280SC-16220/16240

Send Inquiry

Product Description

📦 Product Description

Model Number	FC-280SC-16240/16220	Type	Micro Motor
Usage	Car, Scanner	Certification	ROHS
Torque	48G.CM	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	Closed
Speed(RPM)	12500rpm (No load)	Continuous Current(A)	0.1-5A
Output Power	1-6W	Voltage(V)	12V
Efficiency	IE 1	Brush Type	Carbon brushes
Bearing Type	Oil bearing	Rotation	Reversible

🚚 Packaging & Shipping

🔹 Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM

🔹 Delivery Detail: Within 30 days

⚙️ Specifications & Features

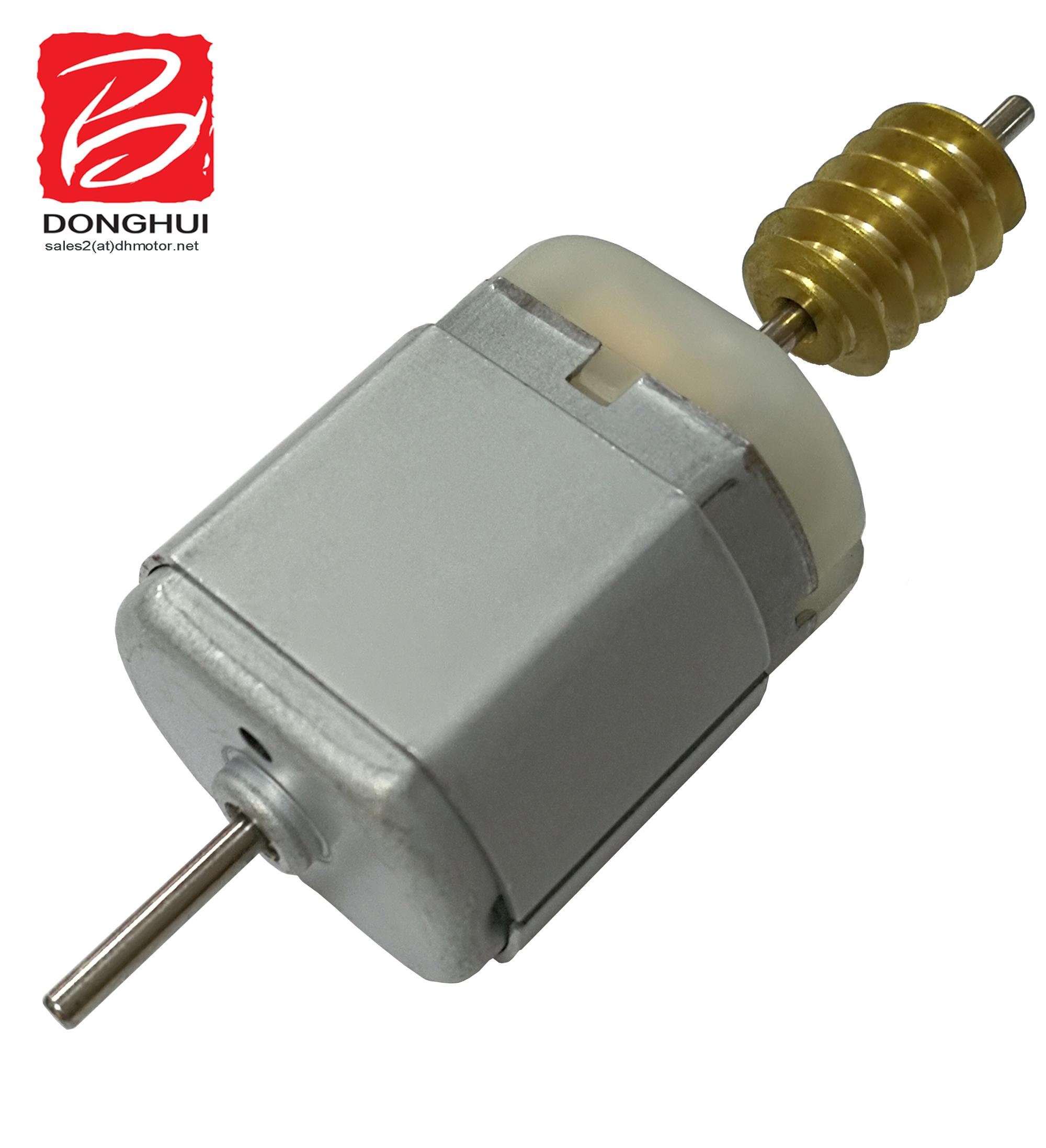

DC FC280 12V Car Central Door Lock Motor

✔ ROHS Certification

✔ Permanent Magnet Construction

✔ Durable Plastic End Cap

✔ Low noise and long operational life

Application: Door lock Actuator, Automotive Products

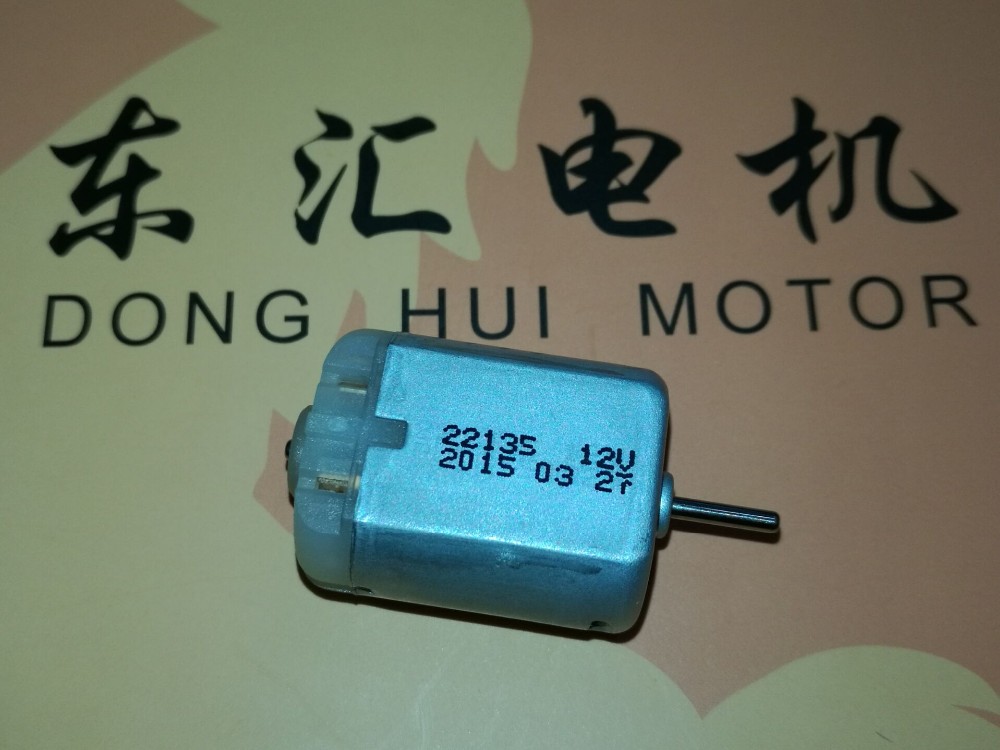

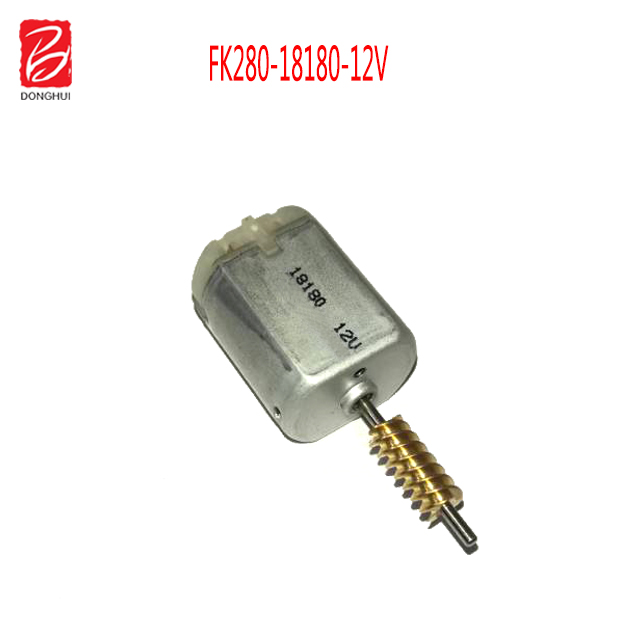

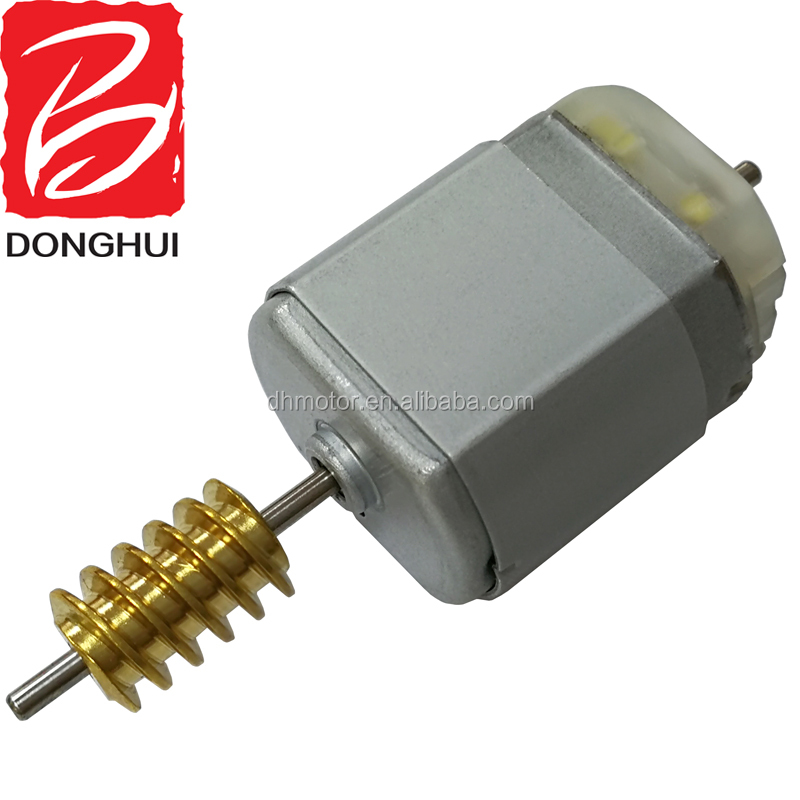

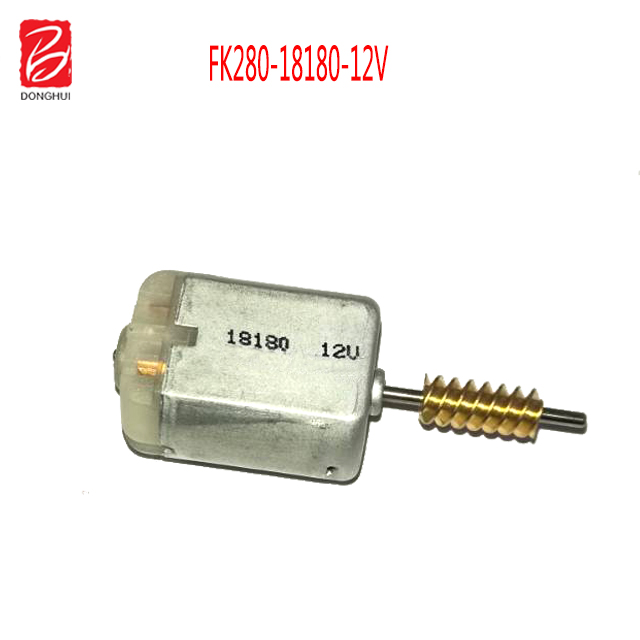

📷 Product Gallery

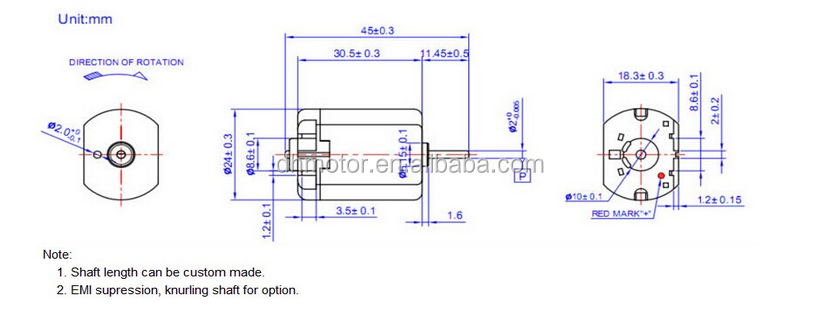

📐 Outline Drawing & Parameters

🏭 Technical Capabilities

Our expertise covers the development and production of 4 major micro motor series: Micro DC motors, DC gear motors, coreless motors, and brushless motors.

Size Range: Diameter 4mm - 100mm
Voltage Range: DC 1.5V - 42V / AC rectify up to 240V
Speed Range: 1 RPM - 30,000 RPM
Torque Range: 1g.cm - 30kg.cm

Applications: Consumer electronics, household appliances, office automation, medical equipment, power tools, and automotive sectors.

❓ Frequently Asked Questions

What is the primary application for this motor?

The FC-280SC is primarily used in automotive door lock actuators and central locking systems, as well as in scanners.

What is the operating voltage for this micro motor?

This model is designed for a standard 12V DC input, suitable for most automotive electrical systems.

Is the rotation of the motor reversible?

Yes, the motor features a reversible commutation design, allowing it to rotate in both directions.

What certifications do these motors hold?

Our micro motors are ROHS certified, ensuring they meet environmental and safety standards for hazardous substances.

What are the load characteristics of this motor?

The motor reaches a no-load speed of 12,500 RPM with a torque of approximately 48G.CM and output power between 1-6W.

What is the typical lead time for an order?

The standard delivery timeframe is within 30 days for typical order quantities like 500PCS per carton.
