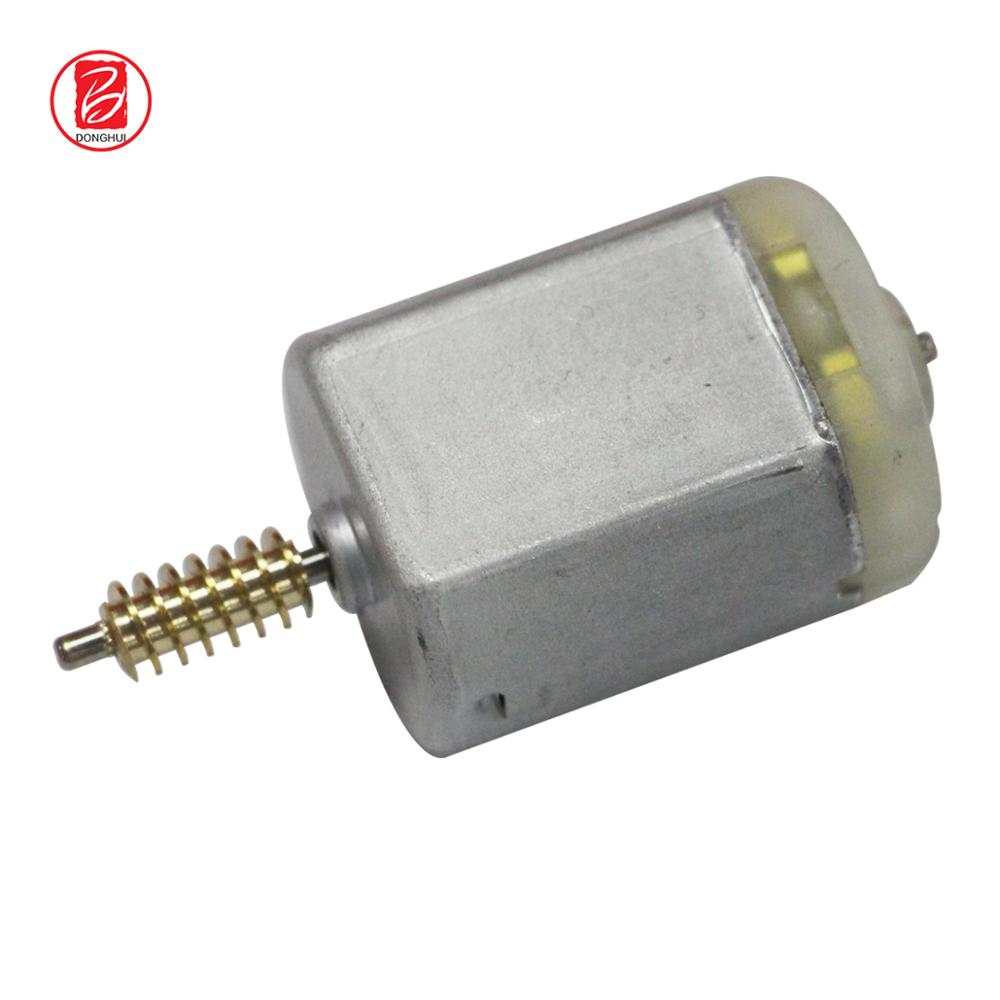

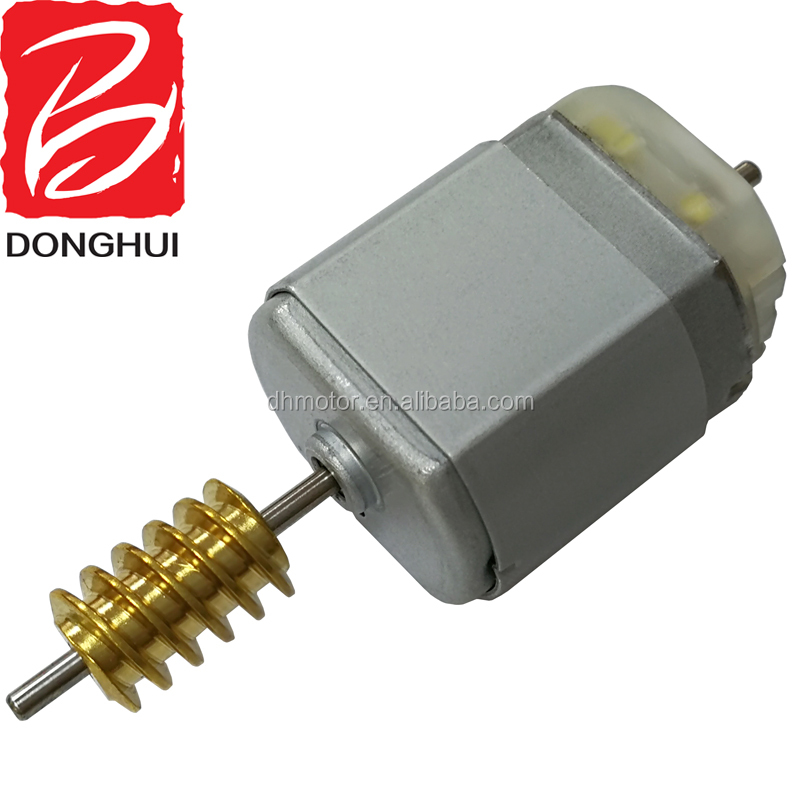

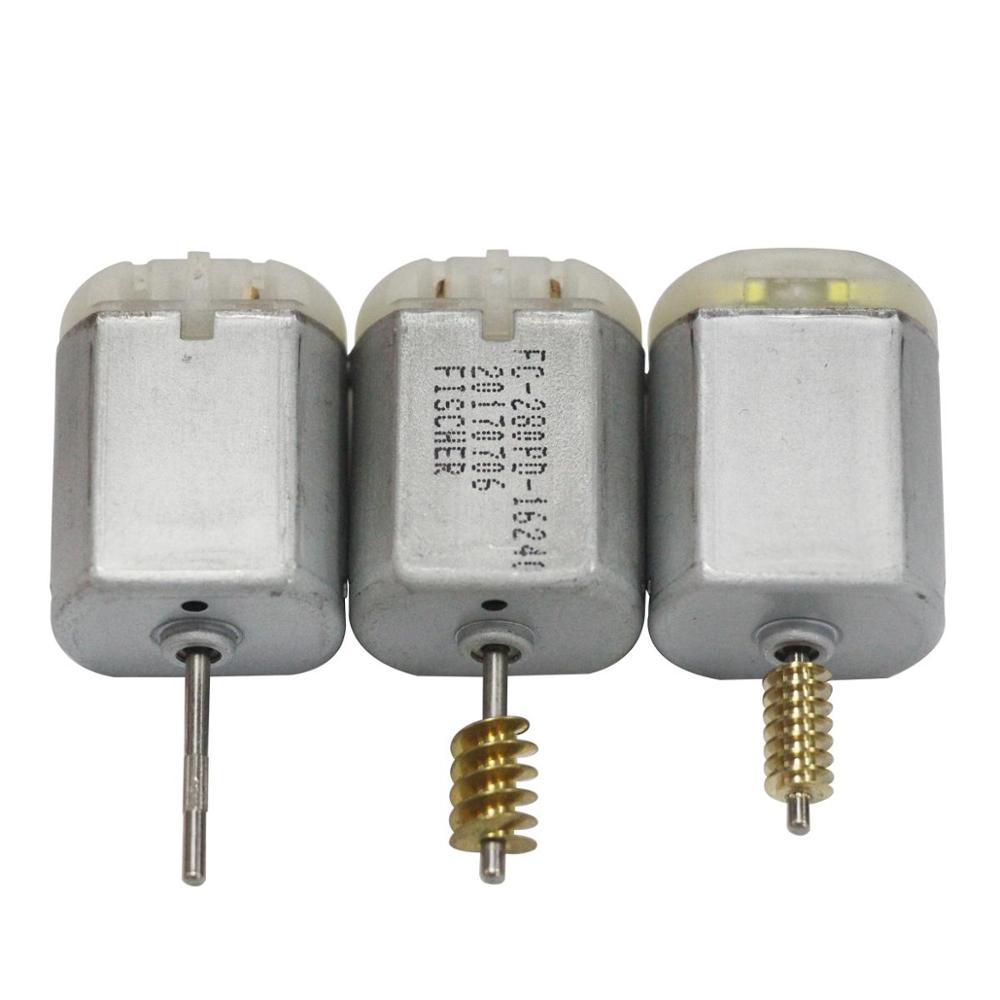

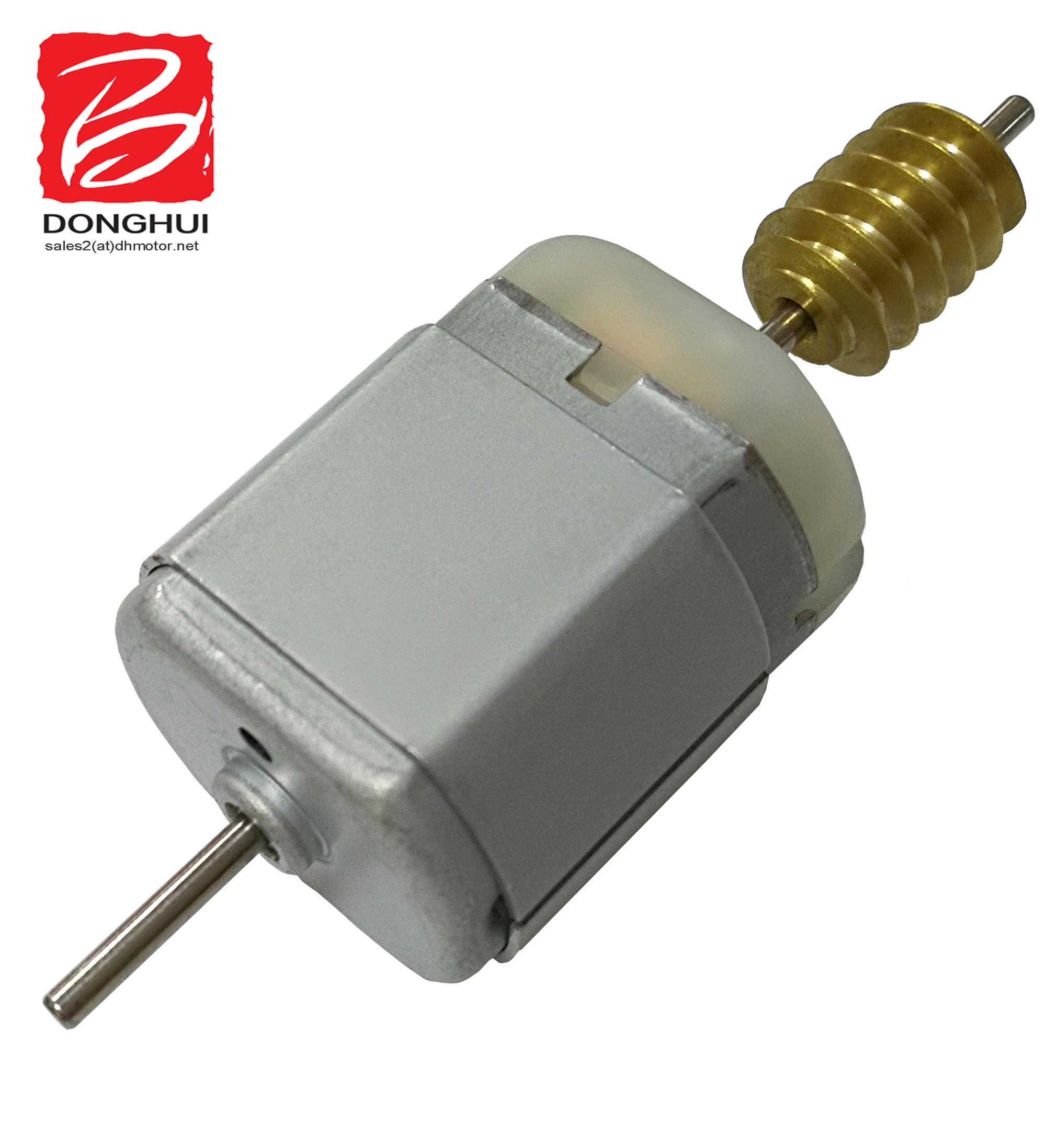

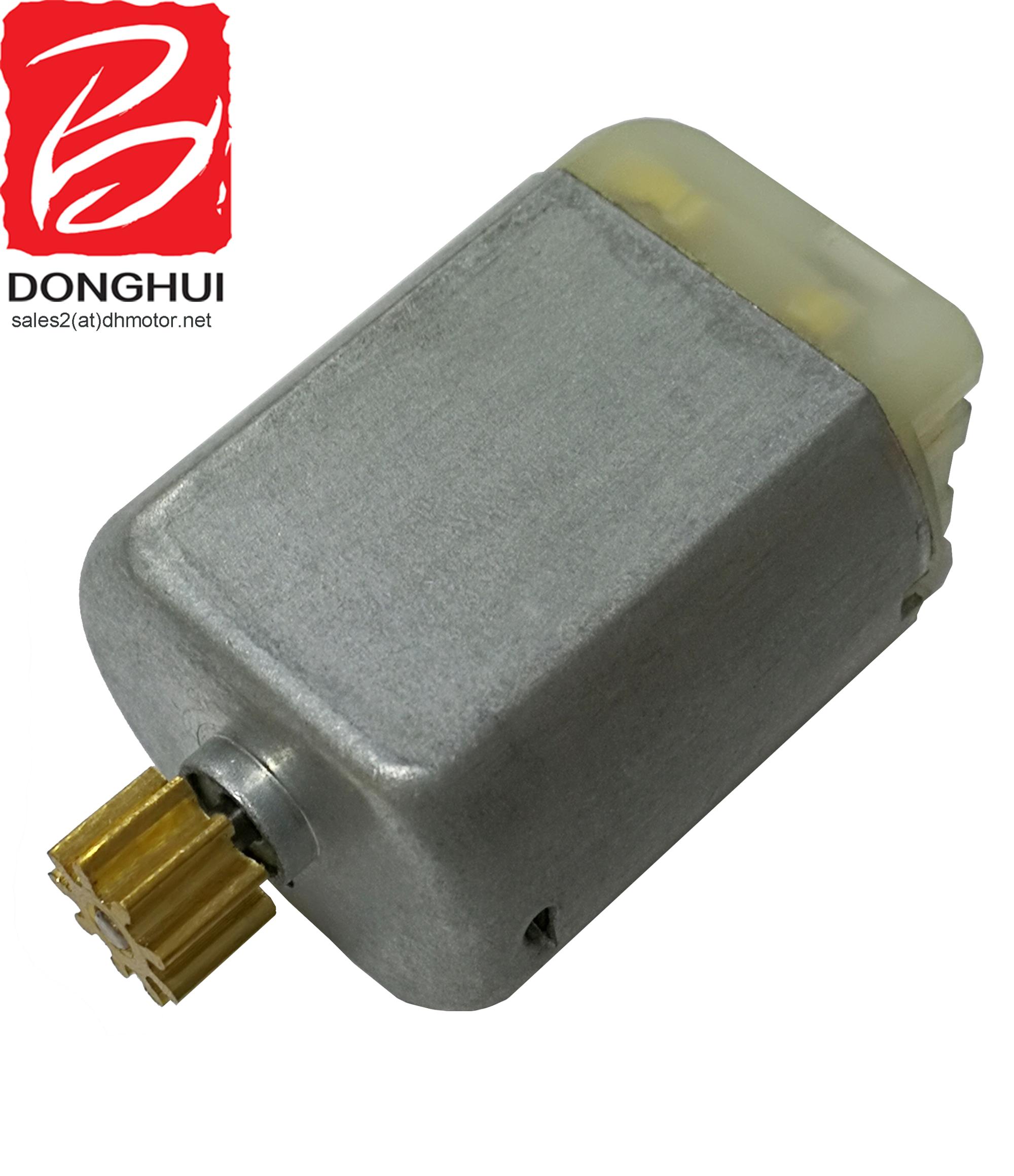

FC-280 12v 13v 24v Electric Car Motor Dc Car Door Lock Motor

1 / 5

FC-280 12v 13v 24v Electric Car Motor Dc Car Door Lock Motor

Send Inquiry

Product Description

📦 Product Description

Quick Details

Usage:	Car	Model Number:	FC-280PC-22125
Certification:	ROHS	Type:	Micro Motor
Torque:	48G.CM	Construction:	Permanent Magnet
Commutation:	Brush	Speed(RPM):	12500rpm (No load)
Voltage(V):	12V	Efficiency:	IE 1
Continuous Current:	0.1-5A	Output Power:	1-6W
Brush Type:	Carbon brushes	Rotation:	Reversible
Bearing Type:	Oil-impregnated bearing	End Cap:	Plastic End Cap

🚛 Packaging & Shipping

Packaging Details:	500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail:	Within 30 days

⚙️ Specifications

FC-280 12V DC Car Door Lock Actuator Motor

ROHS Certification
Permanent Magnet Construction
Durable Plastic End Cap
Low noise and long life performance
Application: Door lock Actuator, Automotive Product

📏 Outline Drawing & Parameters

🏢 Technical Capabilities

Specialized in the development and production of micro motors since 2003, covering four major series:

Main Products: Dia4~100mm DC Micro Motor, Auto DC motor, Coreless Brushless motor, Gear Motor, Vibration motor.
Voltage Range: 1.5V - 42V DC; AC rectify: 100V-240V.
Speed Range: 1 RPM - 30,000 RPM.
Stall Torque: 1g.cm - 30kg.cm.
Fields: Consumer electronics, household appliances, office automation, medical equipment, power tools, and automotive sectors.

❓ Frequently Asked Questions

Q1: What is the primary application for the FC-280 motor? A: It is primarily designed for automotive applications, specifically for car door lock actuators and other automotive power accessories.

Q2: Can this motor operate in both directions? A: Yes, the motor is reversible, allowing for flexible operation in various mechanical systems.

Q3: Does the motor meet environmental standards? A: Yes, the motor is ROHS certified, ensuring compliance with international environmental and safety standards.

Q4: What are the noise characteristics of this micro motor? A: The motor is engineered for low noise operation and a long service life, making it ideal for precision instruments and car interiors.

Q5: What is the standard lead time for bulk orders? A: The typical delivery detail for mass production orders is within 30 days after order confirmation.

Q6: Are custom voltage specifications available? A: While the standard is 12V, our production range covers 1.5V to 42V DC to suit various industrial and consumer requirements.
