1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1 / 4
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor
1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor

1.5v Dc Low Rpm 10mm Gear Motor Mini Dc Motor 10mm Plastic Gear Motor

Send Inquiry

Product Description

Product Overview
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance Certification ROHS, ISO
Type Gear Motor Torque 165 G.cm
Construction Permanent Magnet Commutation Brush
Protect Feature Drip-proof Speed(RPM) 40 RPM
Continuous Current 0.12A Output Power 0.2 W
Voltage(V) 1.5 V Efficiency IE 1
Weight 8g No Load Speed 45 rpm
Packaging & Shipping
📦 Packaging Details: 1000PCS/CTN, standard export packing.
🚚 Delivery Detail: Within 25 days.
Technical Specifications
1.5v Dc Low Rpm 10mm Gear Motor
Mini Dc Motor 10mm Plastic Gear Motor

DH-M1012GA171 - 1.5v DC Low RPM Mini Plastic Gear Motor

â–¶ Voltage: 1.5-24V
â–¶ Speed: 30-50rpm, Torque: 10-40g.cm
â–¶ 10mm diameter plastic gearbox
â–¶ ROHS Compliant
â–¶ Quiet operation, Long lifespan

Applications: Audio and visual products, high-end toys, personal health care products, security equipment, massager, robot, mascara, camera.

Operating Environment: -10~+60°C; 15~90%RH

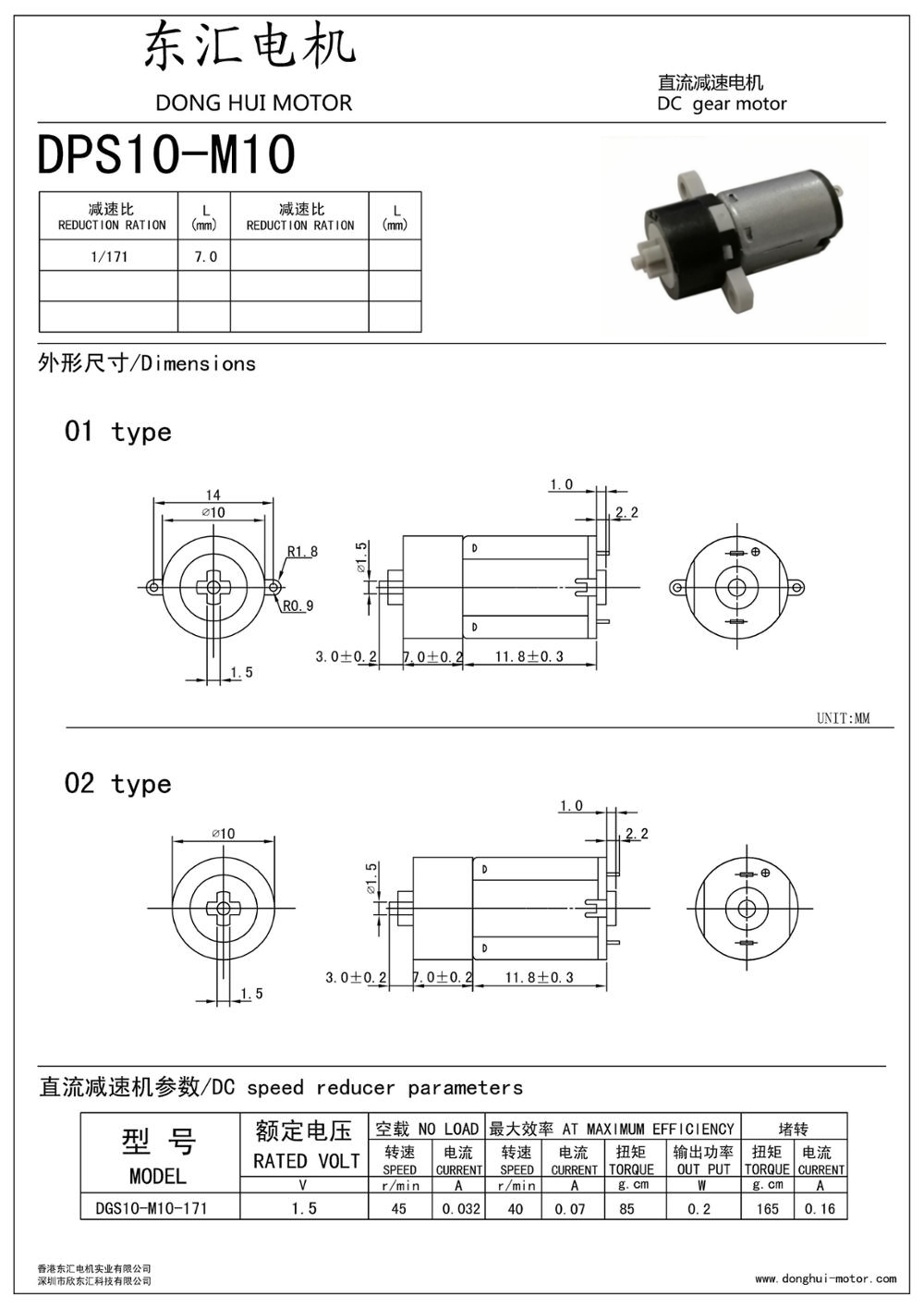

Technical Drawing

Note: Technical data above is for reference; specifications like voltage, speed, torque, and shaft can be customized.

Product Showcase

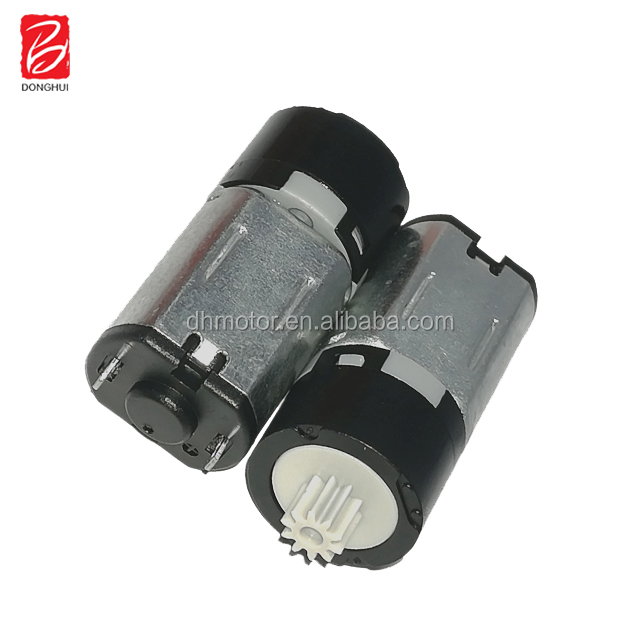

1.5v 10mm mini dc motor

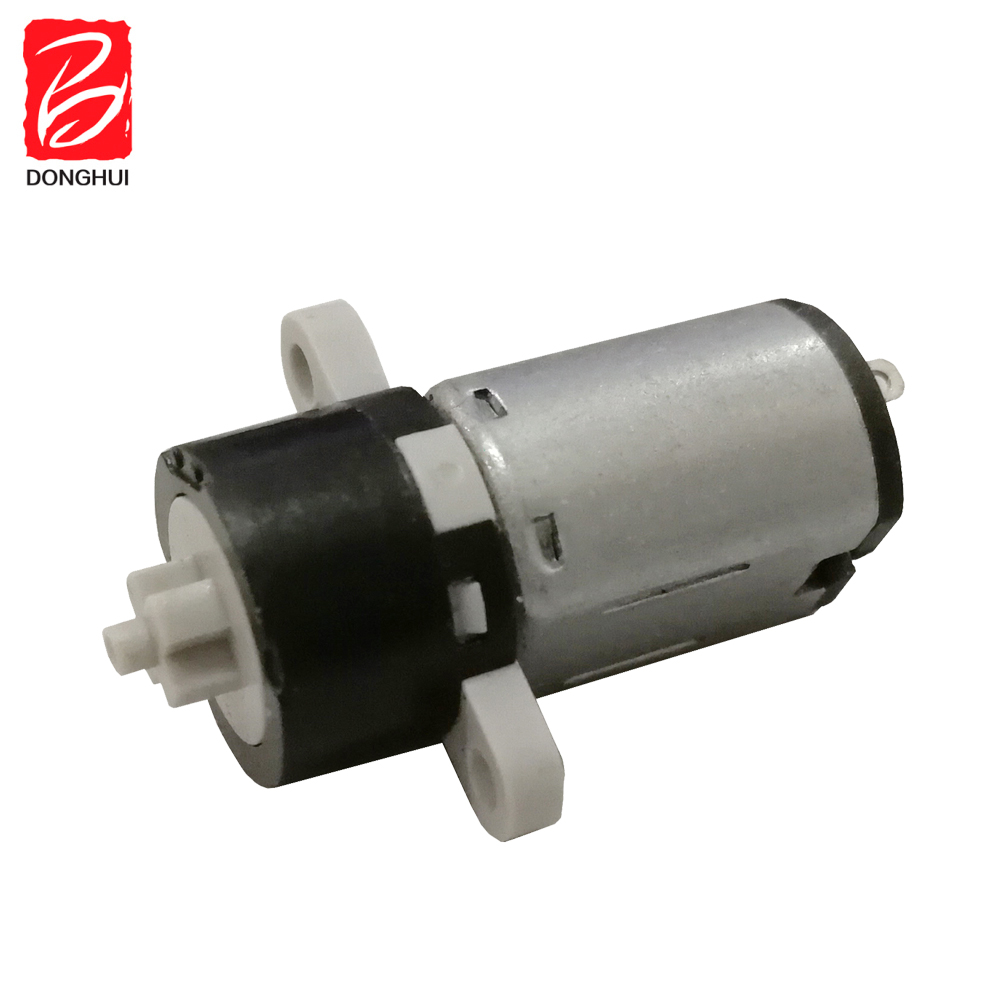

1.5v 10mm mini dc motor view
Manufacturing Capability
Factory Overview
Production Line
Testing Equipment

Specializing in micro motor development since 2003, offering four major series: Micro DC motor, DC gear motor, coreless motor, and brushless motor.

✔ Diameter range: 4mm to 100mm
✔ DC Voltage range: 1.5V - 42V (AC rectify available)
✔ Speed range: 1 RPM - 30,000 RPM
✔ Stall torque: 1g.cm - 30kg.cm
Frequently Asked Questions
Can the motor specifications be customized?
Yes, technical data such as voltage, speed, torque, and shaft dimensions can be customized to meet your specific application requirements.
What are the main applications for this 10mm gear motor?
It is widely used in high-end toys, personal health care products (like massagers), security equipment, robots, cameras, and office automation.
What is the standard delivery time for orders?
Standard delivery is typically within 25 days, depending on the order volume and customization needs.
Is the motor compliant with international standards?
Yes, our motors are ROHS and ISO certified, ensuring high quality and environmental safety.
What is the typical lifespan and noise level?
These motors are designed for a long operational lifespan and feature quiet performance, making them ideal for high-end consumer electronics.
What is the operating environment range?
The motor functions effectively in temperatures ranging from -10°C to +60°C and humidity levels between 15% and 90%RH.
