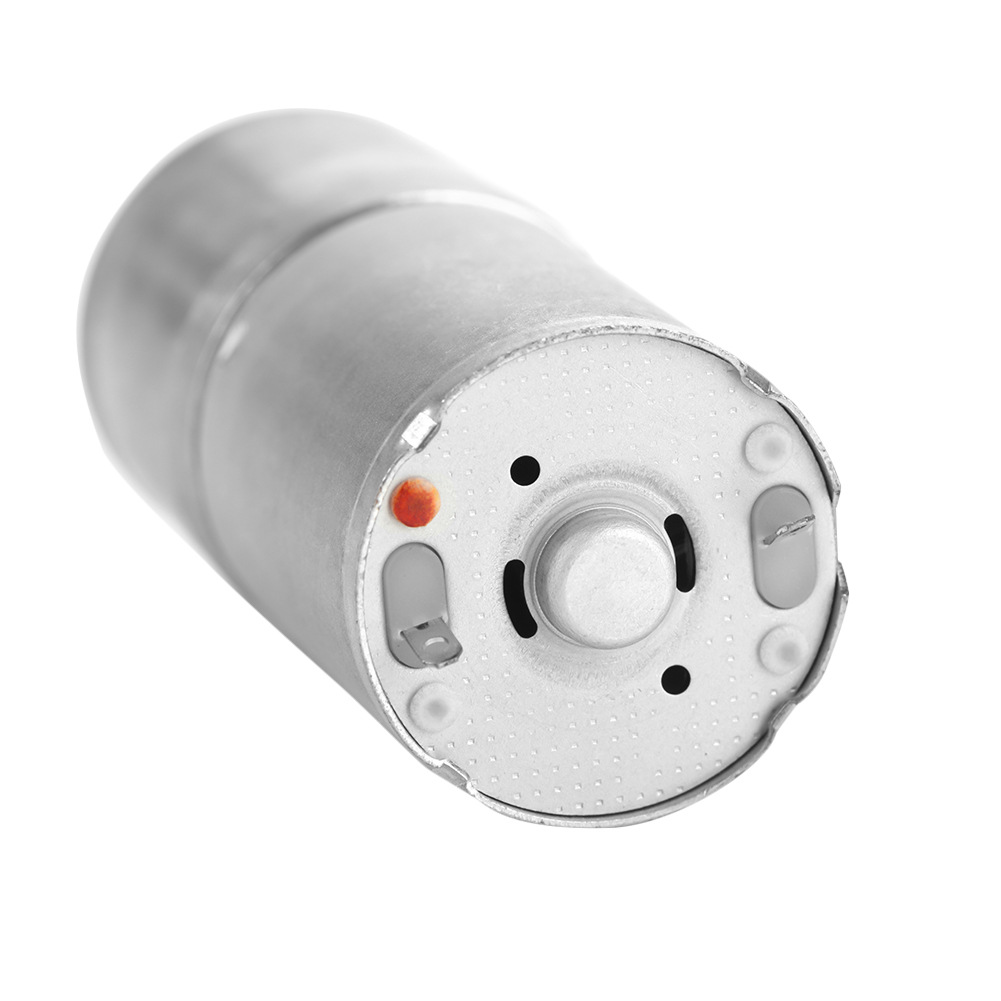

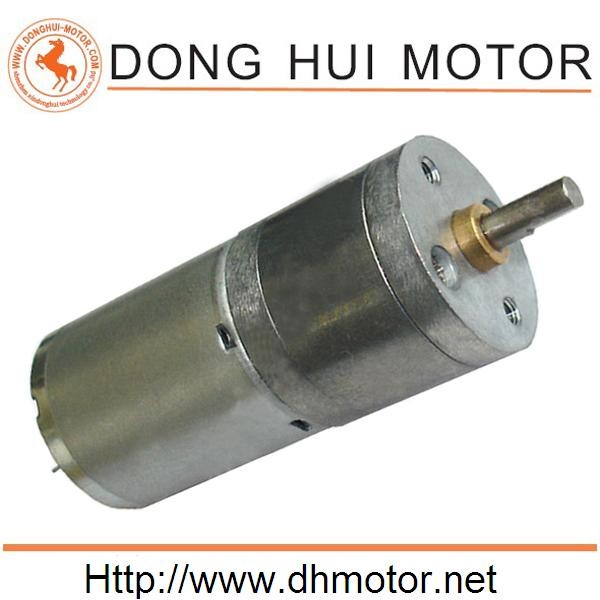

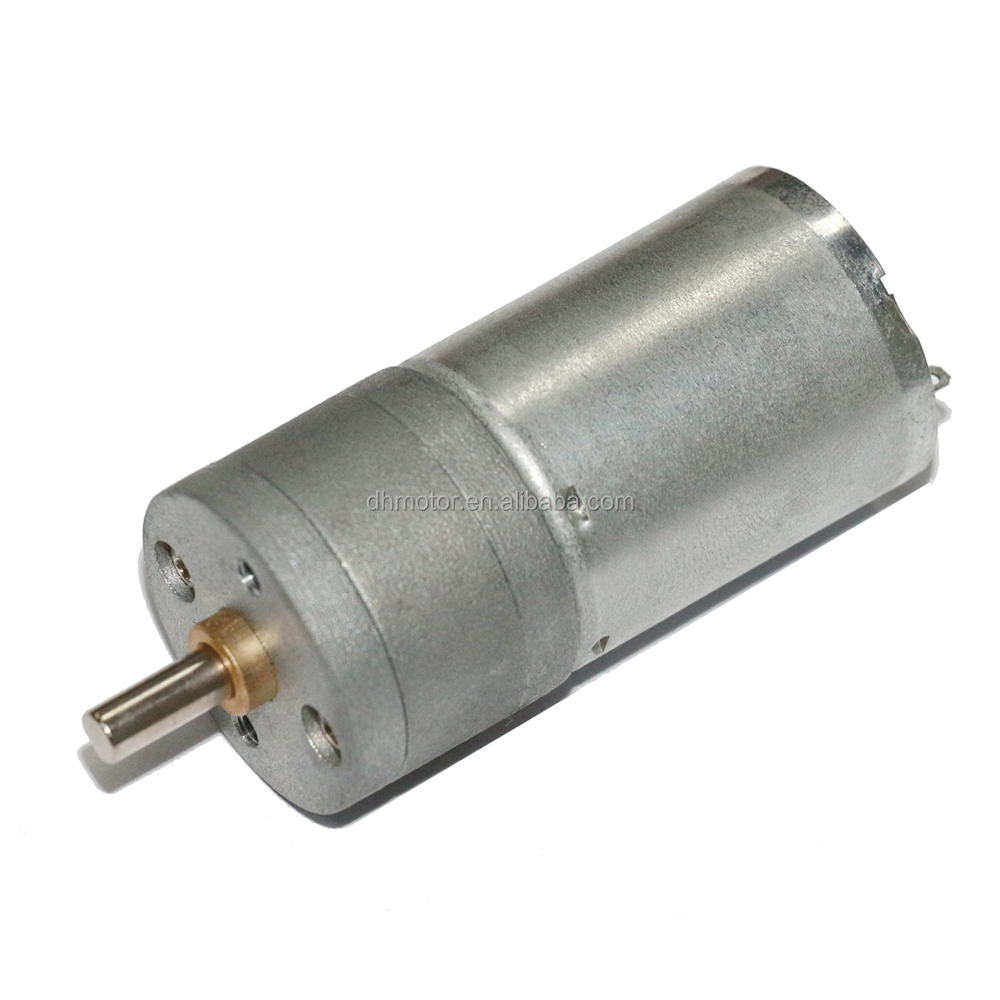

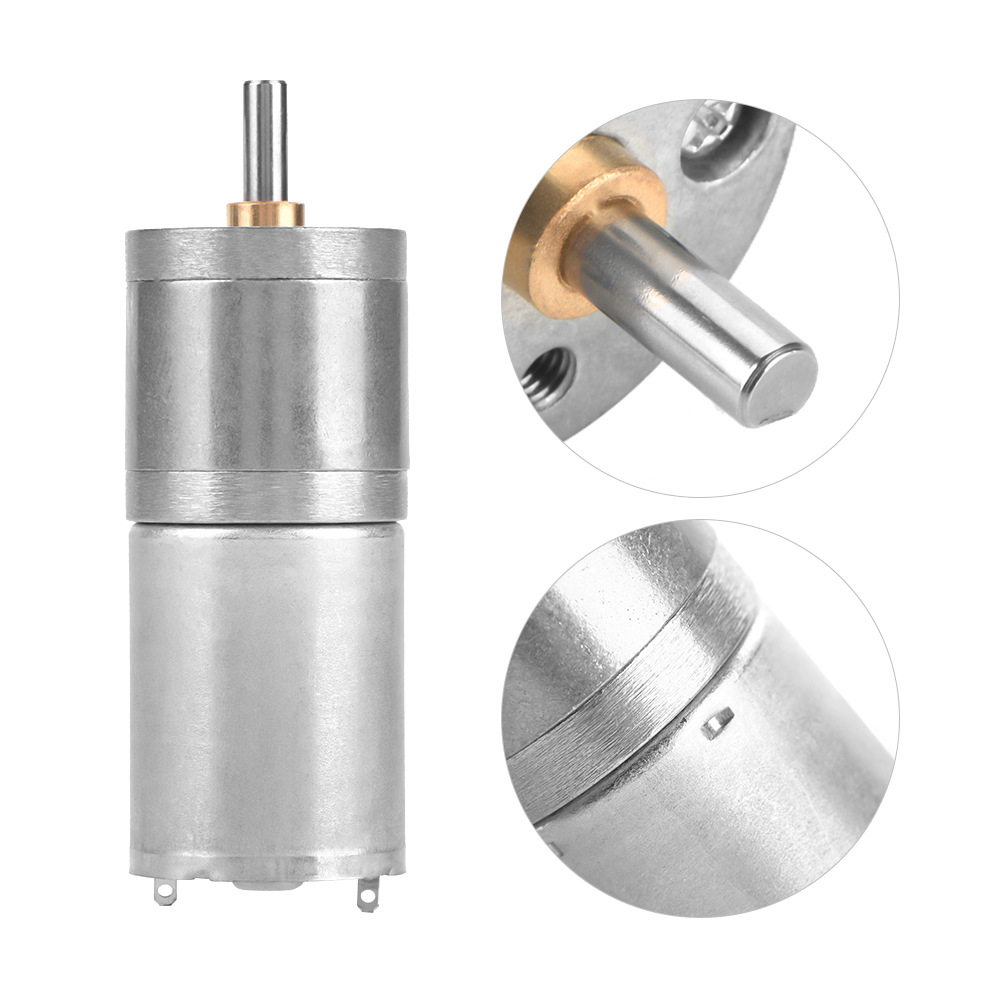

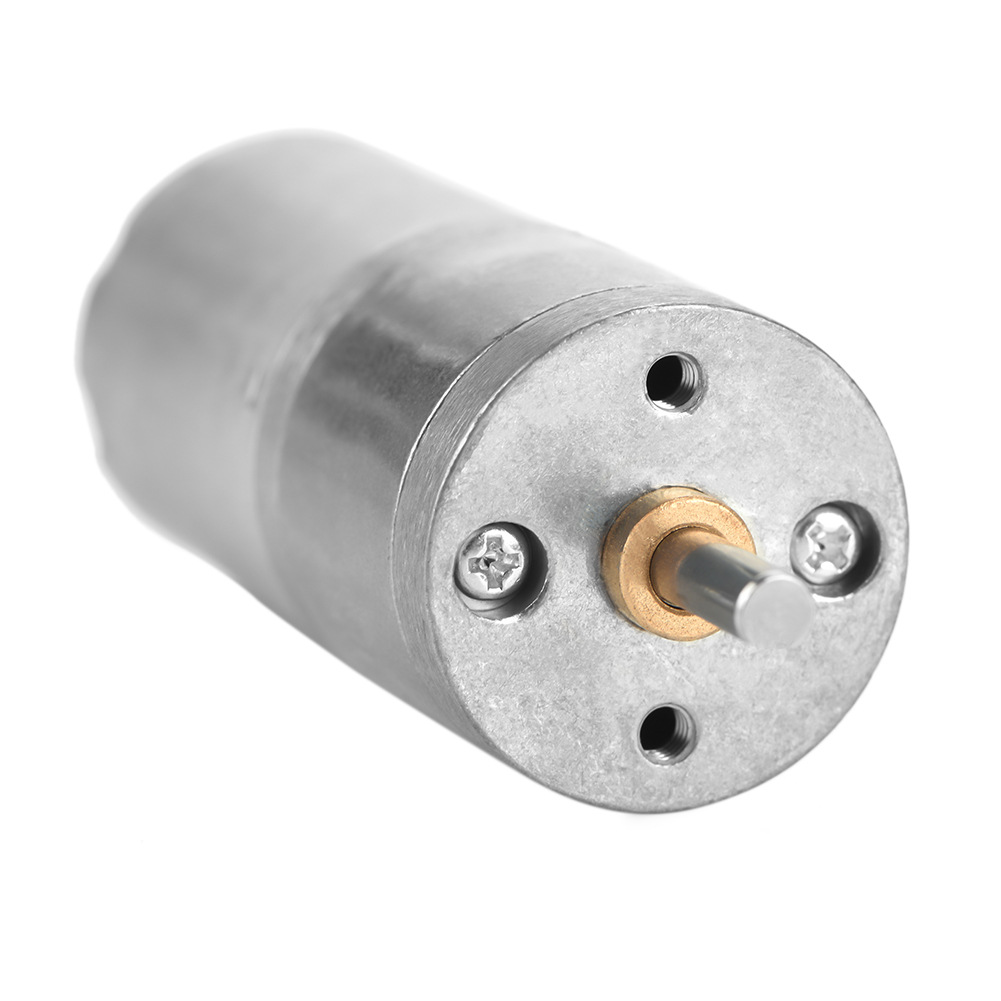

1Compact size: 25*54 mm mini motor
2Versatile Voltage: 6V, 12V, 24V support
3Speed Range: 5-410 RPM
4High Torque: 0.05-5kg.cm for various needs
5Quiet Operation: Low noise and low current

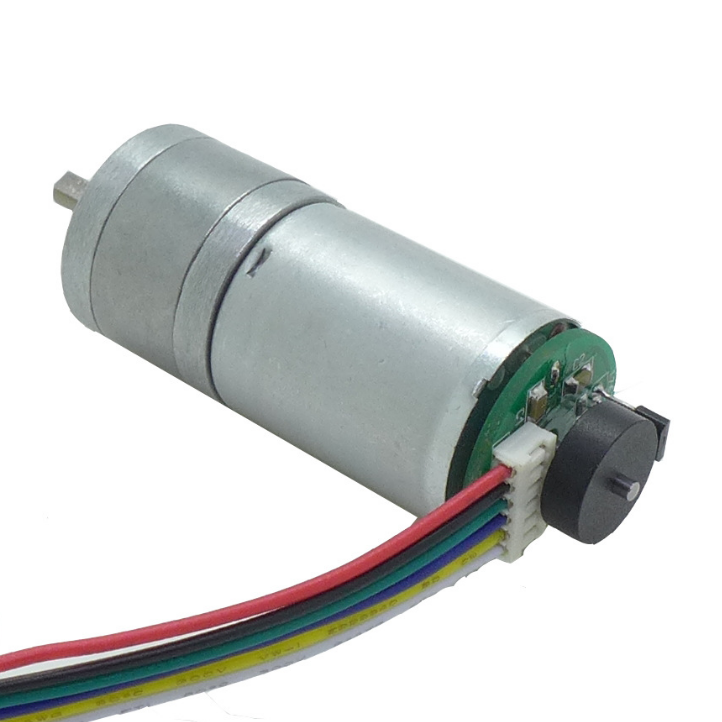

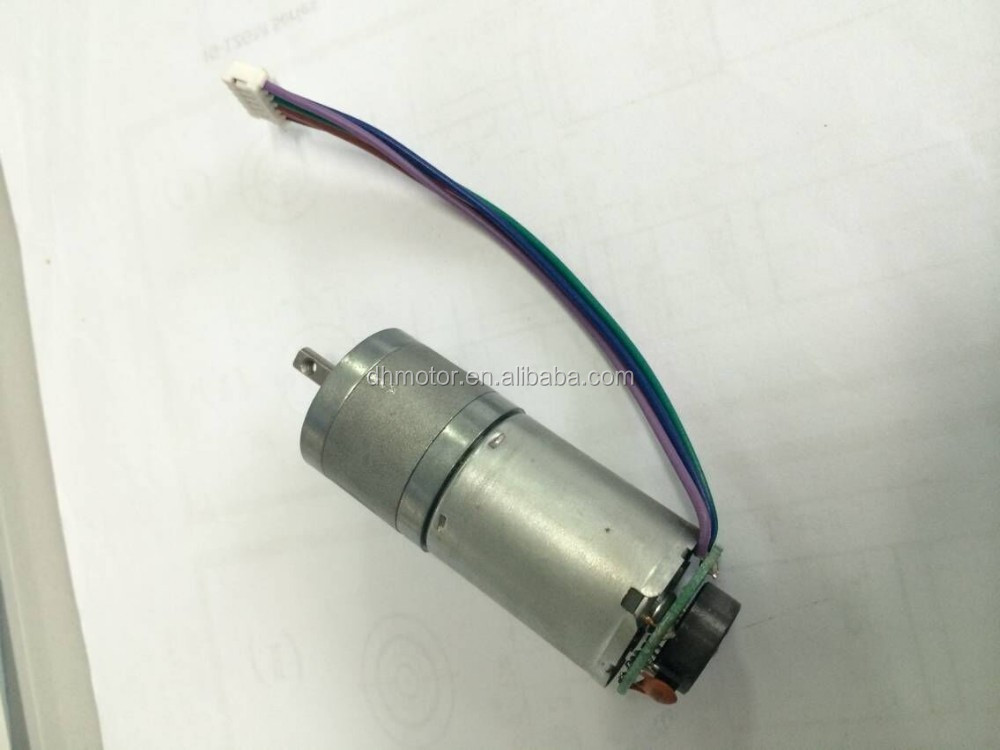

6Encoder Ready: Supports 16 pulse signals
7Customization: Reduction Ratio 15-1051 available
8Durability: Long life time performance
Typical Applications: Safe box, Storage box, Perfume sprayer, Ad equipment, Sanitary equipment, Automatic window curtain, Electronic game machine, Robot, Measuring instrument, Audio equipment.
Reduction Ratios: 1/15, 1/20, 1/26, 1/34, 1/45, 1/57, 1/75, 1/98, 1/125, 1/165, 1/217, 1/275, 1/362, 1/478.
Our expertise covers a wide range of micro motors including Dia4~100mm DC Micro Motors, Coreless Brushless motors, and Spur Gear motors. DC Voltage ranges from 1.5V to 42V, with AC rectify options for 110V-240V.
What is the standard voltage range for these gear motors?
The standard DC voltage range is 1.5V to 42V, with specific support for 6V, 12V, and 24V configurations.
Can the reduction ratio be customized?
Yes, we offer customizable reduction ratios ranging from 15 to 1051 to meet specific speed and torque requirements.
What are the main applications for this 25mm gear motor?
It is widely used in home appliances, safe boxes, robotic systems, automatic curtains, perfume sprayers, and medical equipment.
Does the motor support feedback control?
Yes, the motor can be equipped with an encoder providing a 16-pulse signal for precise control.
What is the lead time for mass production orders?
The standard delivery time is within 20 to 25 days following order confirmation.
What is the Minimum Order Quantity (MOQ)?
The MOQ for these gear motors is 100 pieces, and samples can be provided for initial testing.
