N20 12mm Geared Motor 3v 60 Rpm, 6v 12mm Gear Motor Dc Motor for Door Lock, 12mm Dc Gear Motor with Encoder

📦 Product Description & Quick Details

Model Number	DGA12-N20	Type	Micro Motor
Usage	Boat, Car, Electric Bicycle, Fan, Home Appliance	Certification	ROHS, ISO
Torque	300 G.cm	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	Drip-proof
Speed(RPM)	56 RPM	Continuous Current(A)	0.12A
Output Power	0.3 W	Voltage(V)	3 v
Efficiency	IE 1	Shaft	Dia 2.0mm
Weight	10g	No Load Speed	71 rpm
Max Efficiency	68.3%	Style	12mm gear motor

🖼️ Product Showcase

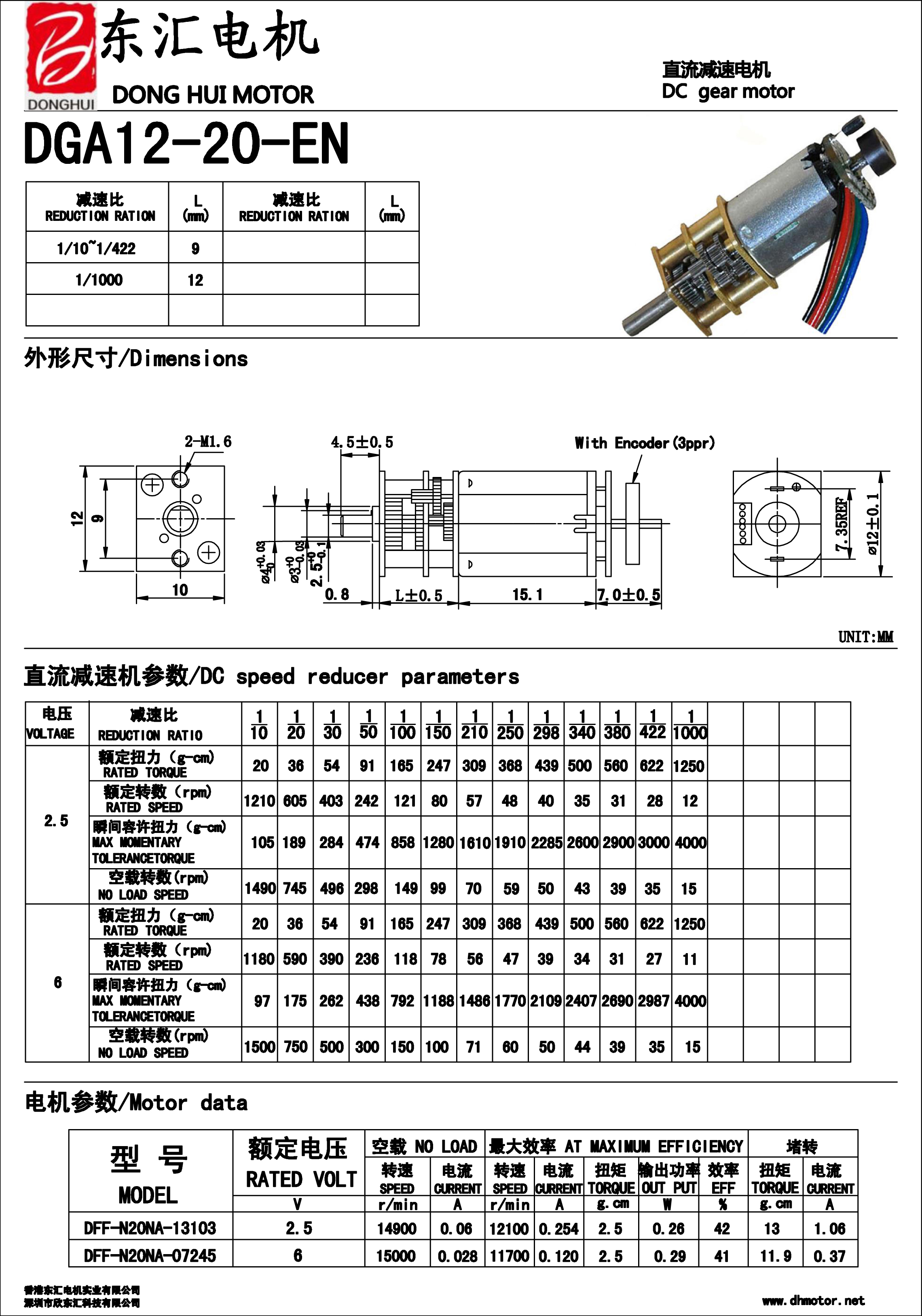

⚙️ Technical Specifications

Gear Motor DGA12-N20 Features:

🚀 Widely Used Applications

This micro gear motor is ideal for high-precision and compact space requirements:

🚛 Packaging & Shipping

Packaging Details	80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 1196.75 INCH
Delivery Detail	Within 25 days
MOQ	100 pieces

❓ Frequently Asked Questions

1. What is the typical voltage range for the N20 gear motor?

The motor supports a wide DC voltage range from 1.5V up to 12V, making it versatile for various battery-operated devices.

2. Can this motor be used for high-torque applications?

Yes, with a stall torque of up to 300 G.cm and various reduction ratios (up to 1/1000), it is designed for precision tasks requiring stable torque.

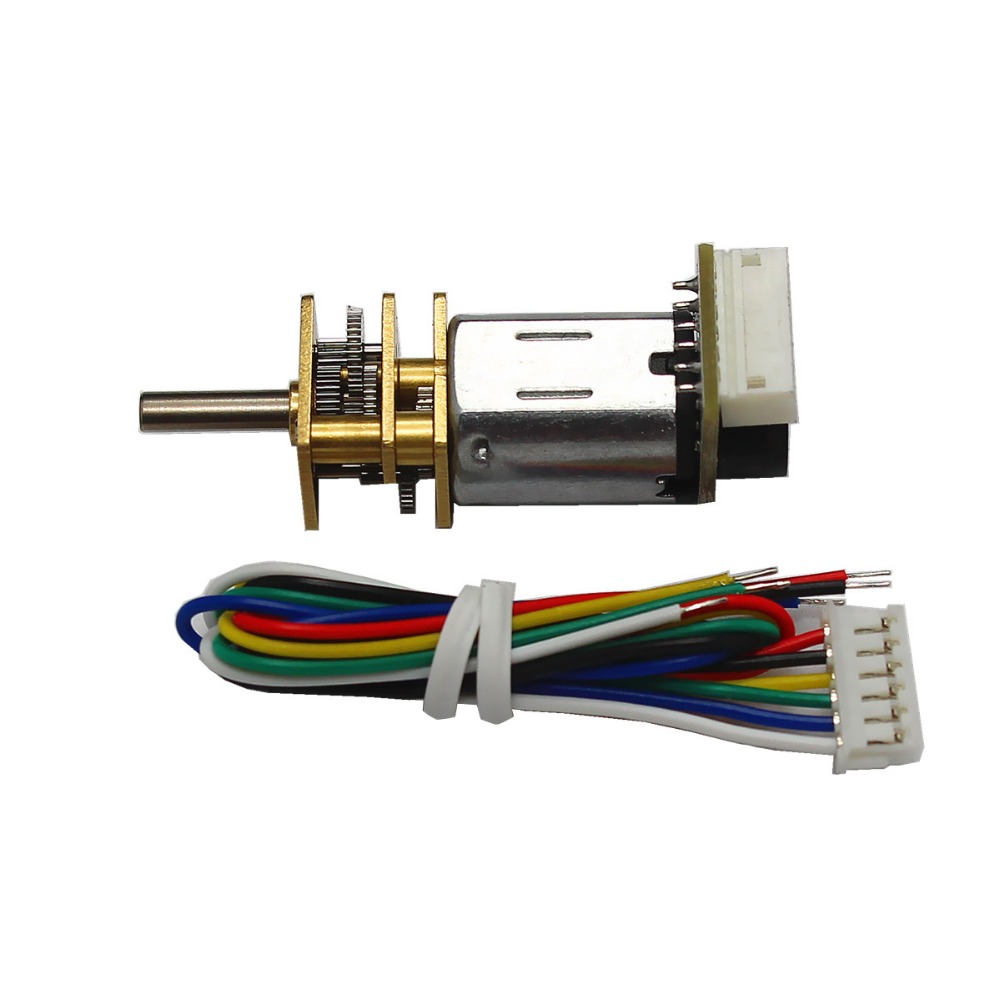

3. Is it possible to add an encoder to this model?

Absolutely. The DGA12-N20 can be equipped with an encoder for feedback and precise speed or position control.

4. What are the common reduction ratios available?

We offer multiple reduction ratios including 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000 to meet different speed requirements.

5. What is the standard lead time for orders?

Standard delivery is typically within 25 days, with samples often ready in 15-20 days depending on customization.

6. Does the motor produce a lot of electrical interference?

No, the motor is designed for low noise and low current, with features to ensure no spark during operation, suitable for sensitive electronics.

Product Detail
