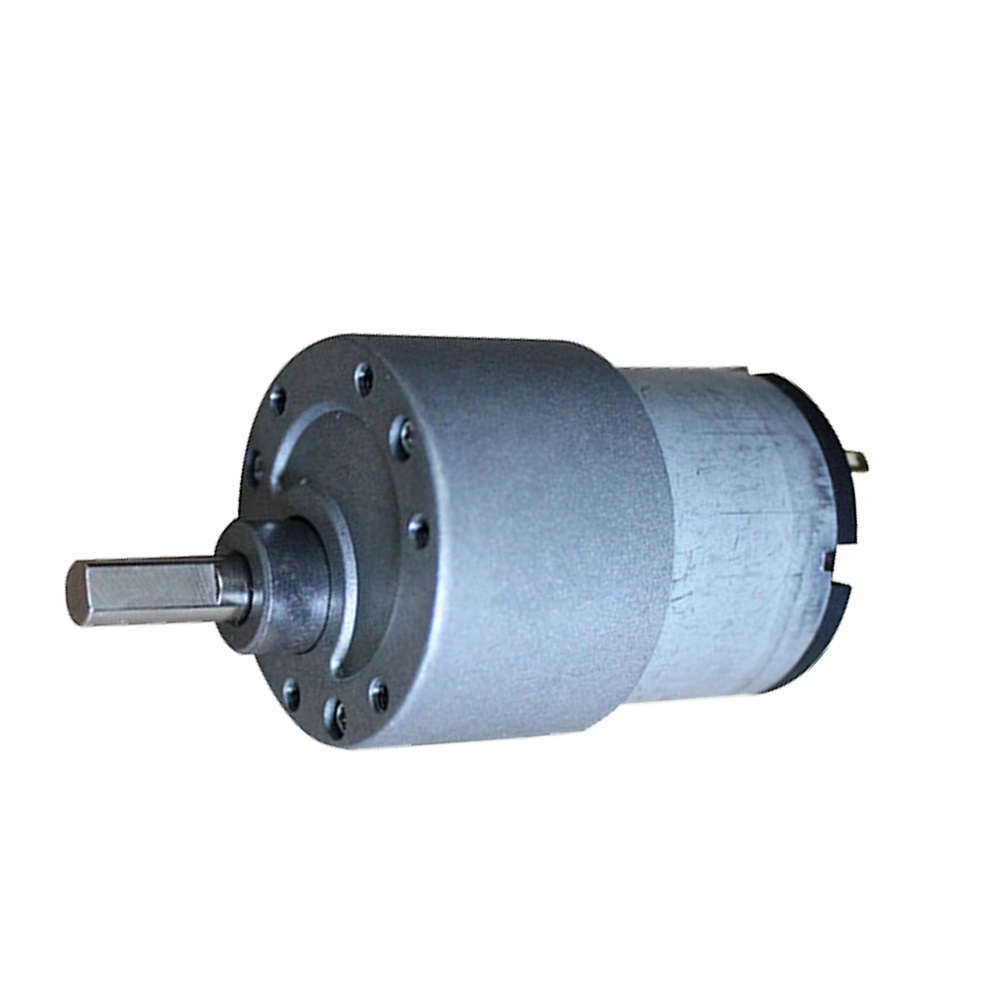

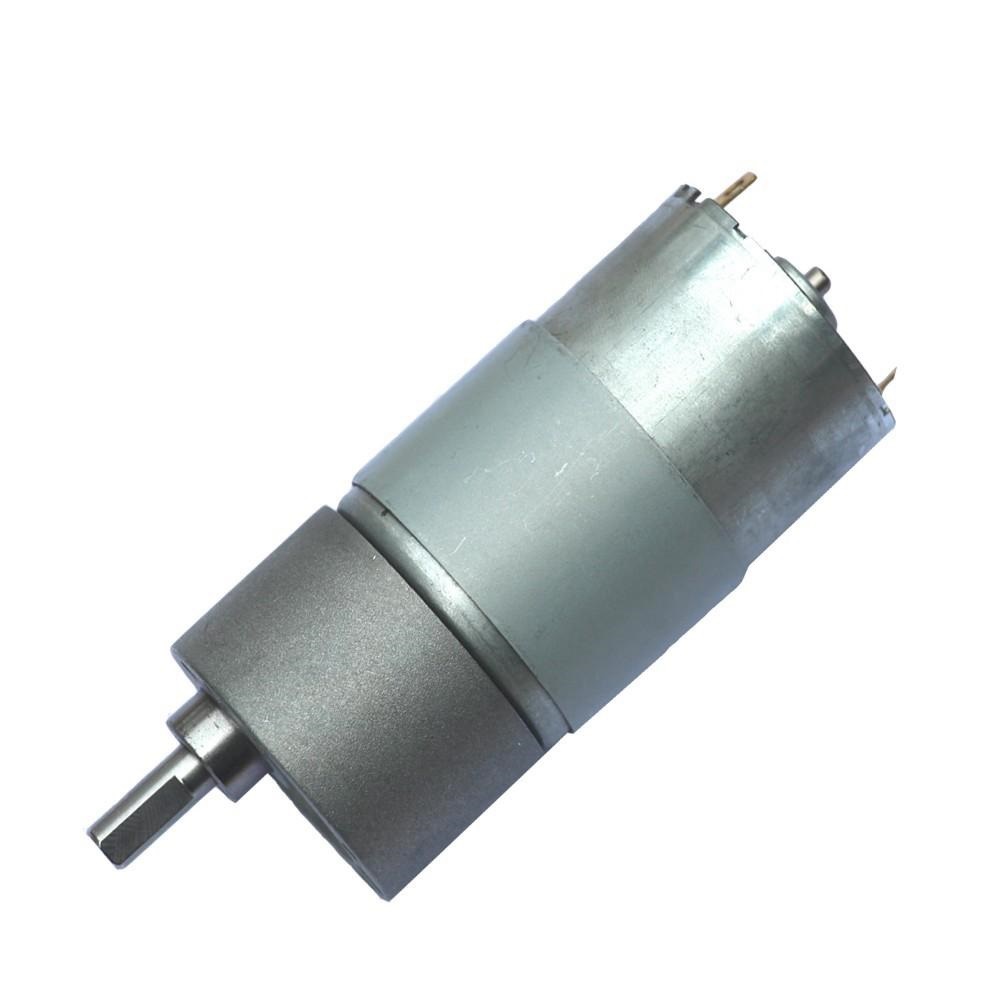

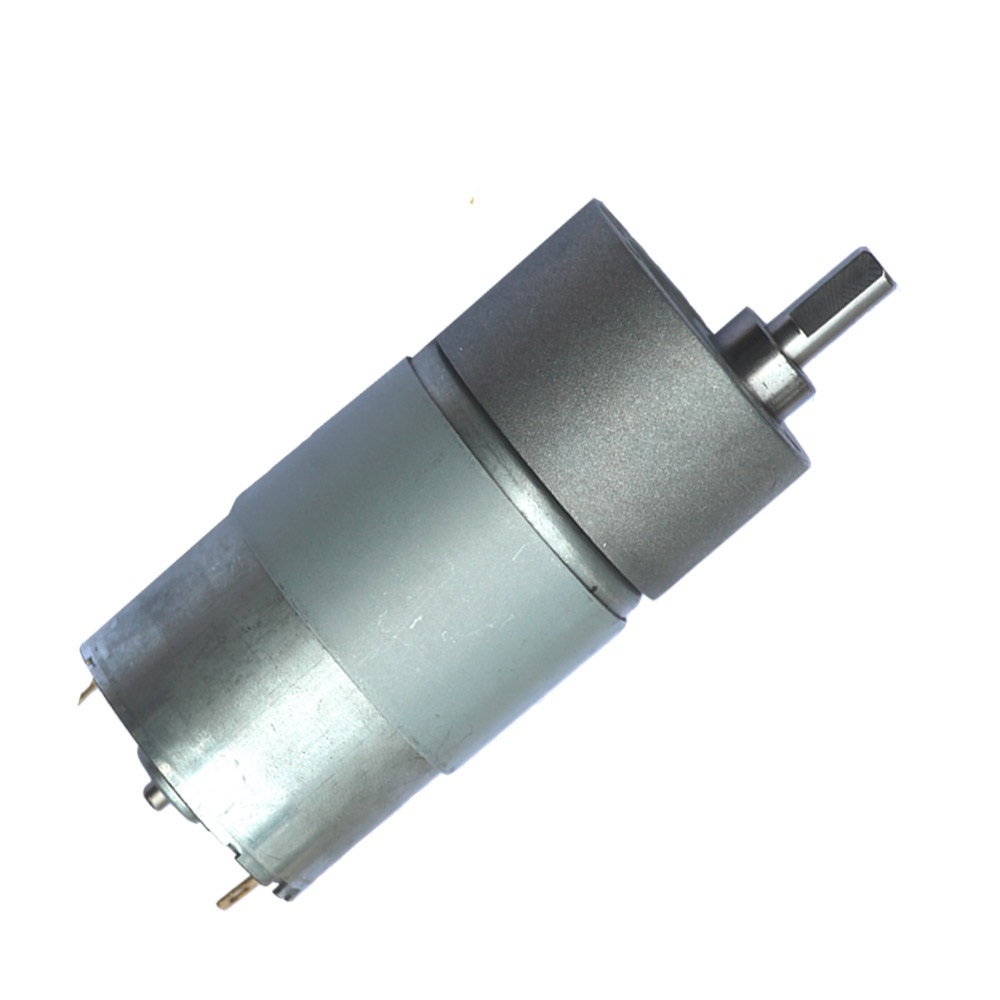

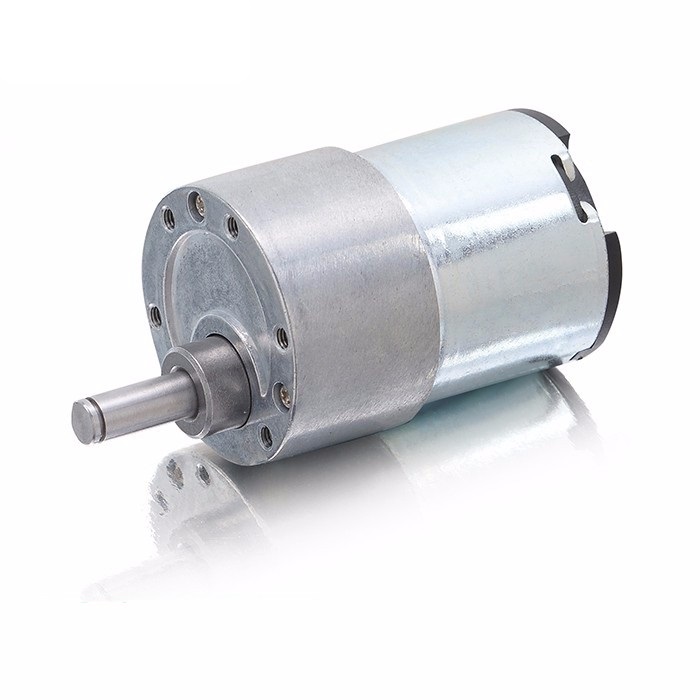

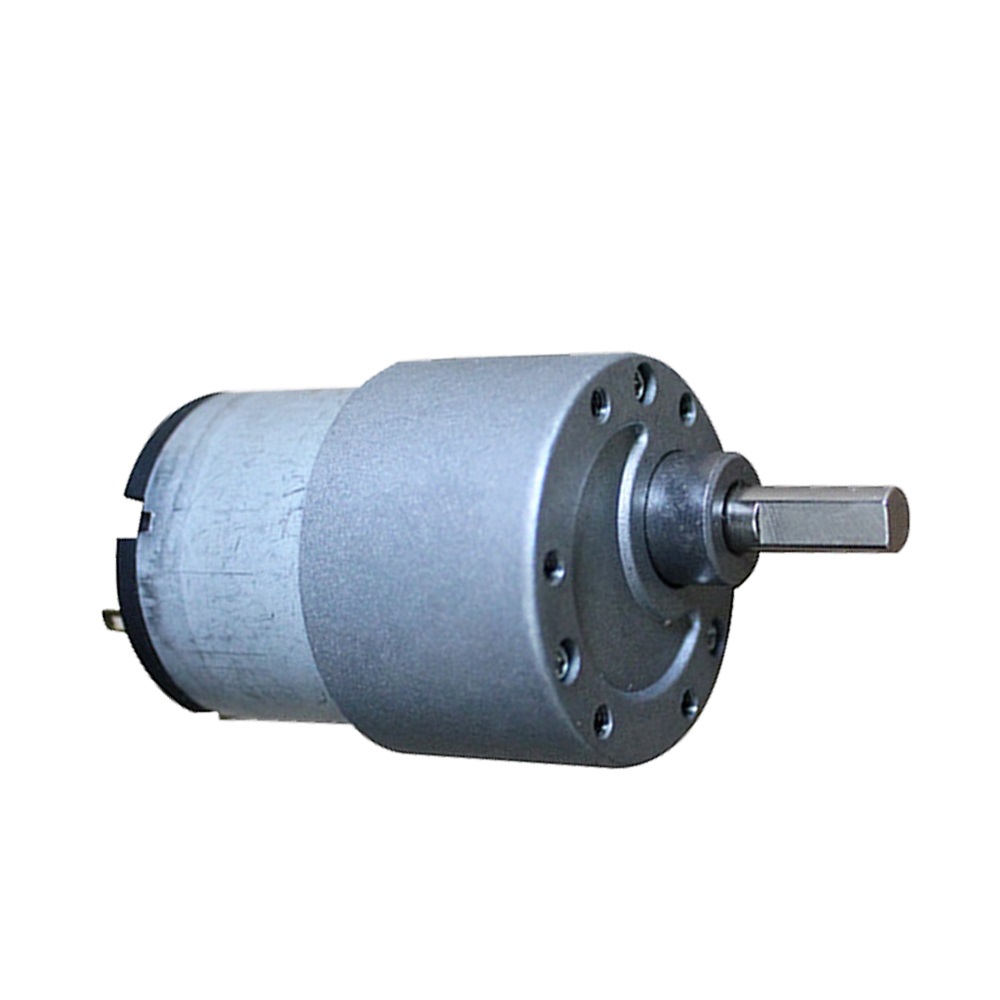

GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor

1 / 5

GB37 555 550 528 6V 12V 24V 37mm Dc Gear Motor

Send Inquiry

Product Description

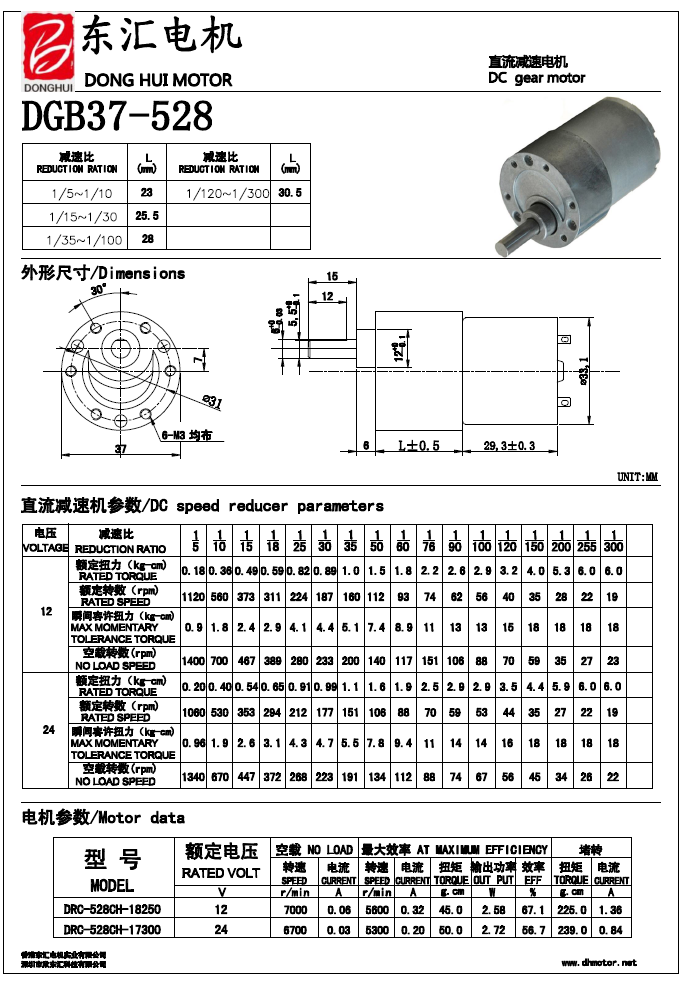

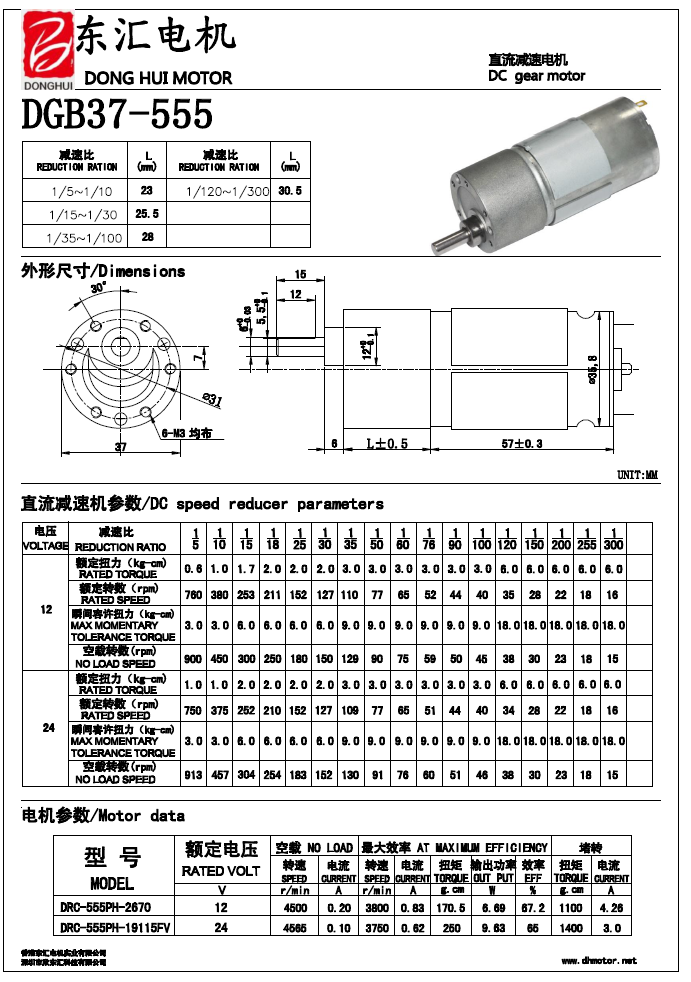

Specification

Item	37mm DC Gear Motor
Size	diameter 37mm，length：Customized
Voltage	6V-24V
Unload Speed	10-1000rpm
Rated Torque	≤6kg.cm
Max Torque	≤18g.cm
Wattage	≤8watt
Application	Robot, Lock, toys, electric power tool

Product Description

Motor's voltage, speed, ratio, torque, screw length, shaft length can be fully customized

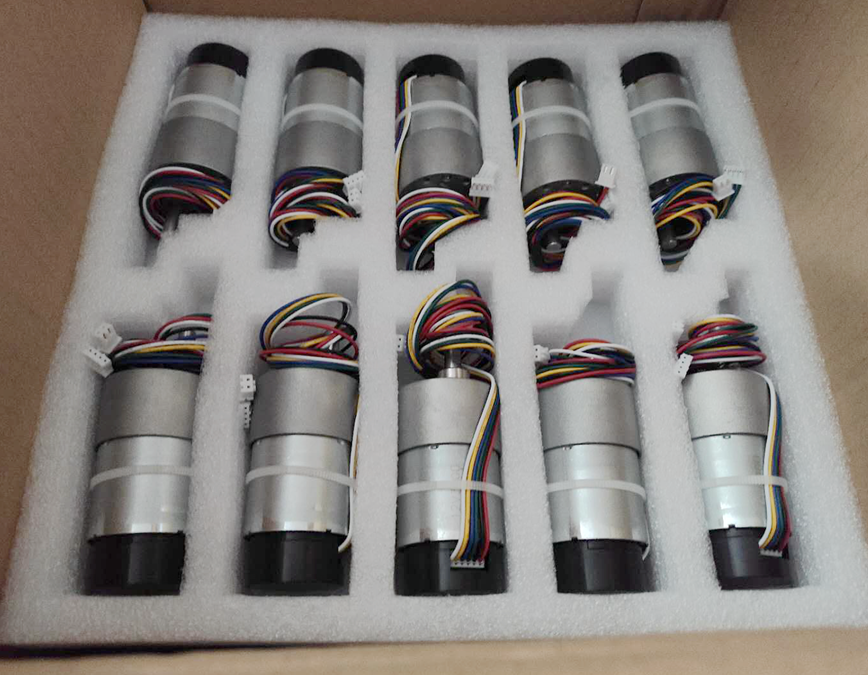

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

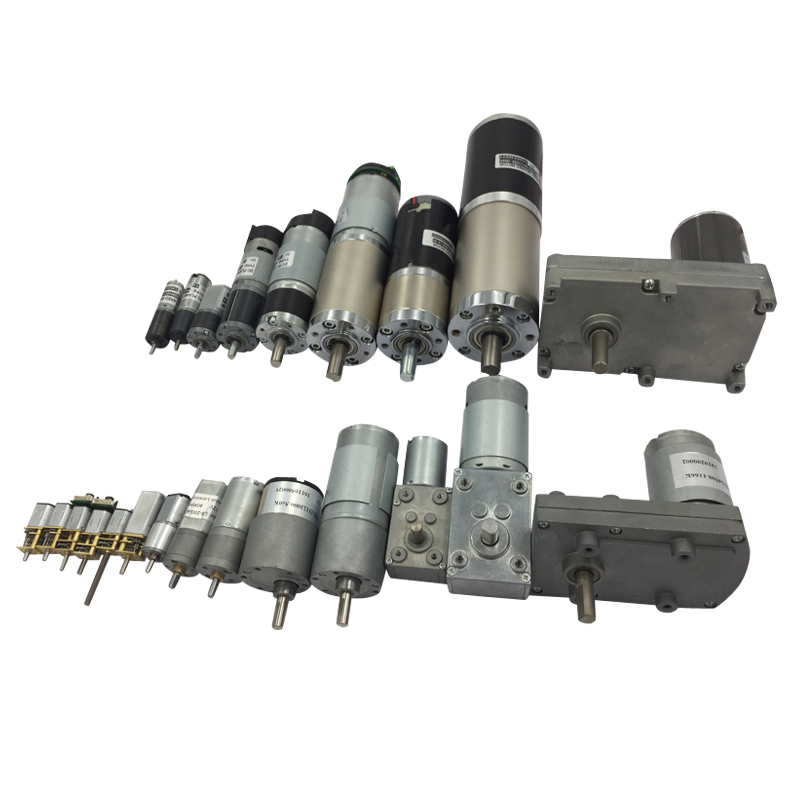

Manufacturing Capacity

Professional Micro Motor Manufacturer for 10 Years

✔ Brush Dc Motor: Φ6mm—Φ60mm

✔ Brushless Dc Motor: Φ12mm-Φ42mm

✔ Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm

✔ Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm

✔ Stepper Dc Motor: Φ6mm—Φ24mm

✔ Vibration Dc Motor: Φ4mm—Φ45mm

✔ Voltage Range: DC1.5V-220V, AC 110V-240V

✔ Speed Range: 0.1-80,000RPM

✔ Output Torque: 0.01-500Kg.cm

✔ Gearbox Ratio: 1:4 to 1:5000

Frequently Asked Questions

Question 1: What's your main products?

Answer: Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.

Question 2: What's the main usage of the micro dc gear motor?

Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industry, High-class toys, Banking Systems, Electronic and electrical tools, automation industry, vending machines, and electric power locks.

Question 3: Do you accept customization?

Answer: Sure. As we have a strong design team, any technical requirements or customization needs will be addressed by our engineering staff.

Question 4: What kind of data do I need to provide if I want to order?

Answer: Please kindly provide us with your required voltage, speed, torque, and overall dimension requirements.

Question 5: What if I don't know the specific motor data?

Answer: Please contact our sales team and tell us your application requirements; we will recommend the best fit model for your needs.

Question 6: How do you ensure product safety during delivery?

Answer: We provide professional, environmentally friendly, convenient, and efficient packaging services to ensure the maximum safety of your goods during transit.
