24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
1 / 5
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree
24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree

24mm 3v 6v Gm24 Dc Gear Motor, GM24-N20 Gear Motor 24mm Right Angle Gear Motor 90 Degree

Send Inquiry

Product Description

📋 Product Overview
Model Number DGA24-N20 Type Micro Motor
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance Certification ROHS, ISO
Torque 100-3500 G.cm Construction Permanent Magnet
Commutation Brush Speed(RPM) 6-1000 RPM
Voltage(V) 1.5-12 V Output Power 1-5 W
Shaft Dia 2.0mm Weight 10g
Efficiency IE 1 (Max 68.3%) Application Electric lock, Robot
⚙️ Technical Specifications
✔ 24mm GM24 DC Gear Motor, Right Angle 90 Degree
✔ Rated Voltage Range: 1.5-12V
✔ Speed Range: 10-2000 RPM
✔ Encoder Compatibility: Can be equipped with encoder
✔ Reduction Ratios: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000
✔ Features: Low noise, low current, and no spark performance
🖼️ Product Display

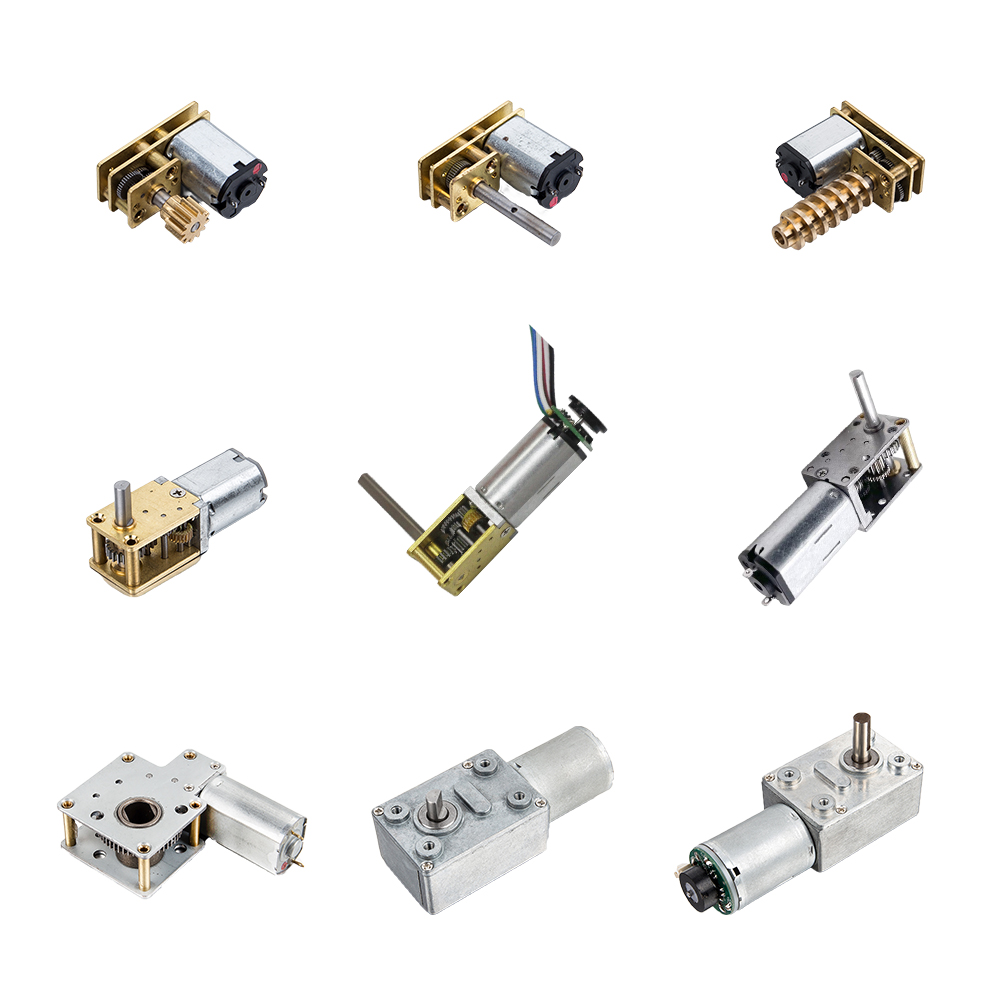

DC Gear Motor GM24-N20

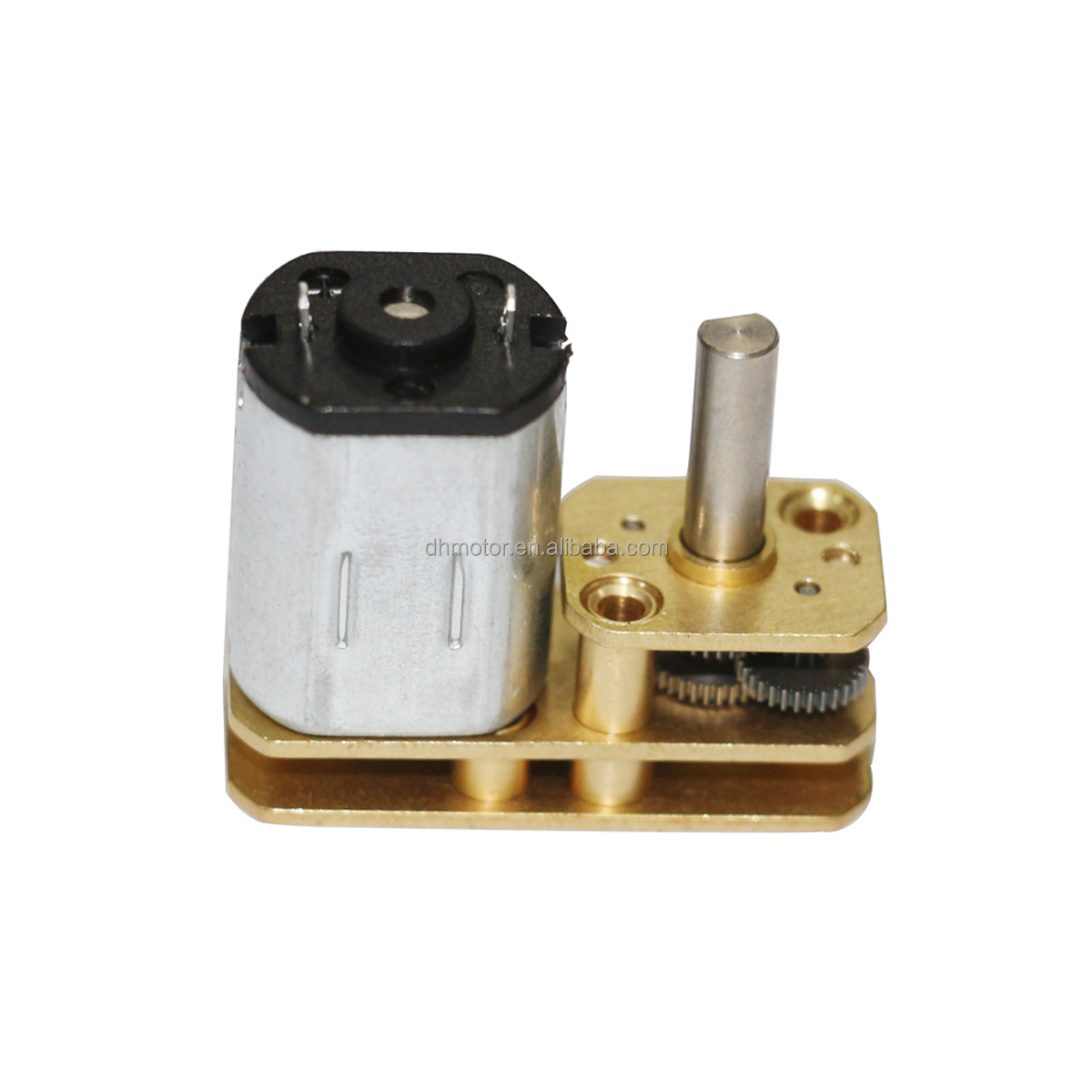

24mm Micro DC Brush Gear Motor

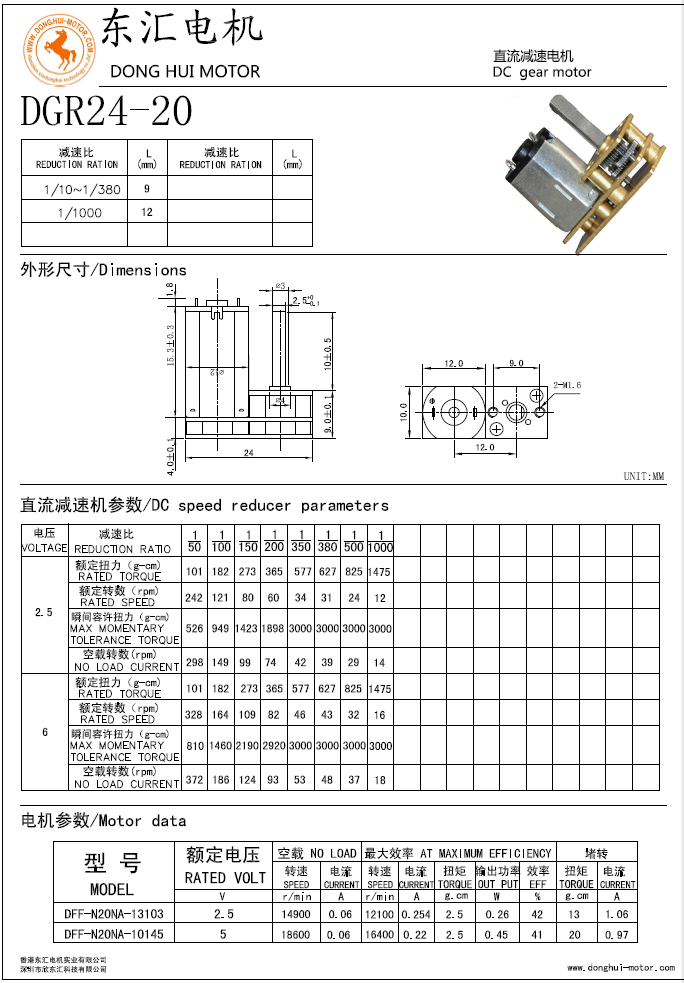

90 Degree Gear Motor Dimensions
📦 Packaging & Shipping
● Packaging Details: 80PCS/TRAY, 1200PCS/CTN
● Carton Dimension: 11 * 9 * 6.75 INCH
● Delivery Time: Within 25 days
Production Facility 1
Production Facility 2
Production Facility 3
Frequently Asked Questions
1. What is the typical voltage range for the GM24-N20 gear motor? This micro DC gear motor operates efficiently within a voltage range of 1.5V to 12V DC.
2. What are the primary applications for this 90-degree gear motor? It is widely used in robots, electronic locks, automatic shutters, USB fans, slot machines, money detectors, and household appliances.
3. Are there different reduction ratios available? Yes, we offer multiple reduction ratios including 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000 to meet various speed and torque requirements.
4. Can this motor be customized with an encoder? Yes, the DGA24-N20/N30 series can be equipped with an encoder for precise control and feedback.
5. What is the standard lead time for bulk orders? The standard delivery time is generally within 25 days, depending on the order volume and customization requirements.
6. Is there a minimum order quantity (MOQ) for samples? We can provide samples for testing first. The standard MOQ for production orders is 100 pieces.
