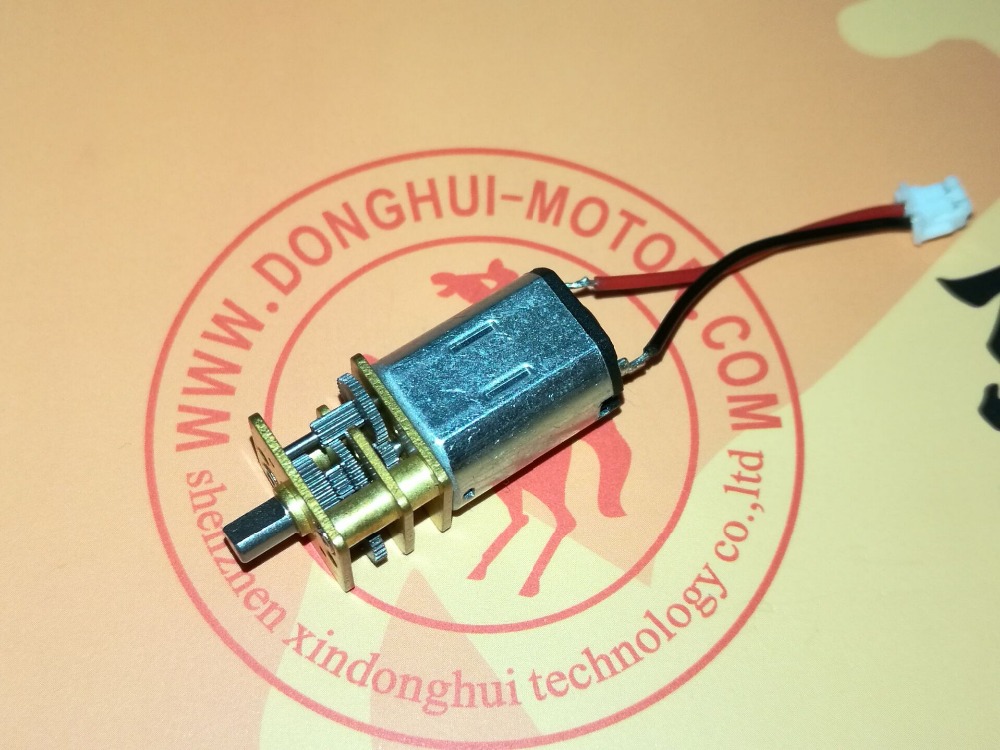

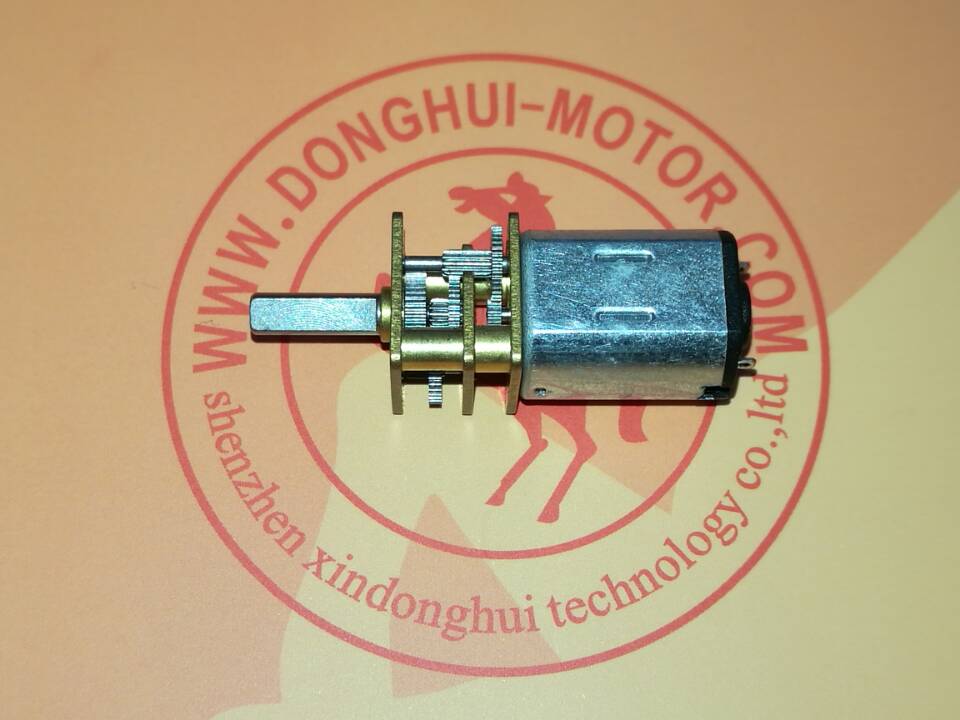

DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch

1 / 5

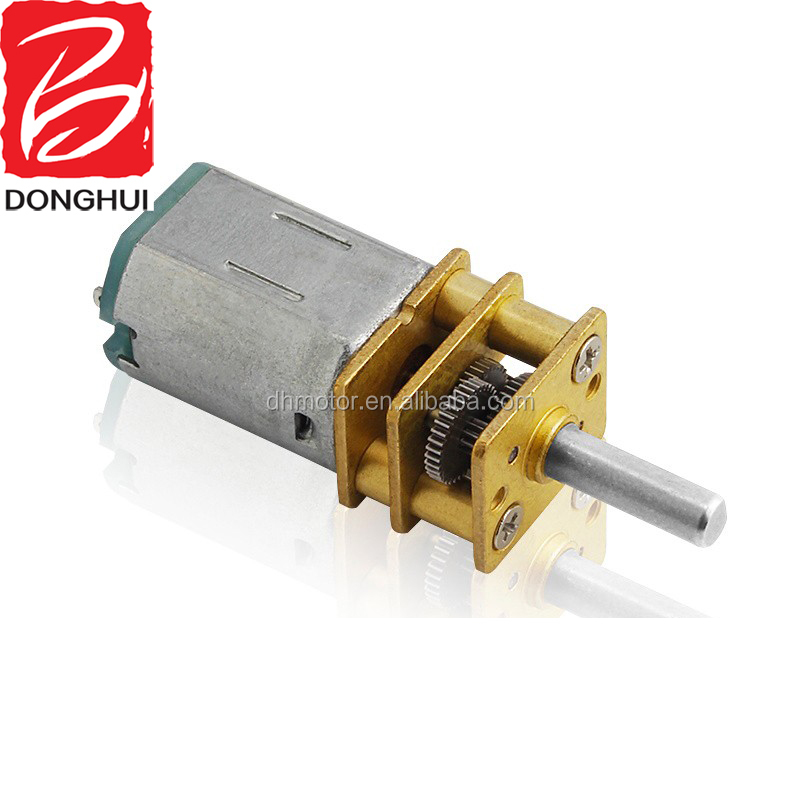

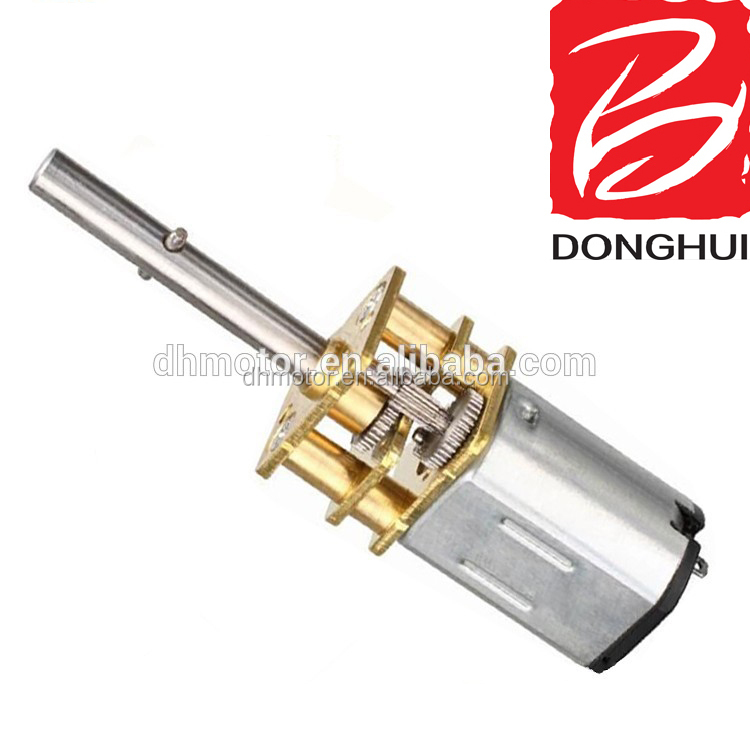

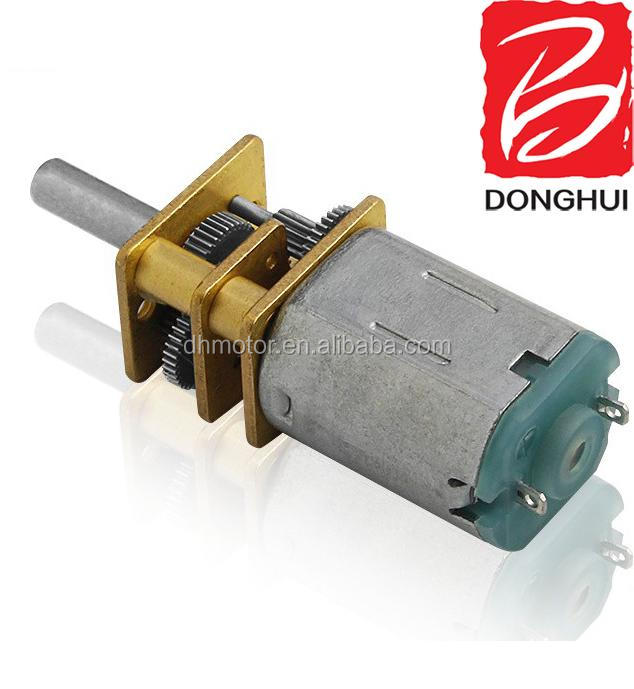

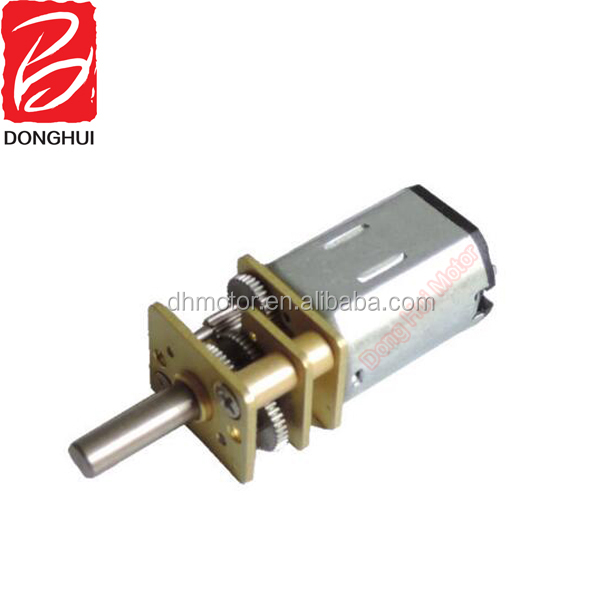

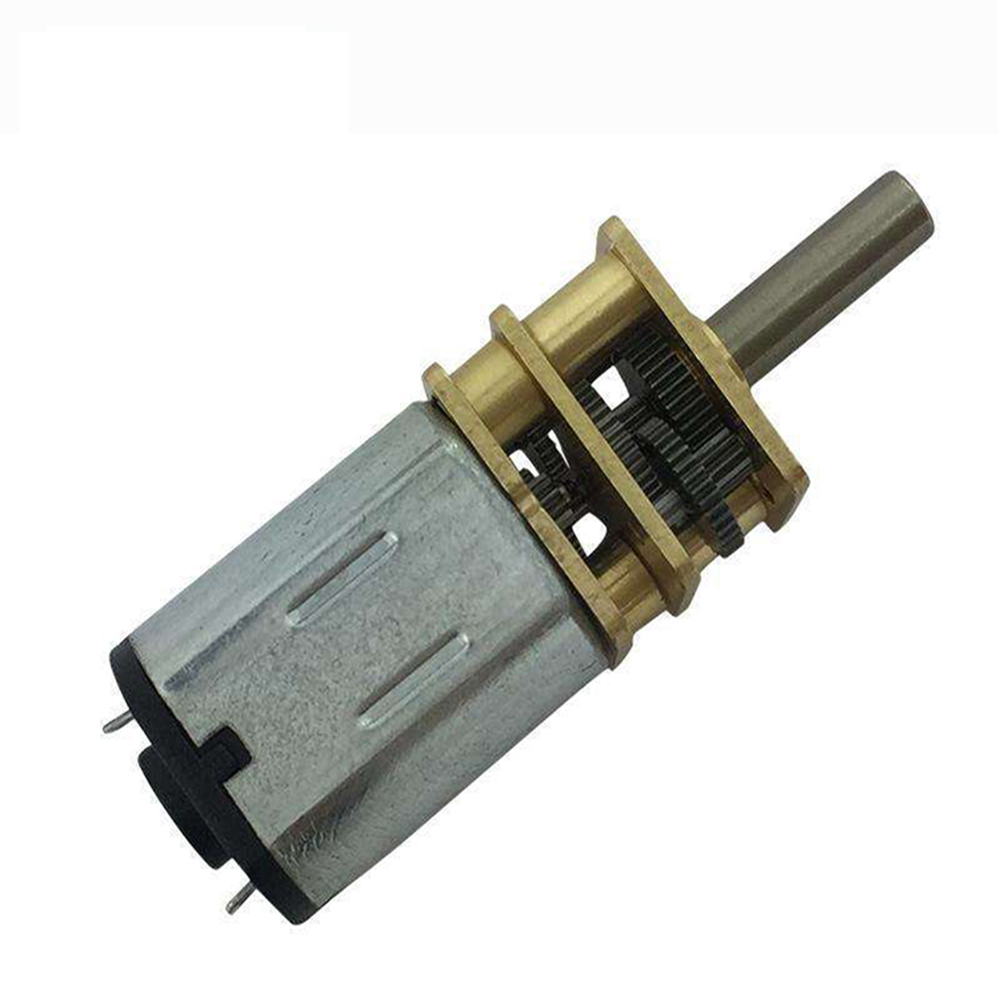

DGA12-N20 12mm 3v 5v 6v 12v Dc Gear Motor for Door Switch

Send Inquiry

Product Description

📋

Product Description

Quick Details

Place of Origin:	Guangdong, China (Mainland)	Model Number:	DGA12-N20
Usage:	Boat, Car, Electric Bicycle, Fan, Home Appliance	Certification:	ROHS, ISO
Type:	Micro Motor	Torque:	300 G.cm
Construction:	Permanent Magnet	Commutation:	Brush
Protect Feature:	Drip-proof	Speed(RPM):	56 RPM
Continuous Current:	0.12A	Output Power:	0.3 W
Voltage(V):	6 v	Efficiency:	IE 1
Shaft:	Dia 2.0mm	Weight:	10g
No load speed:	71 rpm	Max efficiency:	68.3%
Brush:	metal brushes	Style:	12mm dc gear motor

⚙️

Specifications & Features

Brush DC motor, DC gear motor, DC brushless motor

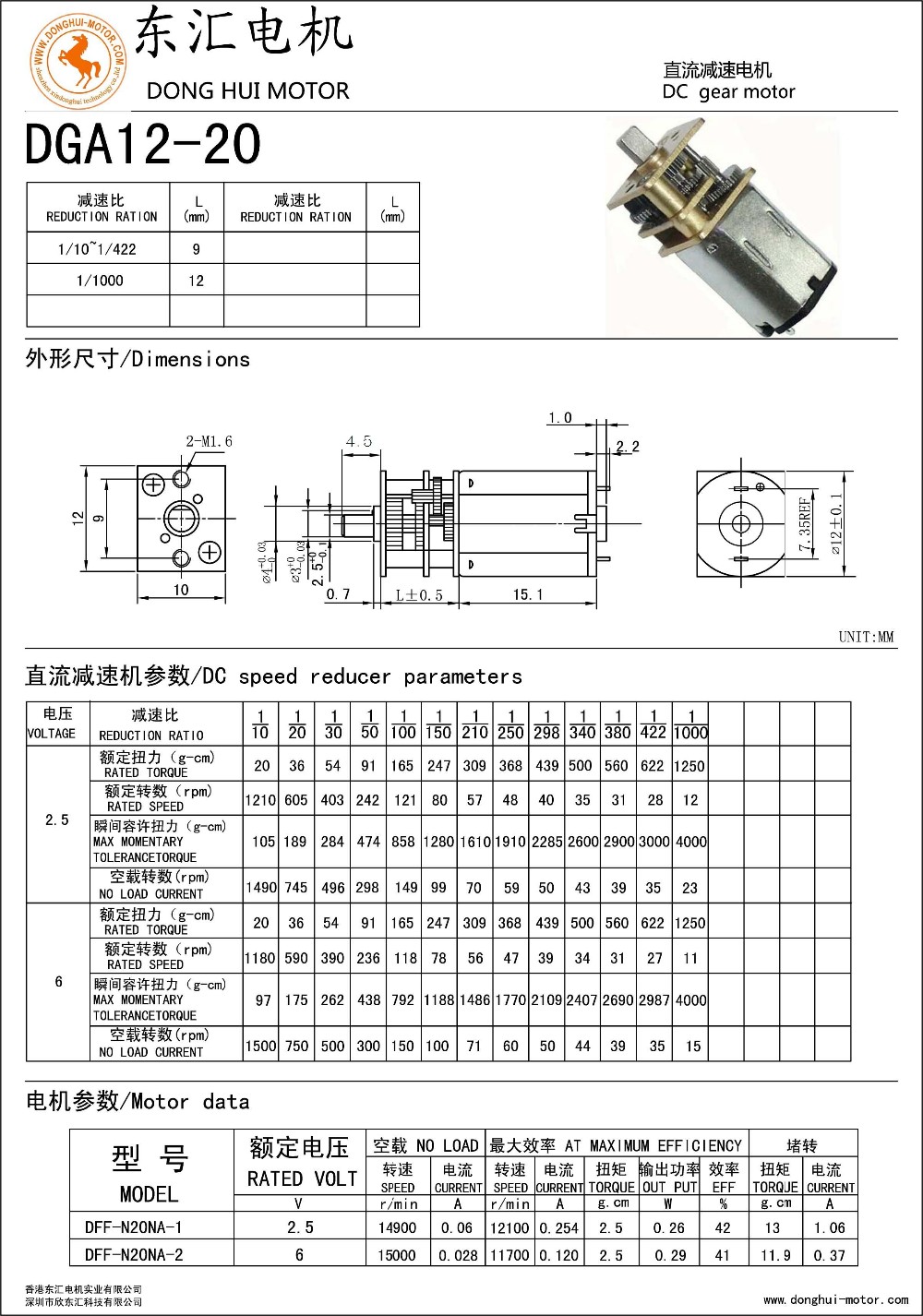

DGA12-N20 Technical Specs

Rated Voltage: 1.5-12V
Speed Range: 10-2000RPM
Configuration: Can be equipped with encoder
Application: Widely used in robot and intelligent locks
Design: 12mm 5v spur gear motor for intelligent door switch
Noise Level: Low noise, low current and no spark
Reduction Ratio Options: 1/3, 1/50, 1/100, 1/298, 1/300, 1/1000
Compact Size: 12.0*24.0*10.0mm, ultra-micro design

📸

Product Gallery

📦

Packaging & Shipping

Packaging Details:	80PCS/TRAY, 1200PCS/CTN, CARTON DIMENSION: 1196.75 INCH
Delivery Detail:	Within 25 days

🏭

Production Capabilities

Expertise in development and production of micro motors across 4 major series:

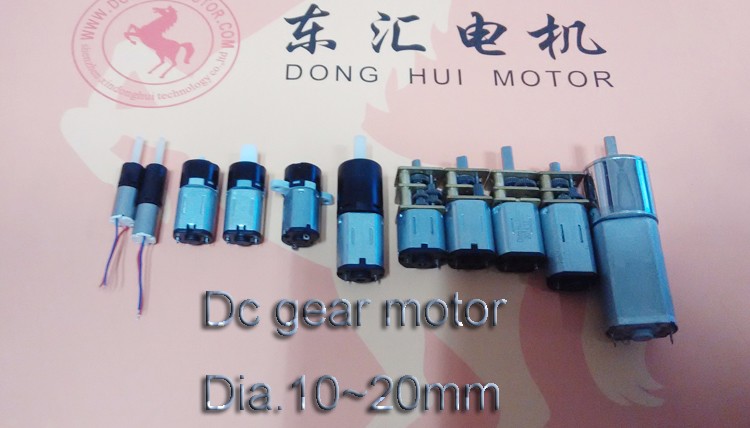

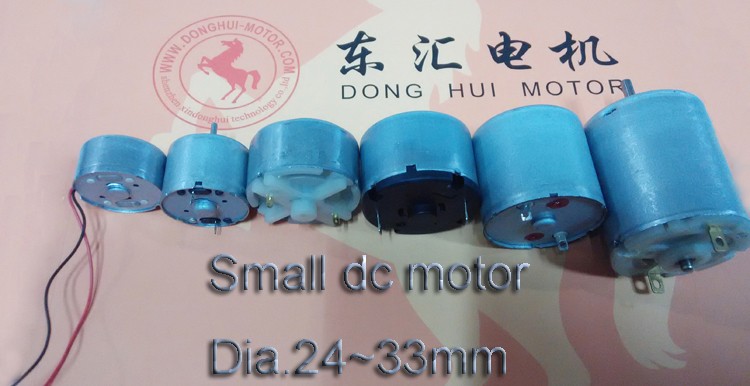

Micro DC motor & DC gear motor
Coreless motor & Brushless motor
Voltage Range: 1.5V - 42V (AC rectify options: 100V-240V)
Speed Range: 1 RPM - 30,000 RPM
Stall Torque: 1g.cm - 30kg.cm
Product Diameter: 4mm - 100mm

❓

Frequently Asked Questions

Q1: What is the rated voltage range for the DGA12-N20 motor? A1: The rated voltage ranges from 1.5V to 12V, making it versatile for various low-power electronic applications.

Q2: Can this micro motor be used for high-precision equipment? A2: Yes, it is widely used in precision instruments, robots, intelligent locks, and medical equipment due to its stable performance and low noise.

Q3: What reduction ratios are available for the gear system? A3: We offer multiple reduction ratios including 1/3, 1/50, 1/100, 1/298, 1/300, and 1/1000 to meet different speed and torque requirements.

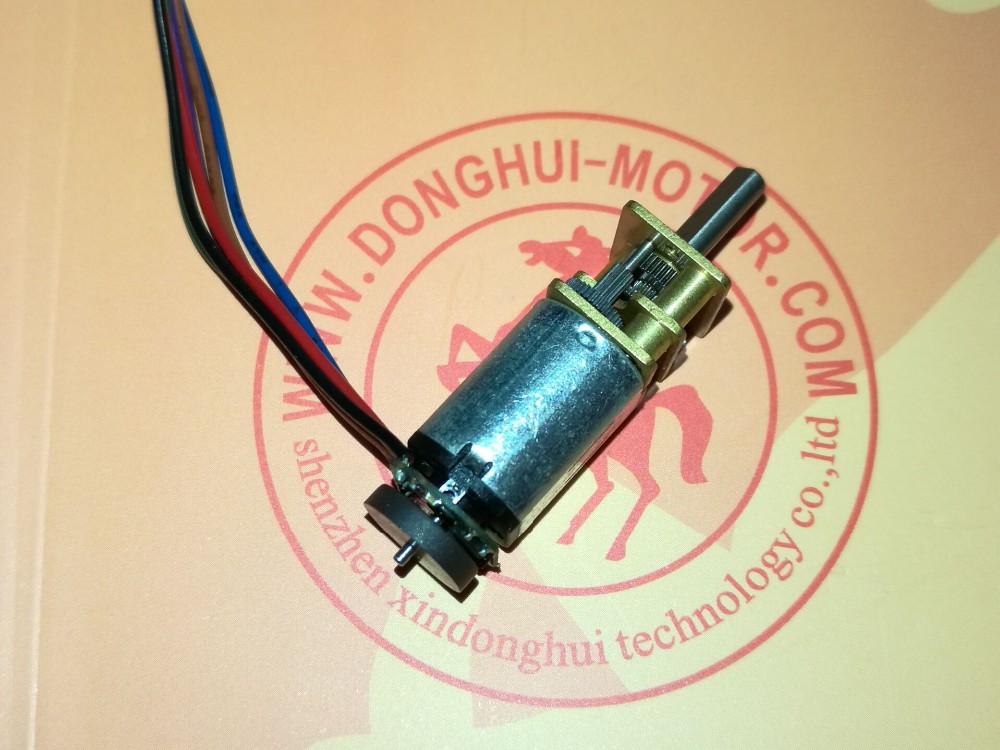

Q4: Is the motor compatible with encoders? A4: Yes, the DGA12-N20 model can be equipped with an encoder for applications requiring precise position and speed feedback.

Q5: What are the standard packaging specifications? A5: The standard packaging is 80 pieces per tray and 1200 pieces per carton, with carton dimensions of approximately 11*9*6.75 inches.

Q6: What is the typical lead time for an order? A6: For standard orders, the delivery time is generally between 15 to 25 days depending on the customization requirements.
