Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
1 / 5
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock
Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock

Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock

Send Inquiry

Product Description

Product Description

Quick Details

Place of Origin
Guangdong China (Mainland)
Model Number
FC 280
Usage
Car, Scanner
Certification
ROHS
Type
Micro Motor
Torque
48G.CM
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Closed
Speed(RPM)
12500rpm At No load Speed
Continuous Current(A)
0.1-5A
Output Power
1-6W
Voltage(V)
12V
Efficiency
IE 1
Bearing
TBD
End Cap
Plastic End Cap
Stator and Slots
2-Pole stator and 3-Slot armature
Brush Type
Carbon brushes
Bearing Type
Oil-impregnated bearing
Rotation
Reversible

Packaging & Shipping

Packaging Details: 500PCS/CTN, CARTON DIMENSION: 39X29X46 CM
Delivery Detail: Within 30 days

Our Services

Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock

Specifications:

12v DC Mini Motors FC 280 Motor for Car Door Lock

12V FC 280 MICRO DC CAR MOTOR

  • ROHS Certification
  • Permanent Magnet
  • Plastic End Cap
  • Low noise and long life

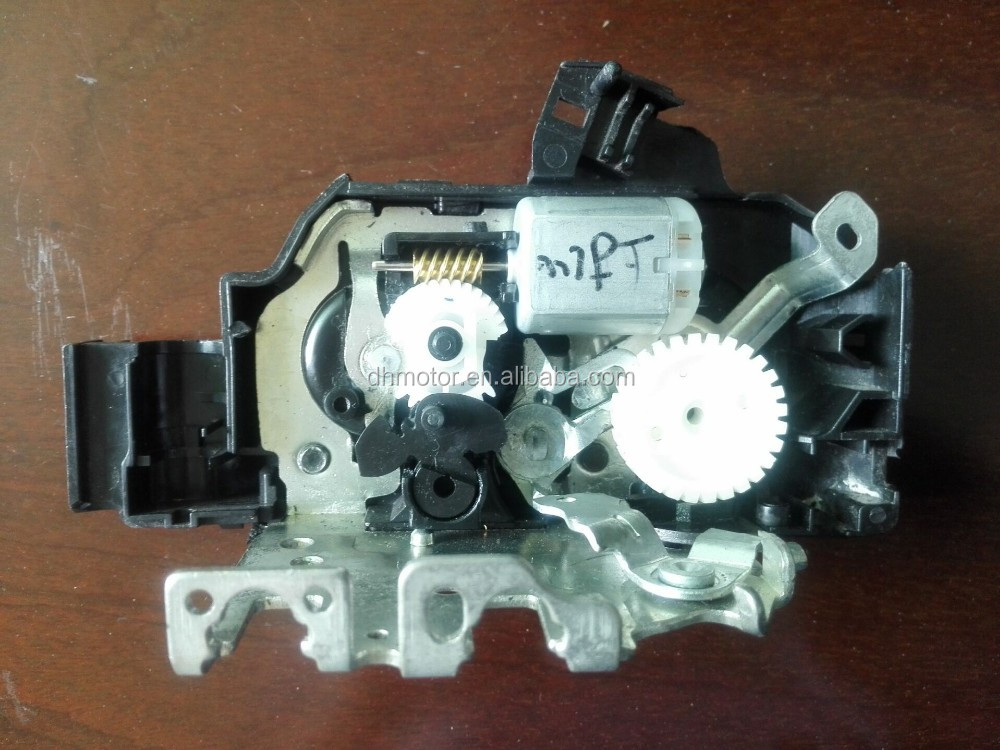

Application: Door lock Actuator, Automotive Product

Product Photos:

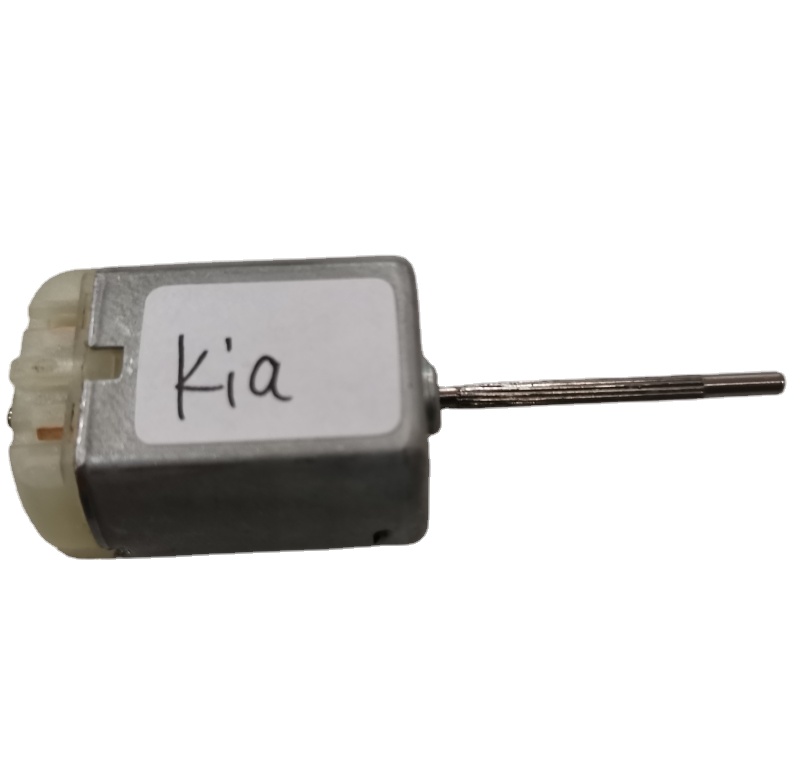

12v dc electric motor micro dc car motor for car

Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock

Outline Drawing and Basic Parameters

Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock

Company Information

Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock Land Rover Car Door Lock Motor 12v Dc Mini Electric Motor Fc 280 Motor for Car Door Lock

Since established in 2003, has been committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance, office automation equipment, medical equipment, power tools, automotive and other fields. Learn More About us:

  • Our main products: Dia4~100mm DC Micro Motor, Auto dc motor, Electric motor, Coreless Brushless motor, Gear Motor, DC Motor, Brush DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
  • Products size range: Diameter: 4-100mm
  • DC Voltage range: 1.5V - 42V (AC rectify: 100V, 110V, 220V, 230V, 240V etc.)
  • Speed range: 1 RPM - 30,000RPM
  • Stall torque: 1g.cm - 30kg.cm
  • Application fields: Home appliance, Power Tools, Toys & Model, Precision Instrument, Office equipment, Personal care product, Automotive, Audio & Visual equipment etc.

Frequently Asked Questions (FAQ)

What are the primary applications for the FC 280 micro motor?
The FC 280 micro motor is widely utilized in automotive products such as door lock actuators, as well as in electronic scanners and other precision equipment.
What is the standard operating voltage and power range of this motor?
The standard operating voltage is 12V DC, and it provides an output power ranging from 1W to 6W, depending on the specific load requirements.
Does this micro motor support bidirectional rotation?
Yes, the FC 280 motor features a reversible rotation design, allowing it to operate efficiently in both clockwise and counter-clockwise directions.
What certifications and safety features does this product hold?
The motor is ROHS certified and features a closed protective structure, combined with permanent magnet construction and high-quality carbon brushes to ensure long-lasting durability and low operational noise.
What are the packaging specifications and standard delivery time?
The standard packaging is 500 pieces per carton, with carton dimensions of 39x29x46 cm. The typical delivery timeline is within 30 days.
