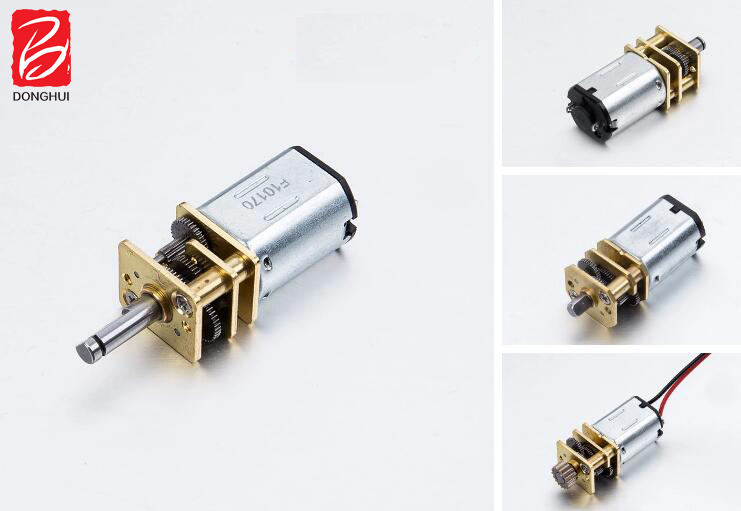

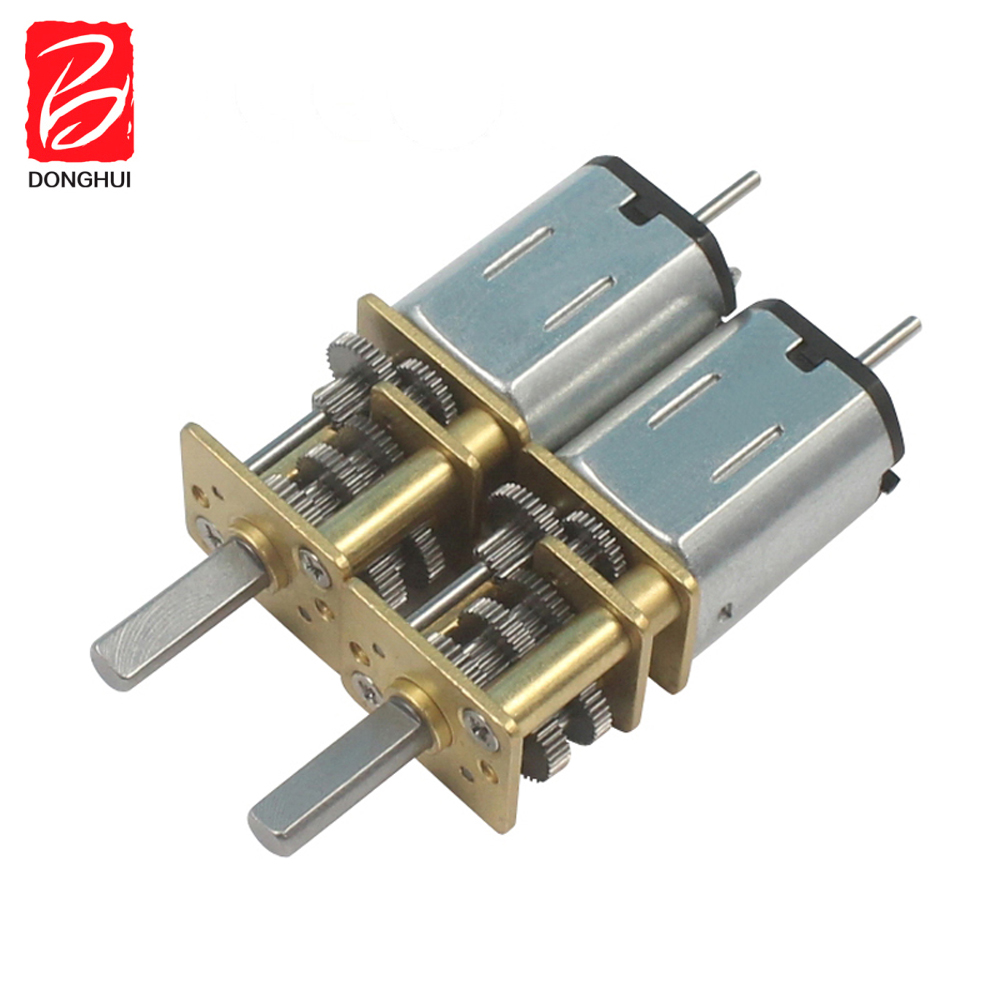

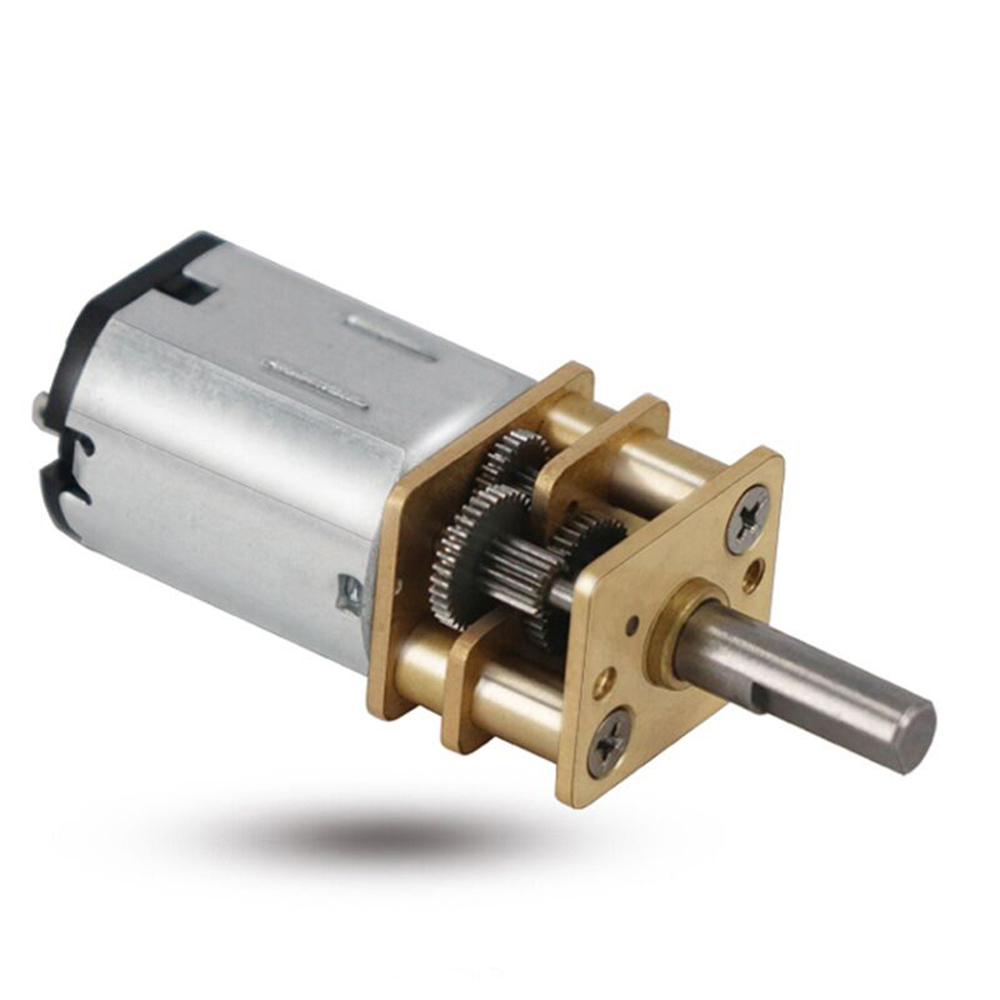

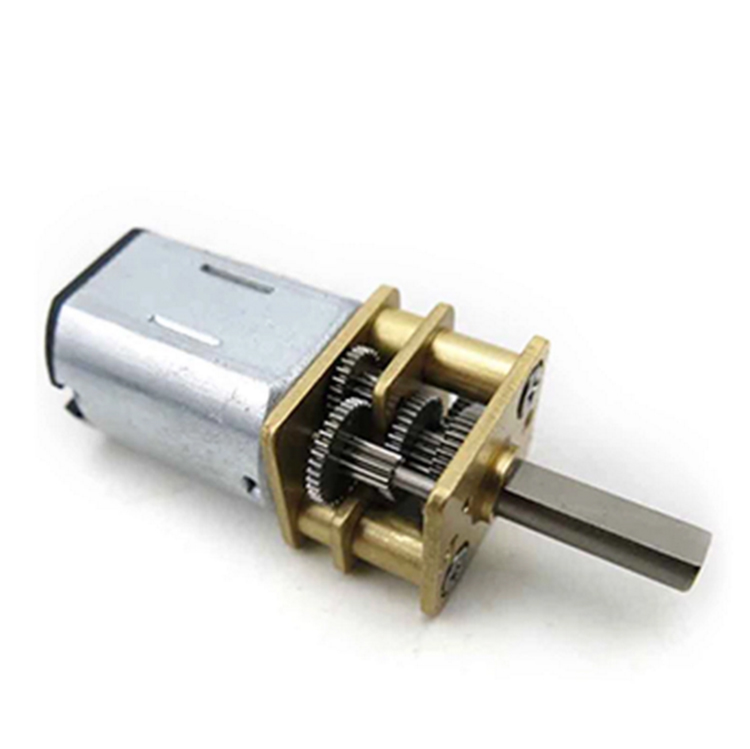

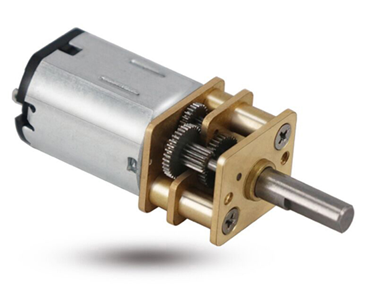

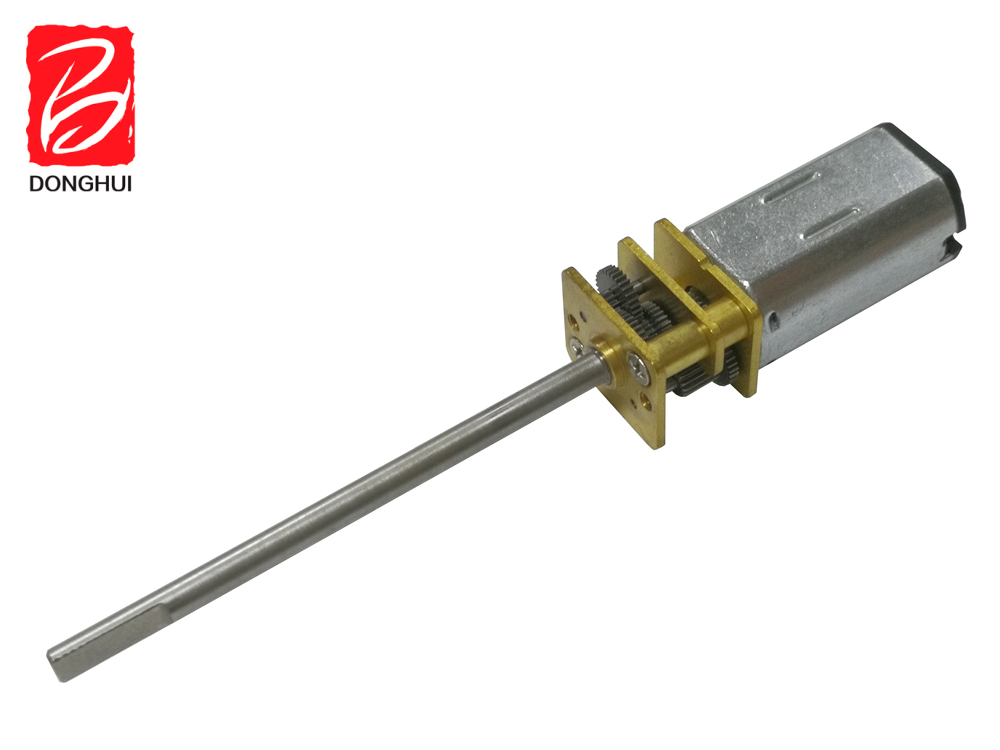

High Torque 1kg.cm 50rpm 100rpm 150rpm Micro 3v 6v 12v DC Gear Motor

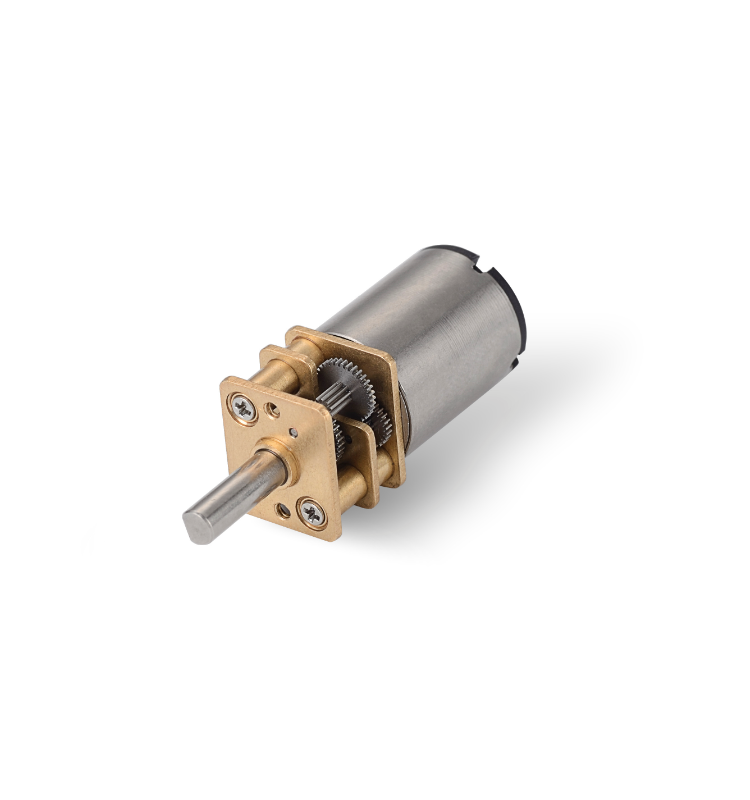

| Specification | 12mm 6V 12V DC Gear Motor |
| Voltage (V) | 2.4v 3v 4.5v 5v 6v 12v 24v |
| Speed (RPM) | 10 20 30 45 50 60 100 200 500 (Can be customized) |
| Load Torque | 200g.cm ~ 1000g.cm |
| Stall Torque | 600g.cm ~ 3000g.cm |
| Shaft Length | 10mm or Customized |
| Gear Ratio | Customize from 1/5 to 1/1000 |
| Accessory | Can be equipped with encoder |
| Feature | Low noise, High torque, Energy saving, EU environmental standards |
| Application | Smart Lock, 3D Printing Pen, Intelligent Robot, Smart Toy, etc. |

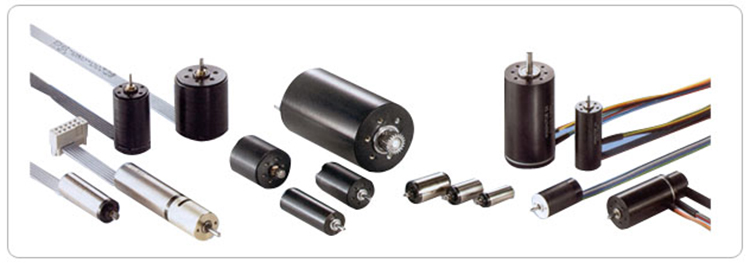

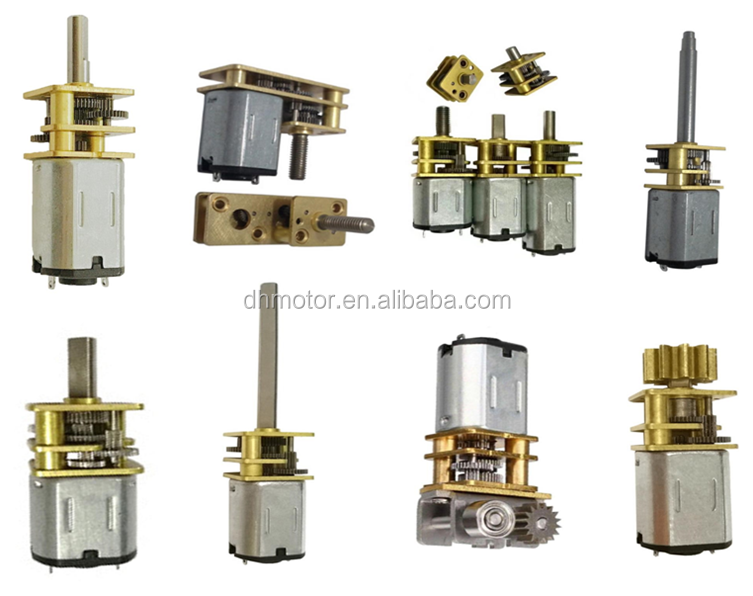

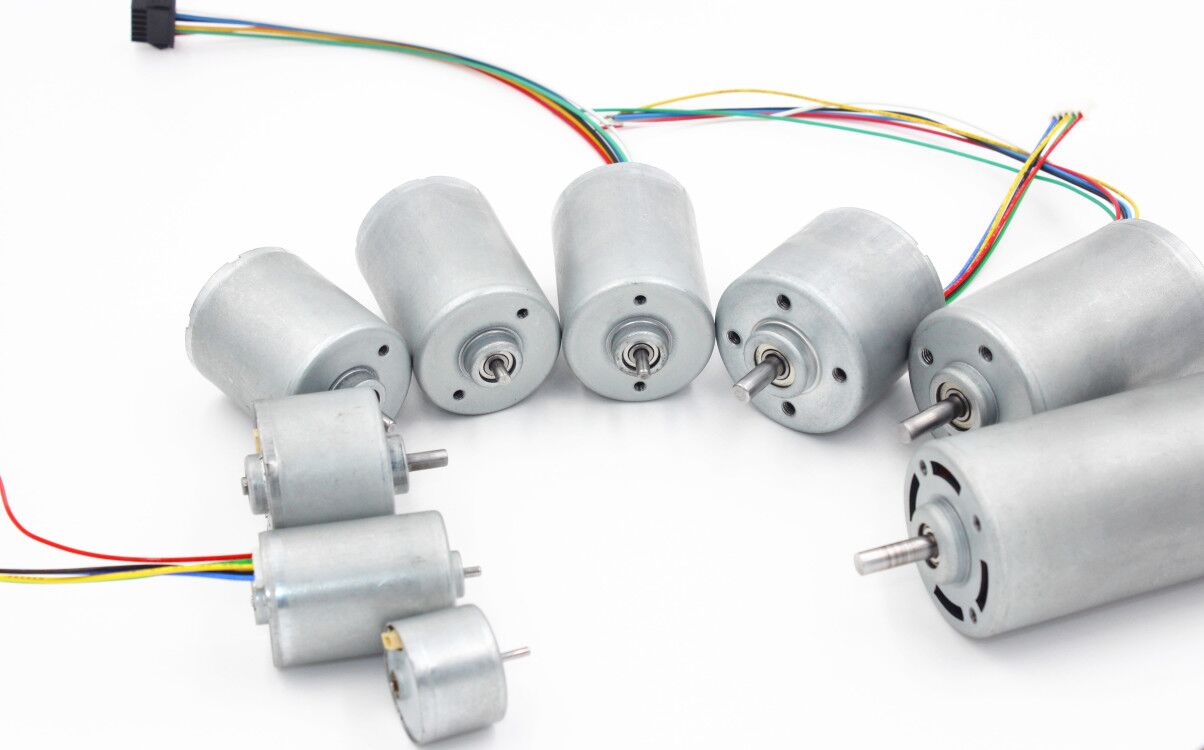

We also offer: Brush motors, Brushless motors, Spur gear motors, and Planetary gear motors.
Ready Time: 10~15 days for samples; 20 days for mass production.
Delivery: 3~5 days by DHL/UPS/Fedex; 7~10 days for standard orders.

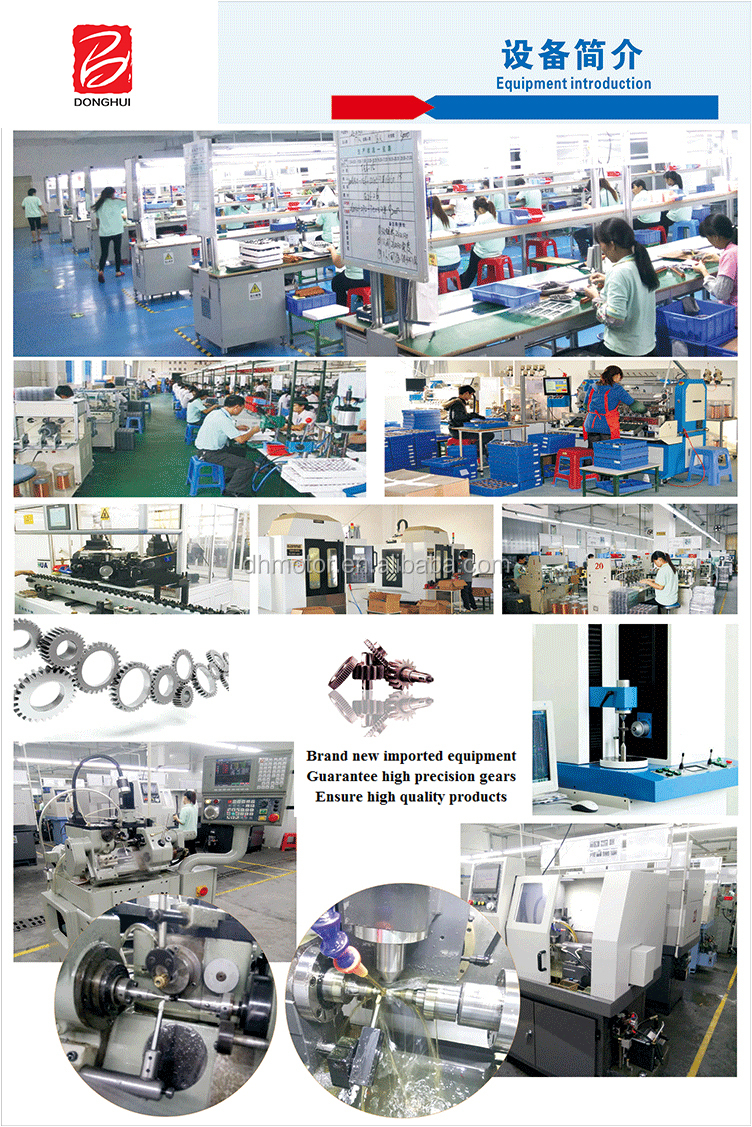

Founded in 2001, we are a professional designer and manufacturer of micro DC motors, DC gear motors, and DC brushless motors. Our motors are designed to be quiet, high torque, and durable with numerous sizes and options.
Our products are widely used in cars, electronic locks, smart home systems, robots, 3D printing, and security systems. 80% of our production is exported to Europe, North America, and Asia-Pacific markets.
