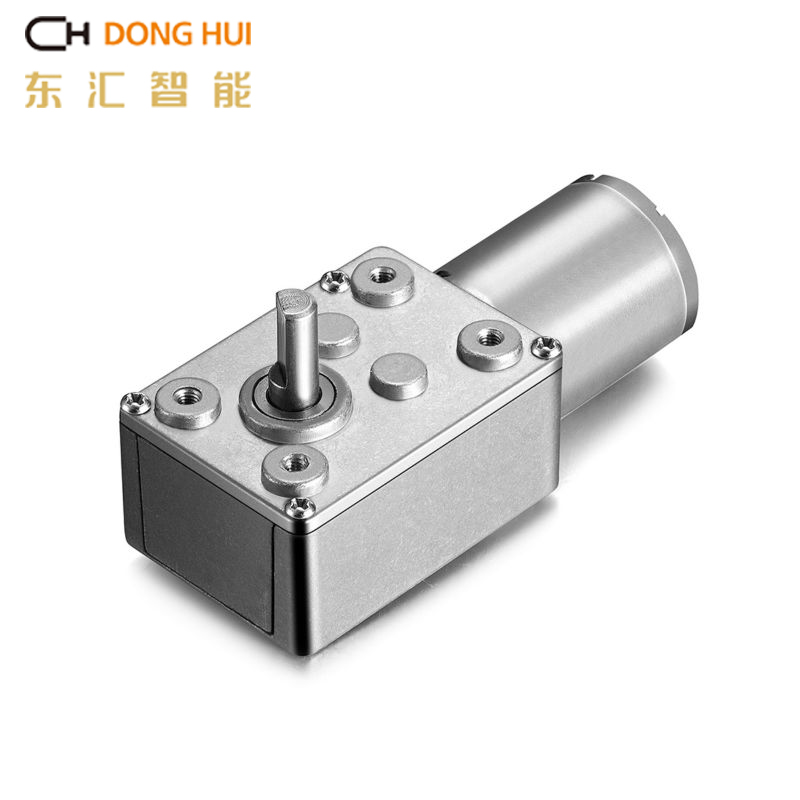

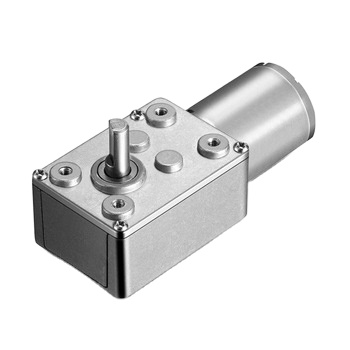

Parallel Shaft Gearbox BLDC 12V Worm Motor
Specification:
This Gear motor is assembled by BL2418 DC Brushless Motor and 24mm worm Gear Box.
BL2418 DC Brushless Motor Specification
- Rated Voltage: DC 12-24V
- 6200 RPM Max NO Load
- Diameter 24mm, length 18mm, shaft 2.3mm
- Weight: 85g Approx
24mm Worm Gear Box Specification
- Reduction Ratio: From 1/4 to 1/4000 (Customization available)
- Shaft Diameter: 6 mm (Customizable upon request)
- Optional: Can be equipped with encoder
- Weight: 80g Approx
Professional Production & Development
Founded in 2003, we are a private high-tech enterprise mainly engaged in the design, development, production, sale and service of precision DC motors and gear motors.
Our products are widely applied to robots, intelligent door locks, medical equipment, automobile systems, communication equipment, digital cameras and domestic appliances.
Key Advantages
- 13 years experience in DC motor and DC gear motor production
- Military enterprise quality assurance with high-precision gears
- Strong Production and R & D Ability
- 10 Years Export Experience worldwide
Frequently Asked Questions
Q1: What are your main products?

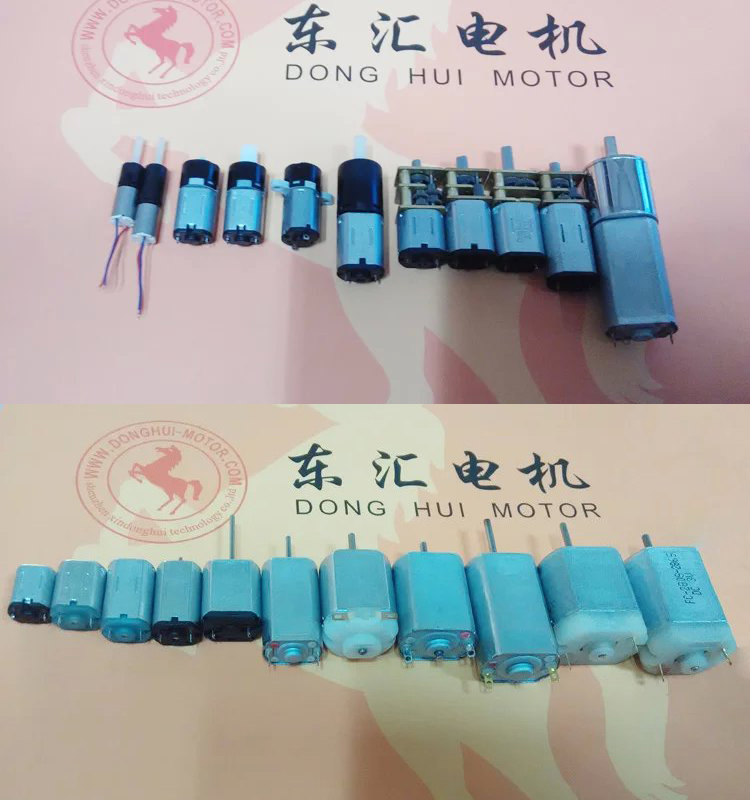

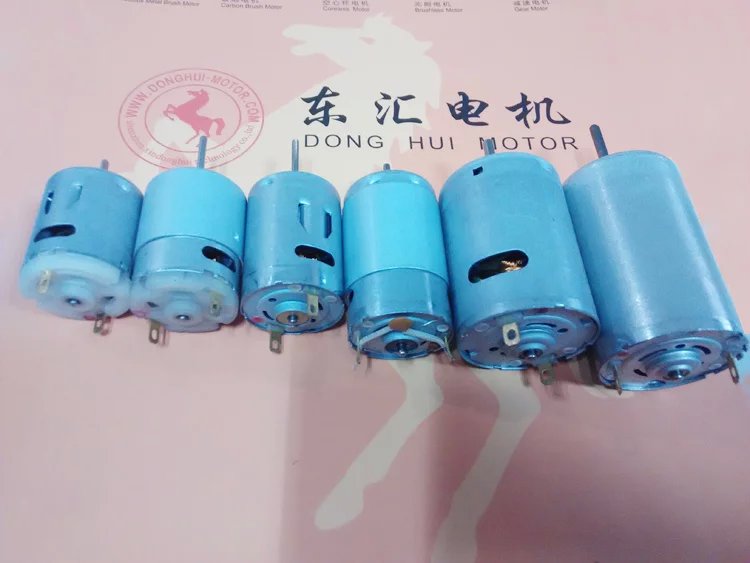

Answer: We provide Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, Electric motors, Brush DC motors, Brushless DC motors, Spur Gear motors, Micro Motors, and Vibration motors.
Q2: What is the main usage of the micro DC gear motor?
Answer: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industries, Banking Systems, automation industries, and electronic locks.
Q3: Do you accept customization for motor specifications?
Answer: Yes, we have a strong design team. We can customize reduction ratios (1/4 to 1/4000), shaft dimensions, and add encoders to meet your specific technical requirements.
Q4: What data do I need to provide for an order?
Answer: Please kindly provide the required voltage, speed, torque, and overall dimension requirements for your application.
Q5: What if I don't know the specific technical data?
Answer: Please contact our technical sales team. We will guide you through the selection process and answer your questions patiently to find the right solution.
Q6: Are the materials used in the gears reliable?
Answer: Yes, we utilize gear components from military-grade suppliers to ensure maximum quality assurance, durability, and high torque performance.
