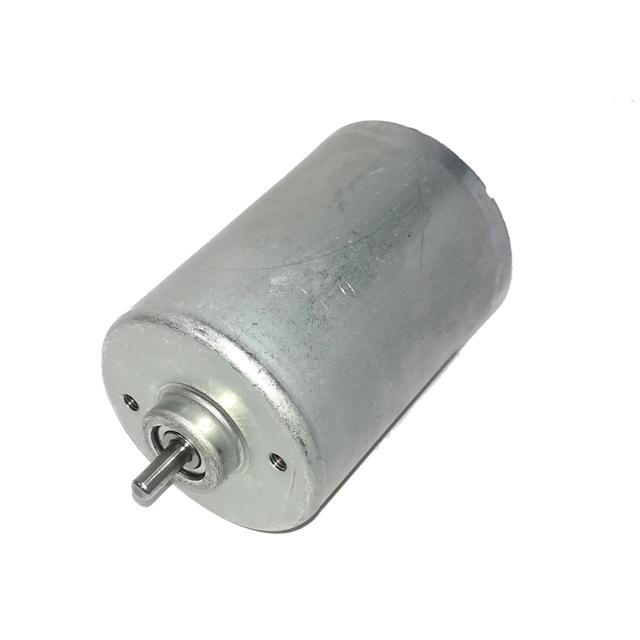

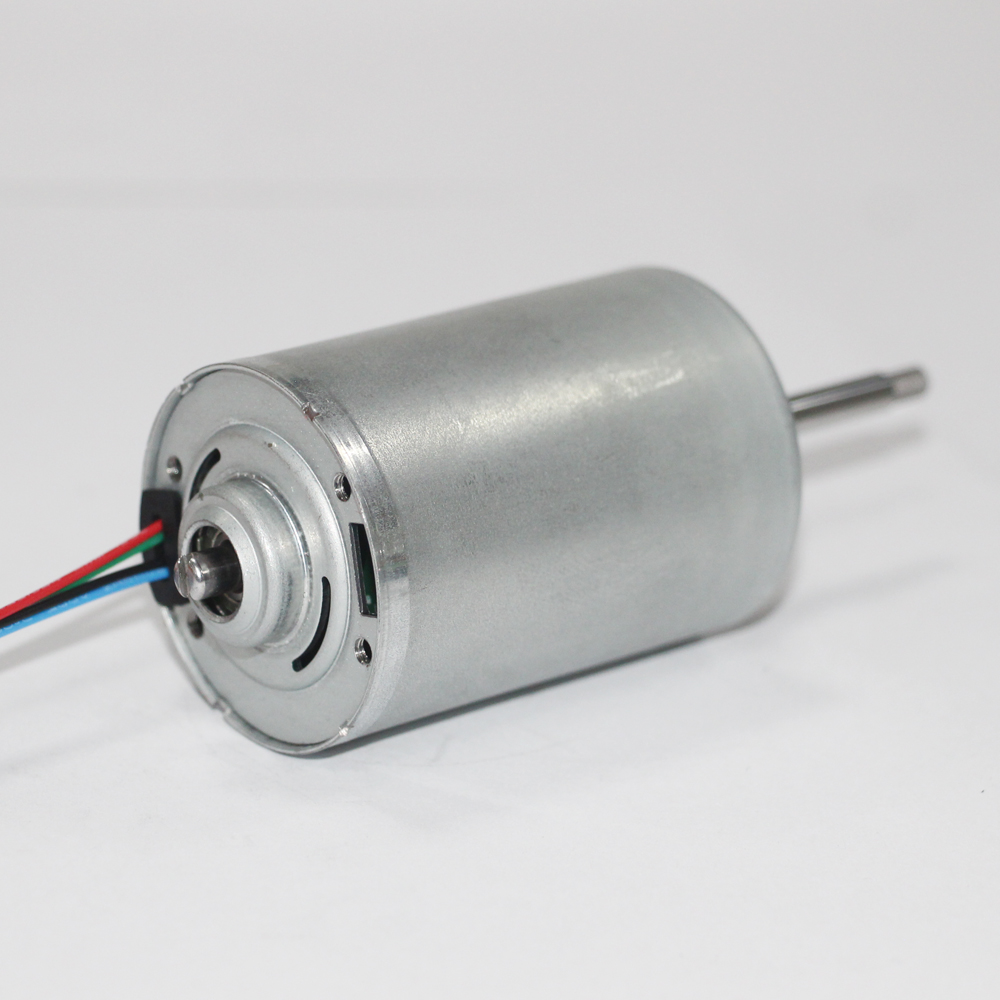

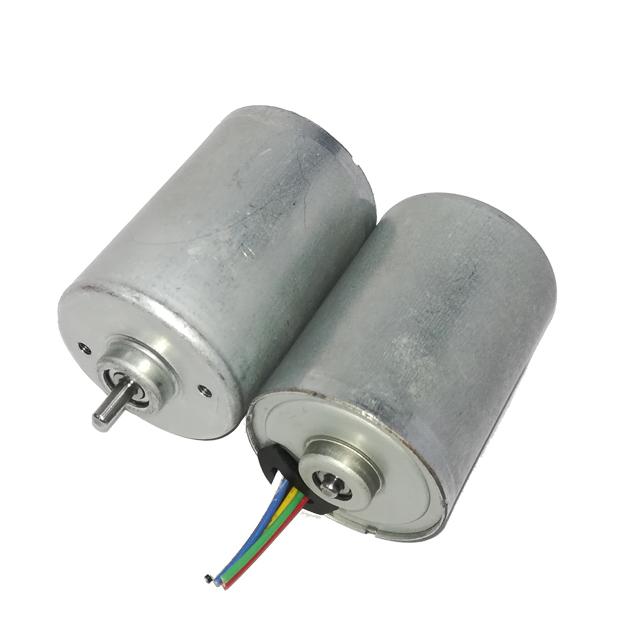

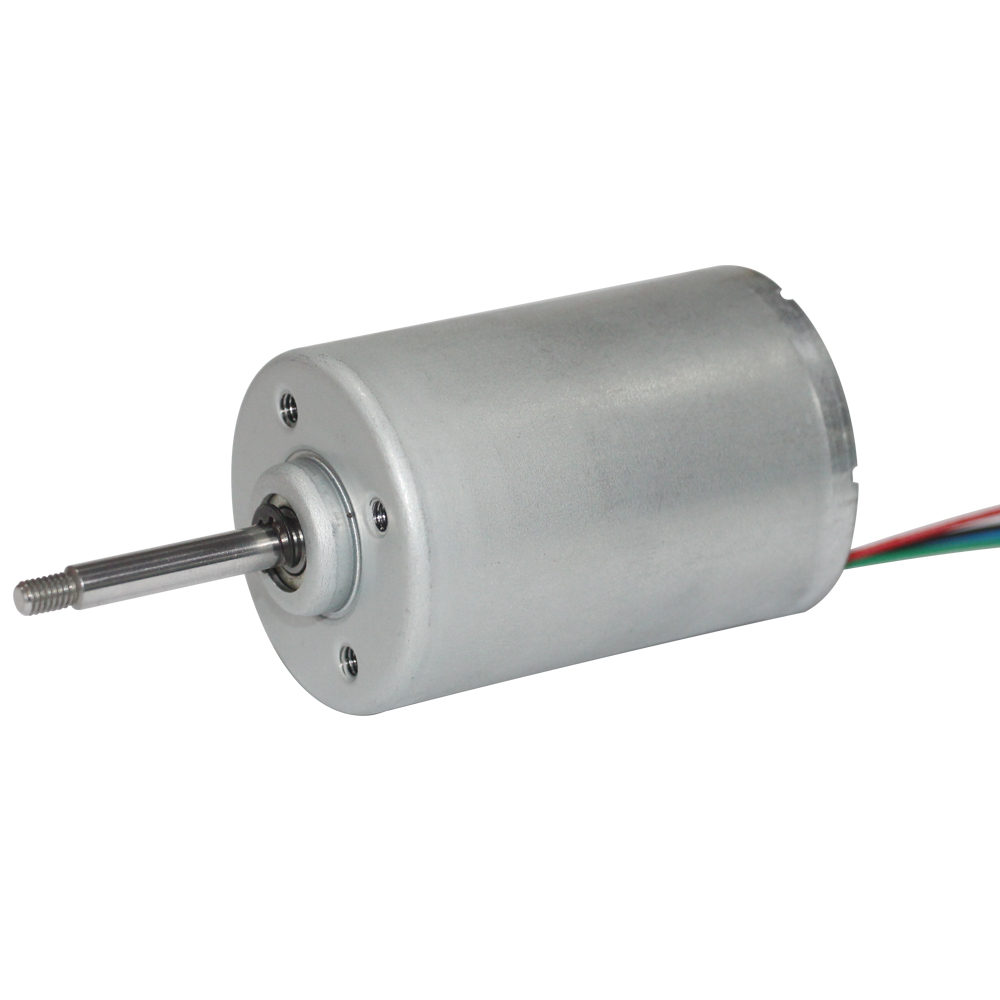

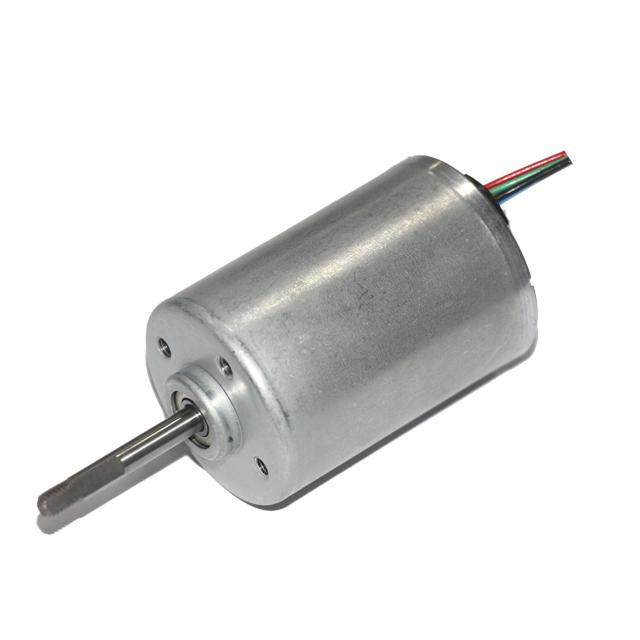

Vortex Motor
Vortex Motor

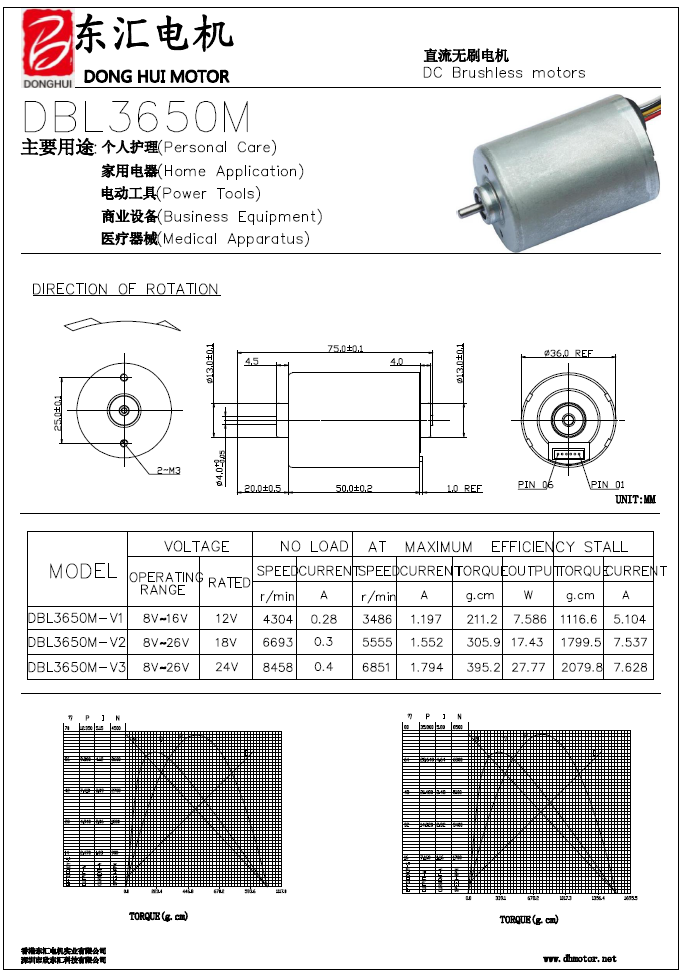

| Place of Origin | Guangdong China (Mainland) | Model Number | DB3650 |
| Usage | Fan, Home Appliance | Certification | ROHS |
| Type | Micro Motor | Torque | 25mNm |
| Construction | Permanent Magnet | Commutation | Brushless |
| Protect Feature | Drip-proof | Speed(RPM) | 3500rpm no load |
| Continuous Current(A) | 0.18A no load | Output Power | 1W~100W |
| Voltage(V) | 12V | Efficiency | IE 1 |
| Rated load speed | 3000rpm | Rated load torque | 25mNm |
| Rated load current | 0.58A | Starting torque | 162mnm |
| Starting current | 2.8A | Motor Length | 50±0.3mm |
| Shaft diameter | 4.0mm | Shaft length | Customizable |
| Application | Air pump |
DC motor, DC gear motor, DC brushless motor, OEM and provide motor product design.
Since the establishment in 2003, there has been a commitment to the development and production of micro motors, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, and brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, office automation, medical equipment, power tools, automotive, and other fields.
