42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
1 / 5
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260
42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260

42mm Brushless Dc Motor 12v 24v Low Rpm Bldc Motor High Torque 42mm Dc Brushless Motor 4260

Send Inquiry

Product Description

📊

Product Specifications

Place of Origin Guangdong China Model Number DB4260
Voltage(V) 12V Certification ROHS
Rated load speed 1700rpm Type Brushless motor
Rated load torque 480 g.cm Usage Boat, Car, Electric Bicycle
Starting current 6.18A Commutation Brushless
Output Power 8W Protect Feature Drip-proof
Starting torque 1734 g.cm Construction Permanent Magnet
No load speed 2000 rpm Shaft length Can be customized
No load current 0.15A - -
⚙️

42mm 12v High Torque BLDC Motor

  • Wide Applications: Widely used in robots, locks, auto shutters, USB fans, slot machines, and money detectors.
  • Commercial Use: Coin refund devices, currency count machines, towel dispensers, automatic doors, and peritoneal machines.
  • Office & Home: Automatic TV racks, office equipment, and various household appliances.
  • Performance: Low noise, low current, and no spark operation.
  • Reduction Ratios: Available from 1/10 up to 1/1000.
  • Ordering Info: MOQ is 100 pieces with a delivery time of 20-25 days. Samples are available for evaluation.
Note: Specifications are for reference only. Motor voltage, speed, ratio, torque, and shaft can be customized (Voltage: 3-12V, Speed: 10-3000rpm, Torque: 10-1000g.cm).
📸

Product Display

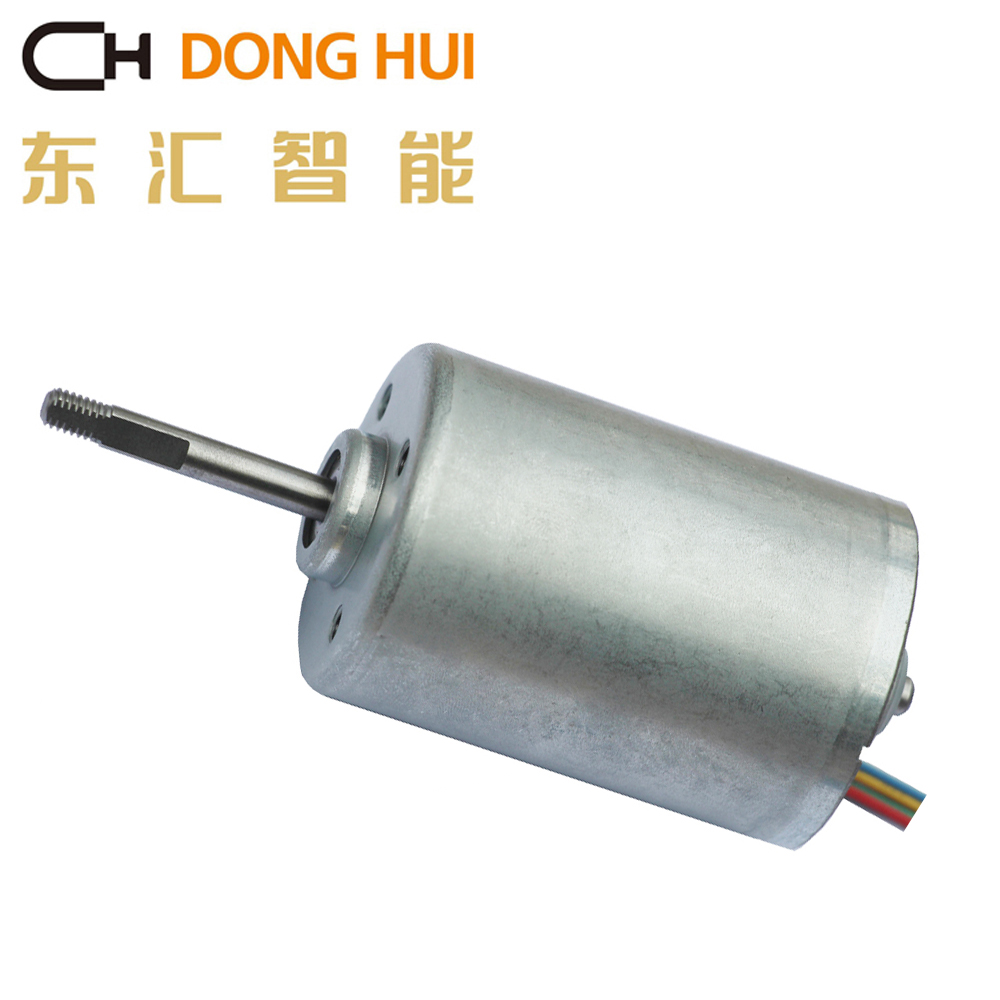

BLDC Motor Main View

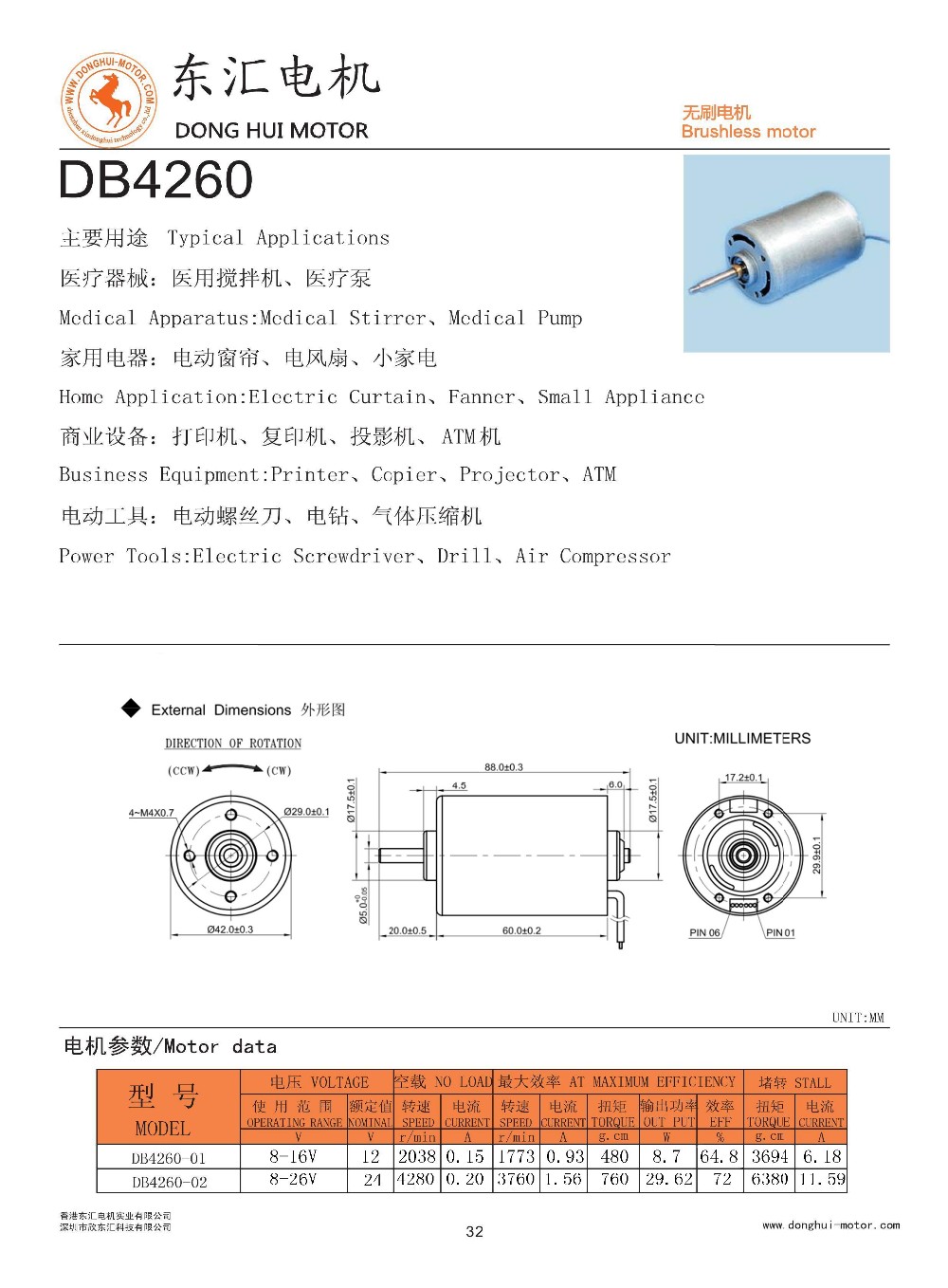

Specifications Drawing
🔗

Related Products

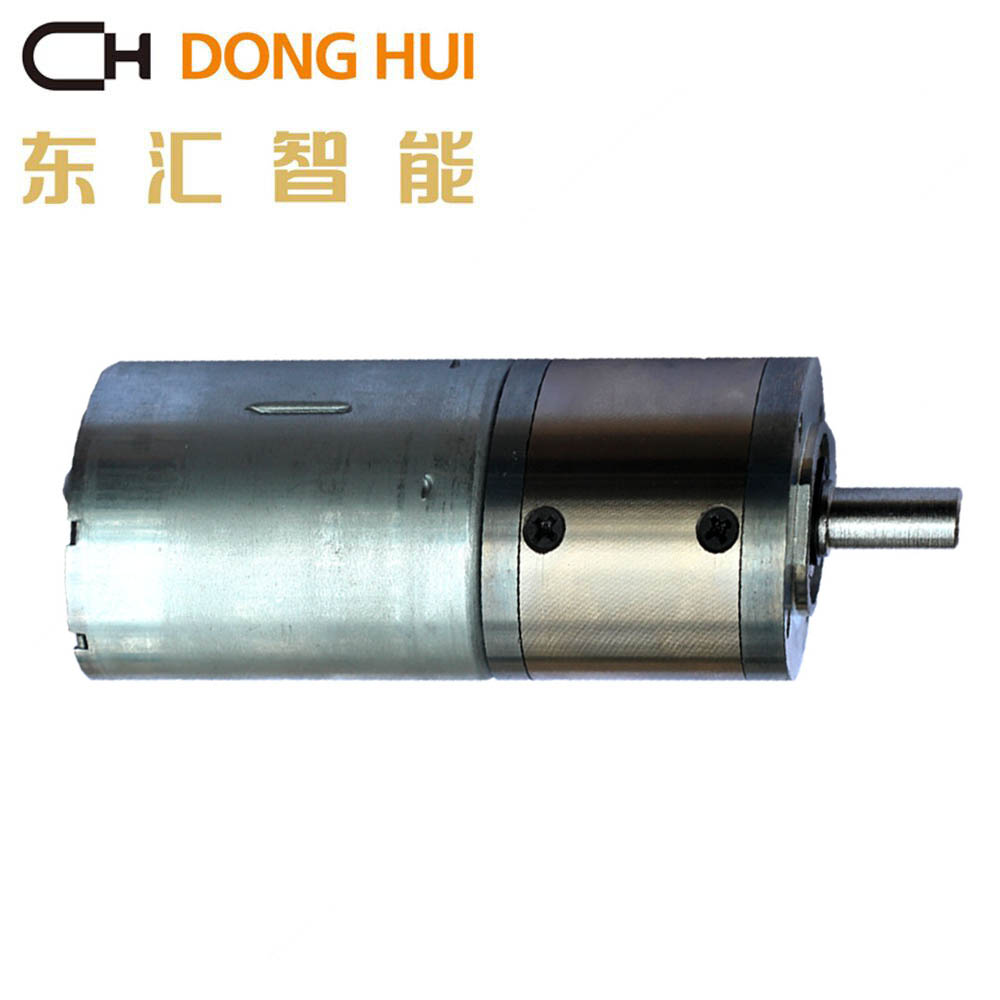

Related Motor 1

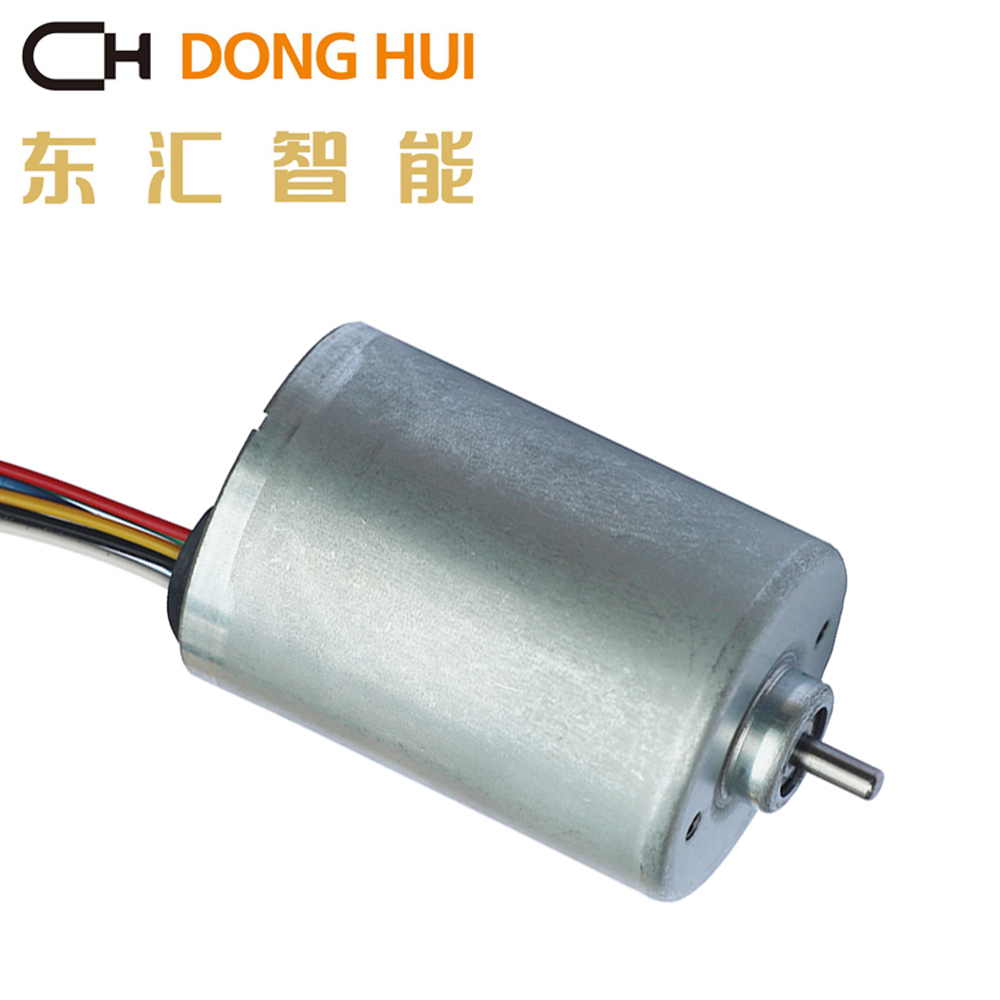

Related Motor 2
🏆

Certifications & Production

Production Line 1
Production Line 2
Quality Control
Certifications Display
📦

Packing & Delivery

Standard packaging: Lister/Carton for protection during transit.

Packaging Box 1
Packaging Box 2
Logistics Process
Shipping Method Shipping Time Advantages & Disadvantages
Express (DHL/UPS/FEDEX/TNT) 3-5 days Fast and expensive, door to door.
Air Shipping 3-5 days Fast, airport to airport.
Sea Shipping 15-30 days Cheap and slow, port to port.
❓

Frequently Asked Questions

What are your main products?
We specialize in Dia10~52mm DC Micro Motors and Gear Motors, including Auto DC motors, brushless motors, vibration motors, and spur gear motors.
What are the primary applications for these motors?
Our motors are widely used in home appliances, office equipment, medical devices, banking systems (vending machines/payment locks), and automation industries.
Do you offer product customization?
Yes. We have a strong design team that can customize voltage, speed, torque, and overall dimensions to meet your specific technical requirements.
What information is required to place an order?
Please provide the required voltage, speed, torque, and the overall dimensions needed for your application.
What is the typical lead time for delivery?
For standard orders, the delivery time is generally between 20-25 days after the order is confirmed.
How are the products shipped?
We offer Express (3-5 days), Air Shipping (3-5 days), and Sea Shipping (15-30 days) depending on your budget and urgency.
