Home > dc brushless motor > High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver

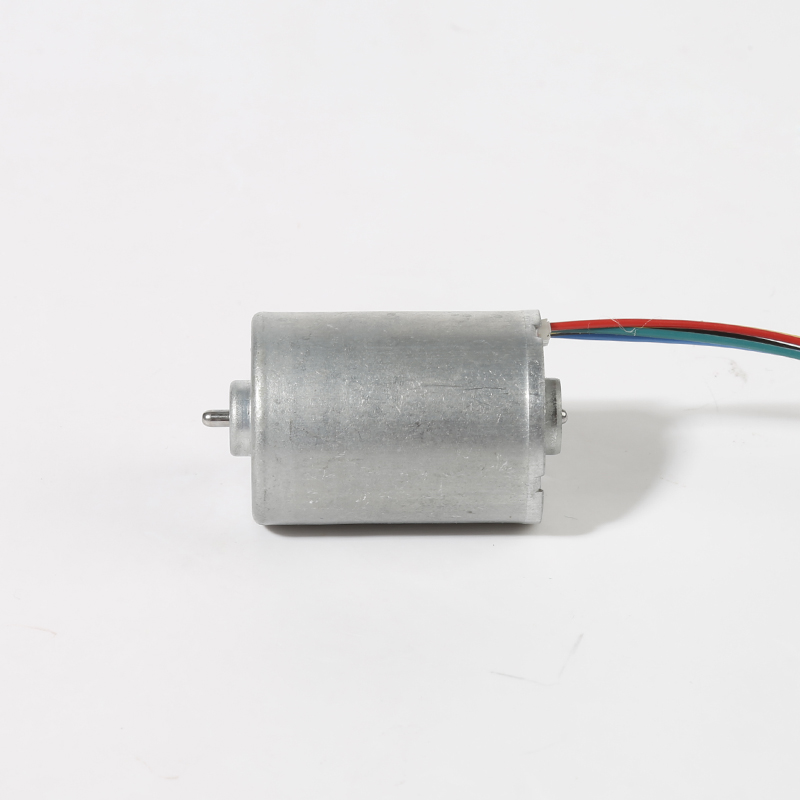

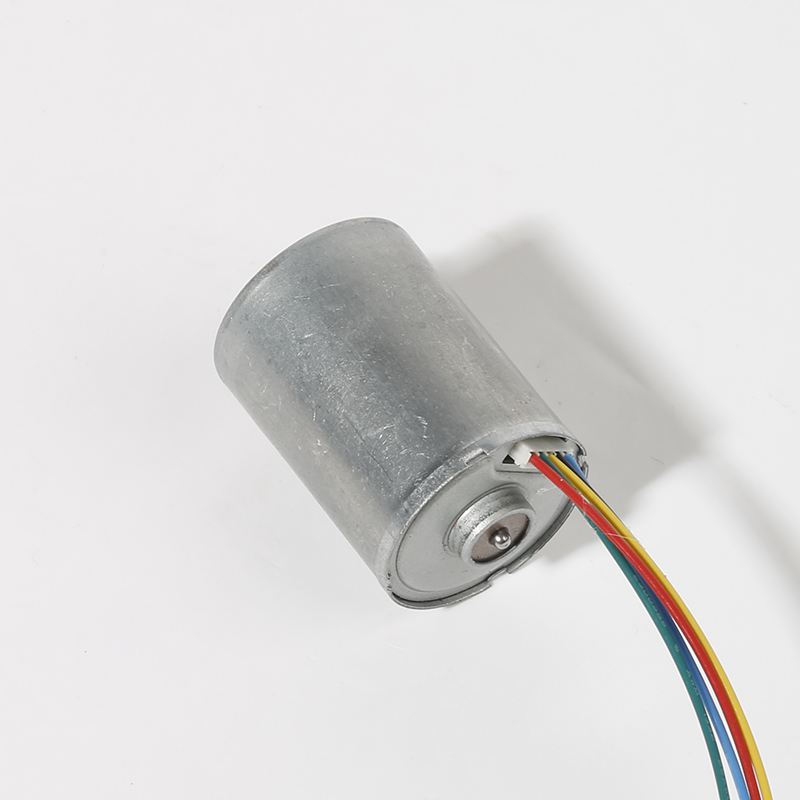

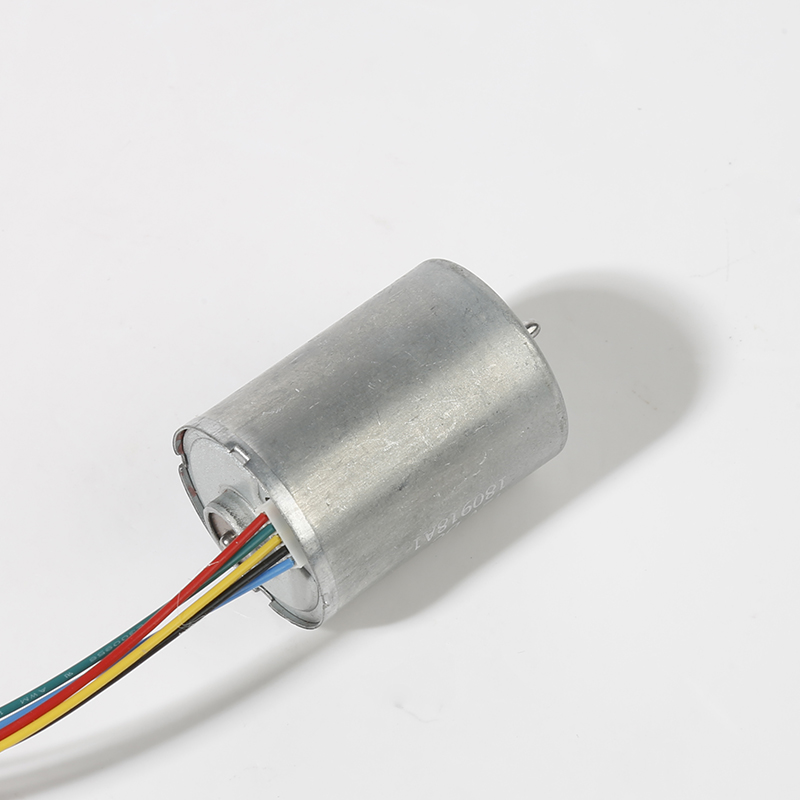

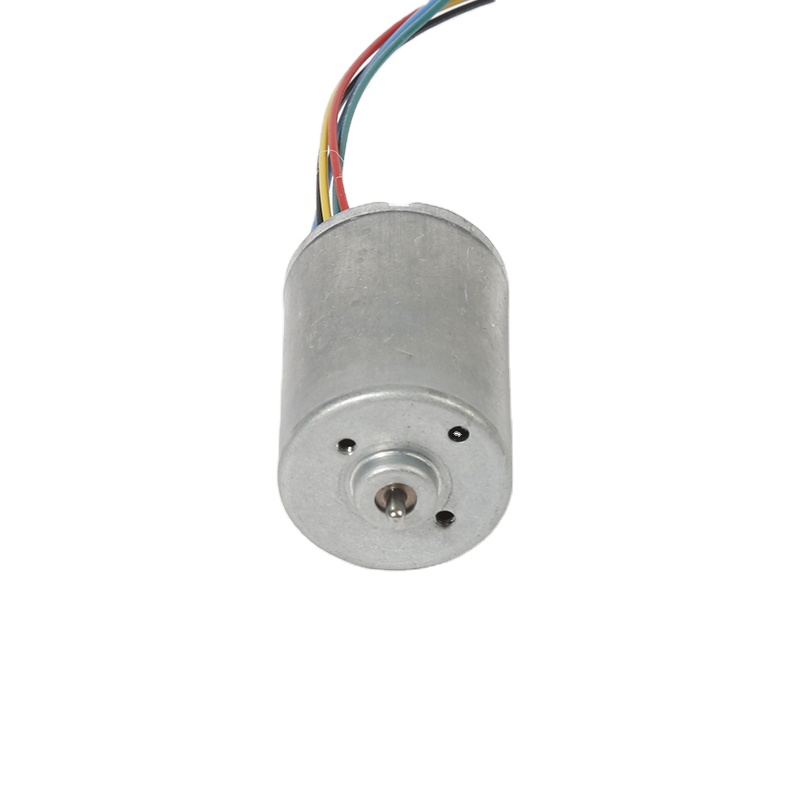

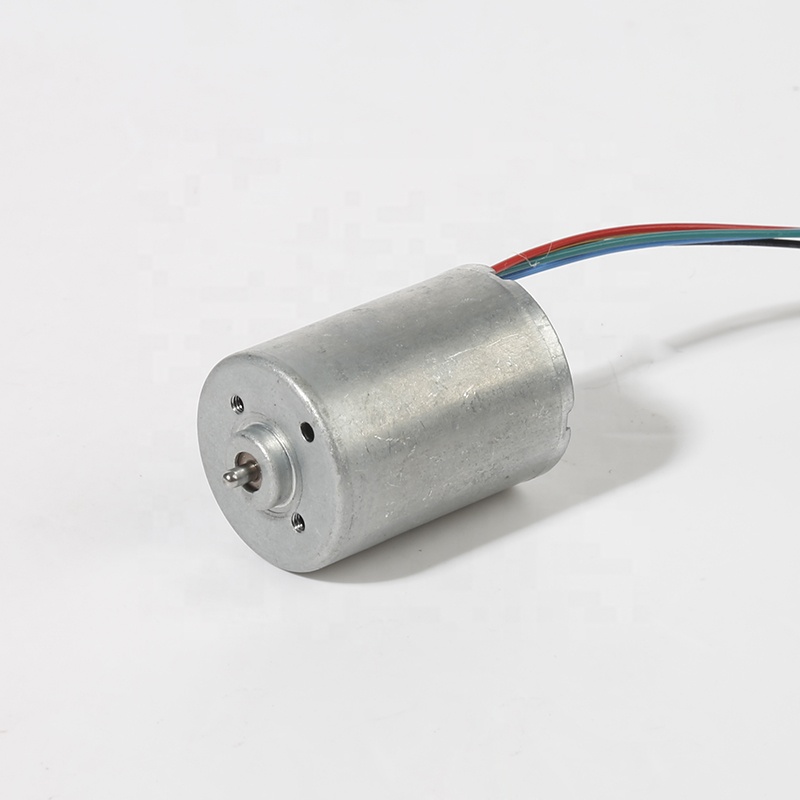

High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
1 / 5
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver
High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver

High Quality 36mm Small Brushless Dc Bldc Motor 12V 24V 9V 18V BL3650i B3650M with Driver

Send Inquiry

Product Description

Product Description
  • Size: Ø36.0* 50.0mm
  • Built-in driver (Controller with hall sensor)
  • PWM pulse wide speed range
  • Clockwise/counter-clockwise rotation
  • FG speed feedback signal
  • Low EMC Low noise
  • Long life: 3000hrs Min.
  • Over-current protection
  • Over-voltage protection
  • Under-voltage protection
  • Customization acceptable
Model B3650M-S01 B3650M-S02 B3650M-S03
Voltage(V) Operating Range 8-26 8-26 8-26
Rated 12 24 24
No Load Speed (rpm) 5300 8589 4327
Current (A) 0.46 0.25 0.18
Rated Load Torque (mNm) 23.5 40 45
Speed (rpm) 4600 6925 3714
Current (A) 1.53 1.524 1.01
Output P. (W) 11.35 29 17.49
Stall Torque (mNm) 77.8 206.5 316.8
Current (A) 2.5 6.8 2.5
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
Brushless DC Motor Details
36mm BLDC Motor Series Comparison
Model Voltage(V) No Load Rated Load Stall
Range Rated Speed Current Torque Speed Current Power Torque Current
B3626M-S018-26927200.1213.739850.571.4221.512.5
B3626M-S028-261244600.1810.7937500.574.2366.742.5
B3630M-S028-261252000.2714.7242600.96.5681.32.5
B3640M-S028-261279300.5619.6268001.8913.9783.223.0
B3650M-S028-262485890.254069251.52429206.56.8
B3657M-S048-262447430.2598.0034862.2435.78369.875.0
Packaging & Shipping

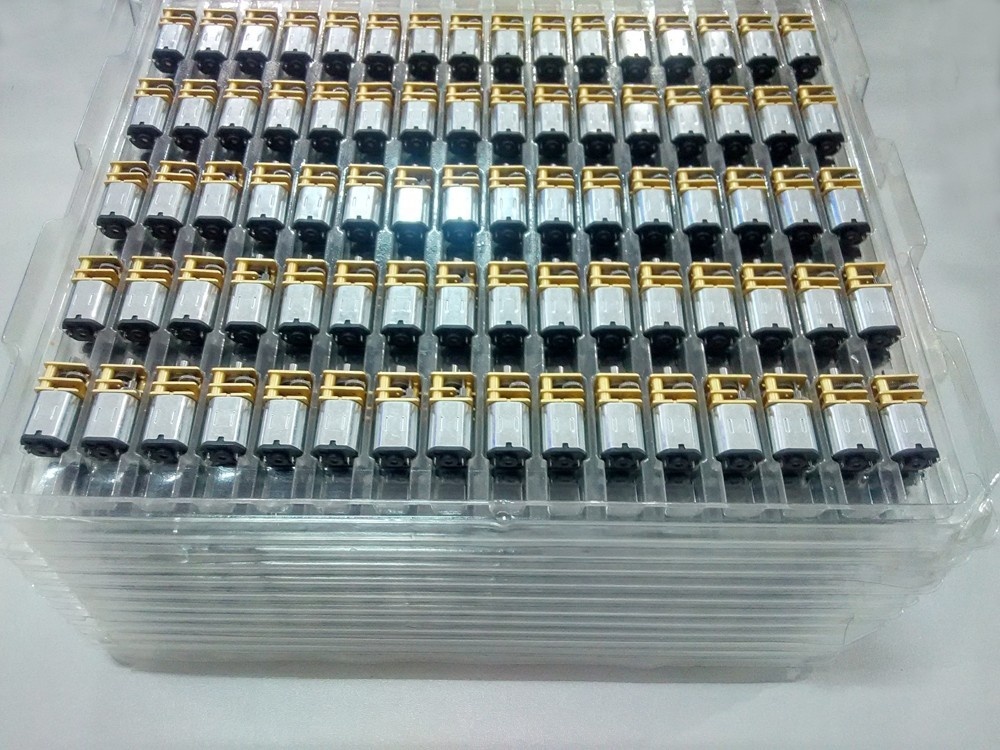

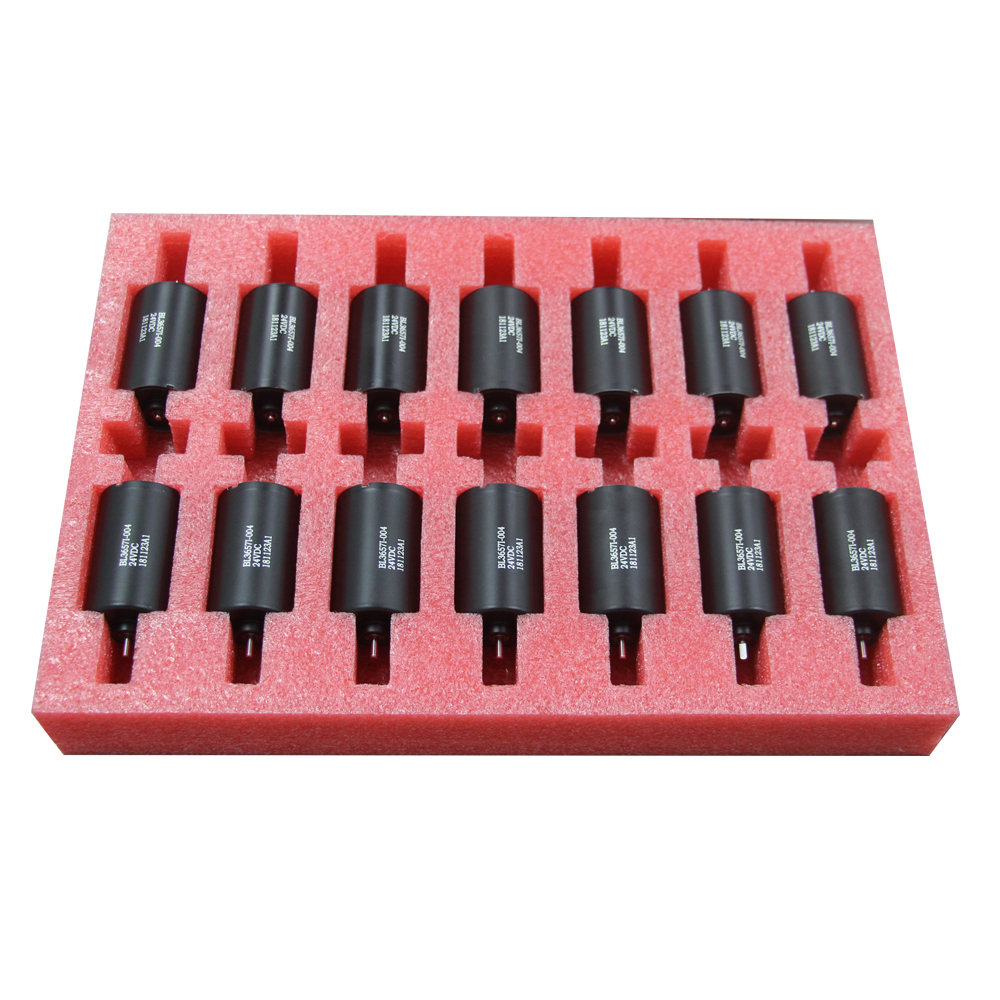

Packaging 1 Packaging 2 Packaging 3
Shipping Logistics
Technical Capacity

Professional micro motor manufacturer for more than 15 years.

  • Brush Dc Motor: Φ6mm—Φ60mm
  • Brushless Dc Motor: Φ24mm-Φ52mm
  • Coreless Motor: Φ4mm—Φ45mm
  • Gear/Planetary Motor: Φ4mm—Φ60mm
  • Voltage Range: DC1.5V-220V
  • Speed Range: 0.1-80,000RPM

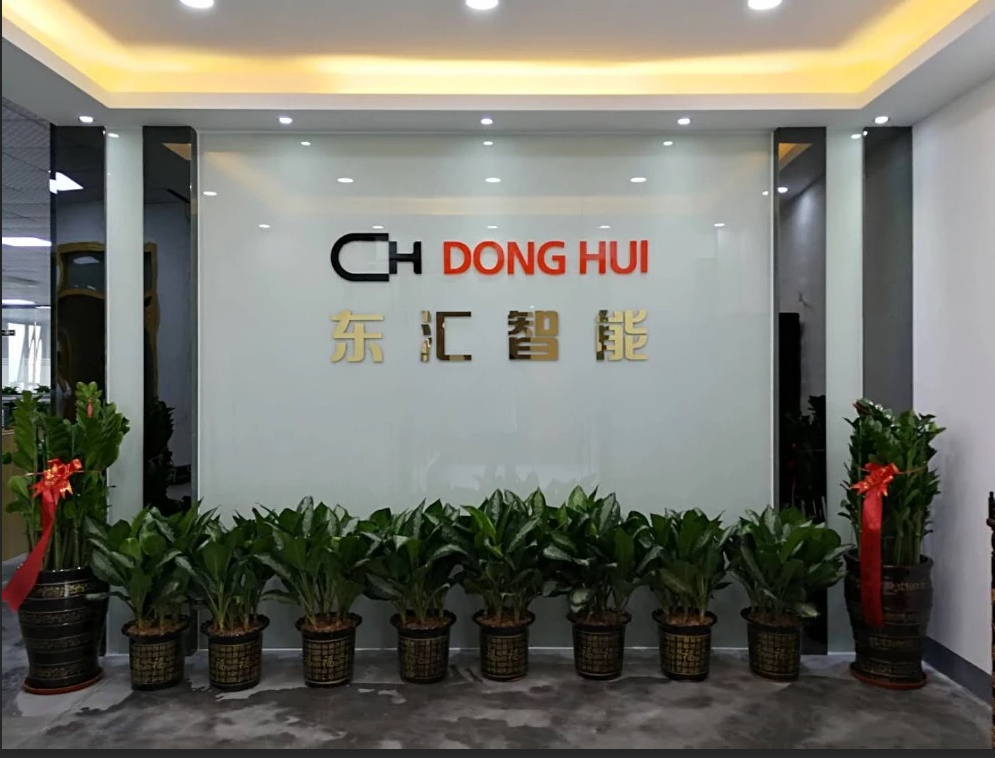

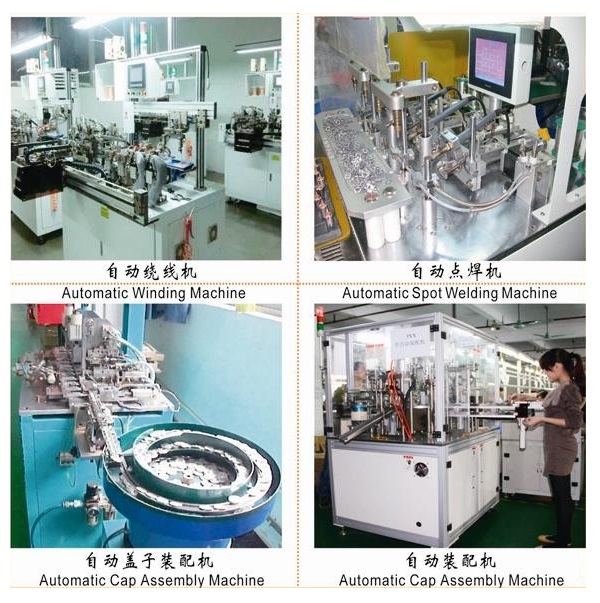

Factory Overview Production Line Testing Equipment
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer with over 15 years of experience in micro motor production.
Q: Do you accept OEM or ODM customization?
A: Yes, our R&D team includes 7 experienced engineers. We can customize voltage, speed, torque, and dimensions to meet your specific requirements.
Q: What information is needed for a customized order?
A: Please provide the required operating voltage, rated speed, rated torque, and the overall dimensions available for the motor.
Q: How long does delivery take for samples and bulk orders?
A: Sample orders typically take 7-15 workdays. Bulk production orders usually take 15-25 workdays depending on the volume.
Q: What are the primary applications for your motors?
A: Our motors are widely used in home appliances, office equipment, healthcare devices, automation industry, electronic tools, and smart locking systems.
Q: What payment methods do you support?
A: We accept payment via T/T and PayPal. Sample orders require 100% advance payment; bulk orders require a 30-50% deposit with the balance due before shipment.
