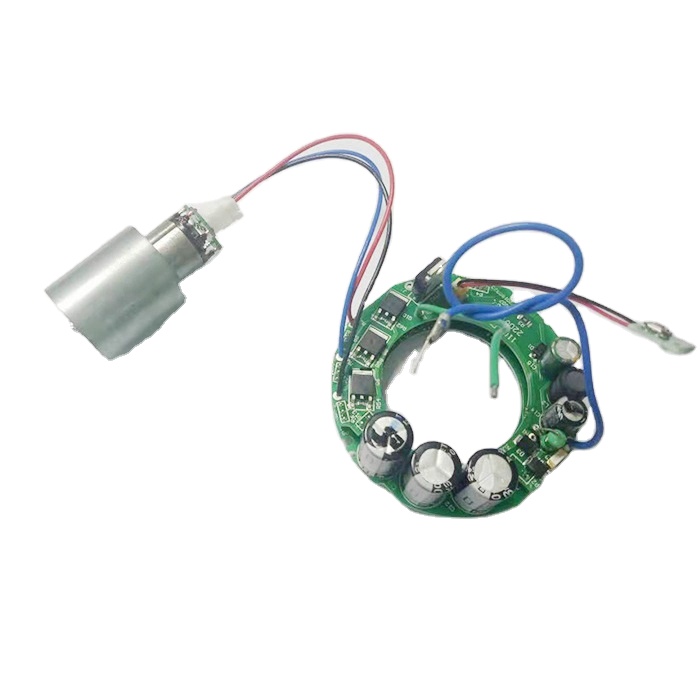

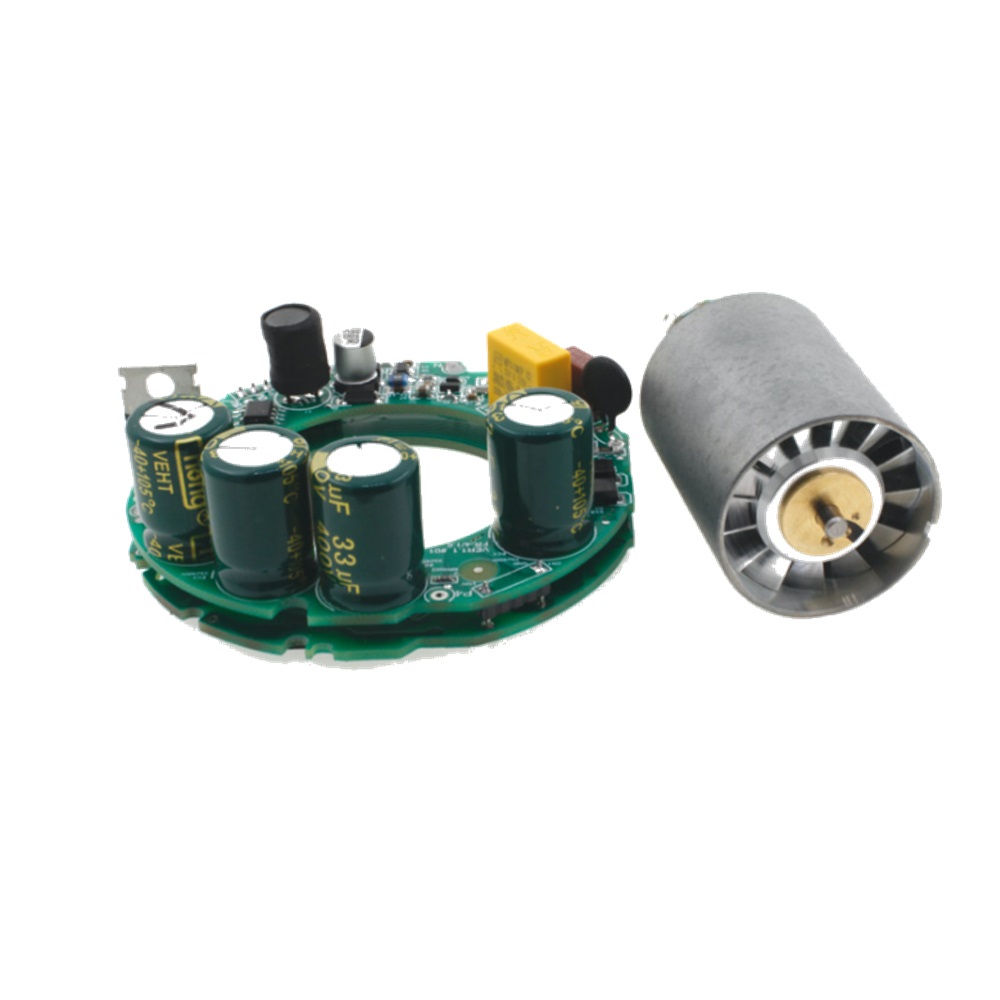

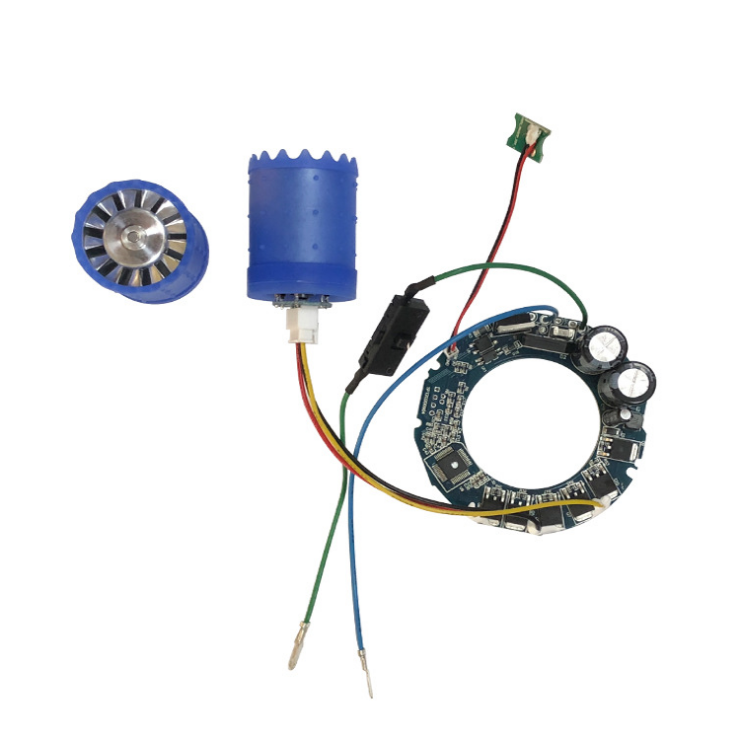

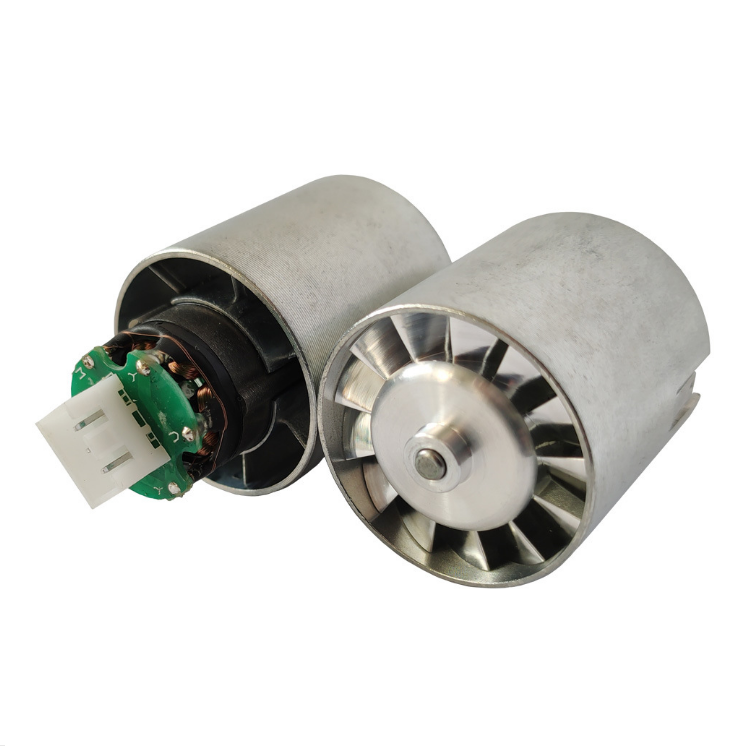

29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
1 / 4
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor
29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor

29mm 12V 24V 110v 220v 230v High Speed Bldc 100000 Rpm Hair Dryer Dc Motor

Send Inquiry

Product Description

Product Specification
Item 100000rpm electric motor
Size Diameter 29mm, Length 40mm
Voltage 110V 220v 230v Customized (12V 24V 36V 48V)
Speed 100000-110000rpm Closed loop
Rated Load Ø 27 - 13 fan blades
Max Wattage ≤125watt
Rated Current ~0.58A
Rated Input Power ≤80watt
Air Velocity 19.0 m/s REF.
Lifetime more than 1000 hours
Protection Over current protection, Over heating protection
Feature Long Lifetime, Low Noise, High Efficiency, Stable and Reliable
Application Hair dryer
Product Description
⭐ The following motor voltage, speed, torque, shaft length, and shaft type can be customized.
Motor Details 1
Motor Details 2
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Packaging Overview
Packaging Detail 1
Packaging Detail 2
Delivery Logistics
Manufacturing Capability

Professional micro motor/engine manufacturer for 10 years. Our production capabilities include:

  • Brush DC Motor: Φ6mm—Φ60mm
  • Brushless DC Motor: Φ12mm-Φ42mm
  • Coreless Brush/Brushless DC Motor: Φ4mm—Φ45mm
  • Gear/Planetary Gear DC Motor: Φ4mm—Φ60mm
  • Stepper DC Motor: Φ6mm—Φ24mm
  • Vibration DC Motor: Φ4mm—Φ45mm
  • Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
  • Speed Range: 0.1-80,000RPM
  • Output Torque: 0.01-500Kg.cm
  • Shaft Length: 0.1-150mm
  • Gearbox Ratio: 1:4 to 1:5000
    • Production Line 1
    Production Line 2
    Quality Control
    Factory Testing
    Frequently Asked Questions
    What's your main products?
    Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
    What's the main usage of the micro dc gear motor?
    Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industry, Banking Systems, Electronic tools, automation industry, payment equipment, vending machines, and electric door locks.
    Do you accept customization?
    Sure, as we have a strong design team, any technical requirements can be customized to meet your needs.
    What kind of data do I need to provide for an order?
    Please kindly provide the required voltage, speed, torque, and overall dimensions.
    What if I don't know the specific motor data?
    Please contact our team with your application requirements, and we will recommend the best fit model for you.
    Is there any protection built into the motors?
    Yes, our high-speed motors include over-current and over-heating protection to ensure safe and stable operation.
