Home > dc brushless motor > 28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

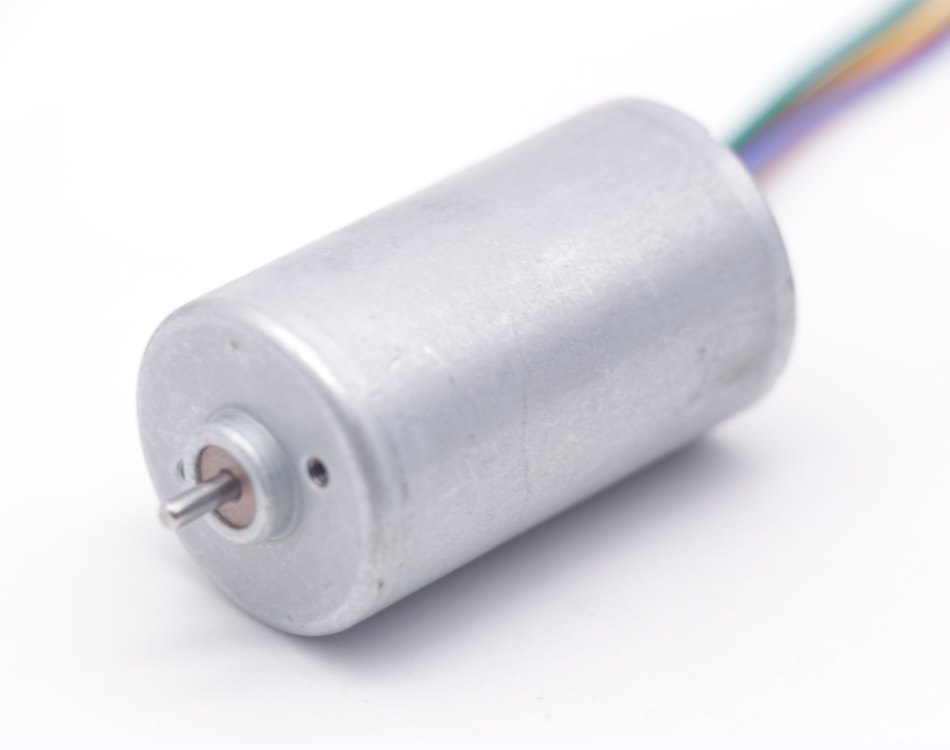

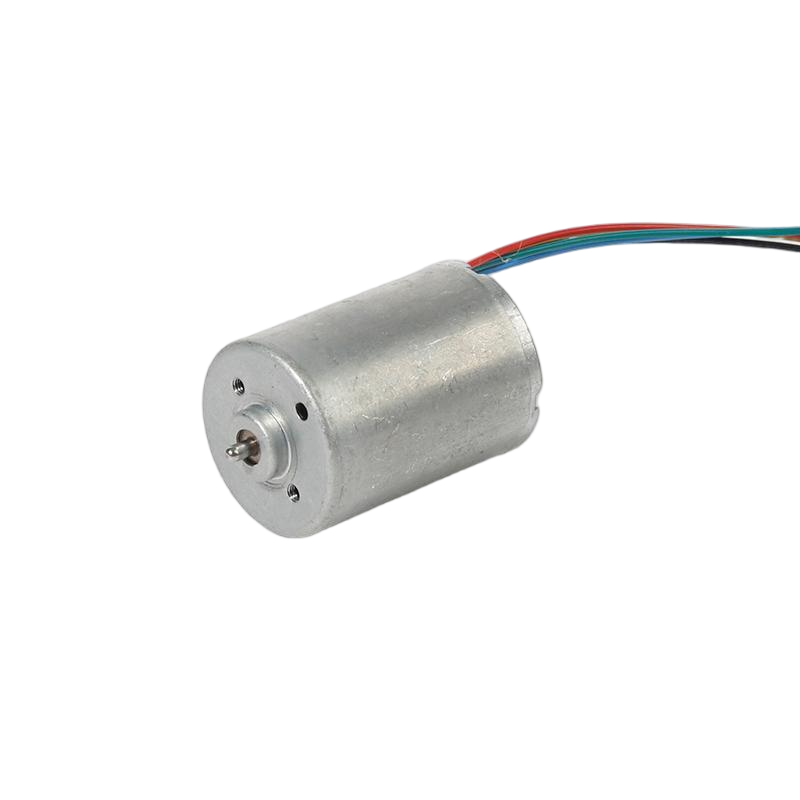

28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
1 / 5
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper
28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

28mm 3.7V 5v 6v 7.4V 9v 12v 24v 2838 Mini Brushless Dc Motor for Valve Actuator Hair Clipper

Send Inquiry

Product Description

Product Specifications
Item2838 Brushless Motor, 2847 Brushless Motor
SizeDiameter 28mm, Length 38mm, 47mm
Voltage3.7V~26V
Unload Speed2000-12000rpm
Output Torque≤1100g.cm
Wattage≤25watt
DriverBuilt-in design or Customized
BearingBall bearing or normal bearing
Lifetime3000hours~20000hours
FunctionFG, CW/CCW, PWM
ProtectionOver current protection, Over heating protection
FeatureLong lifetime, low noise, high efficiency, stable and reliable
ApplicationFan, Car Vacuum Cleaner, Food Processor, Pump, Toy and Model, Power tool, Drill
Product Description
Customization Available: Motor's voltage, speed, ratio, torque, and shaft length can be fully customized to meet your specific requirements.

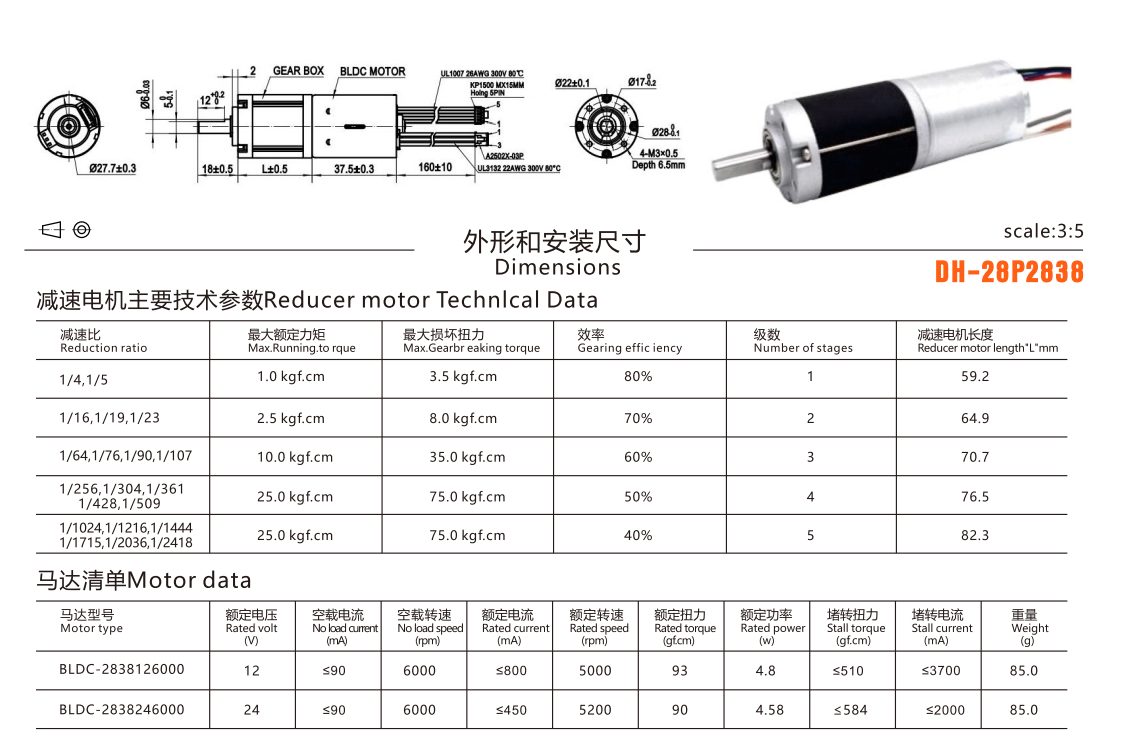

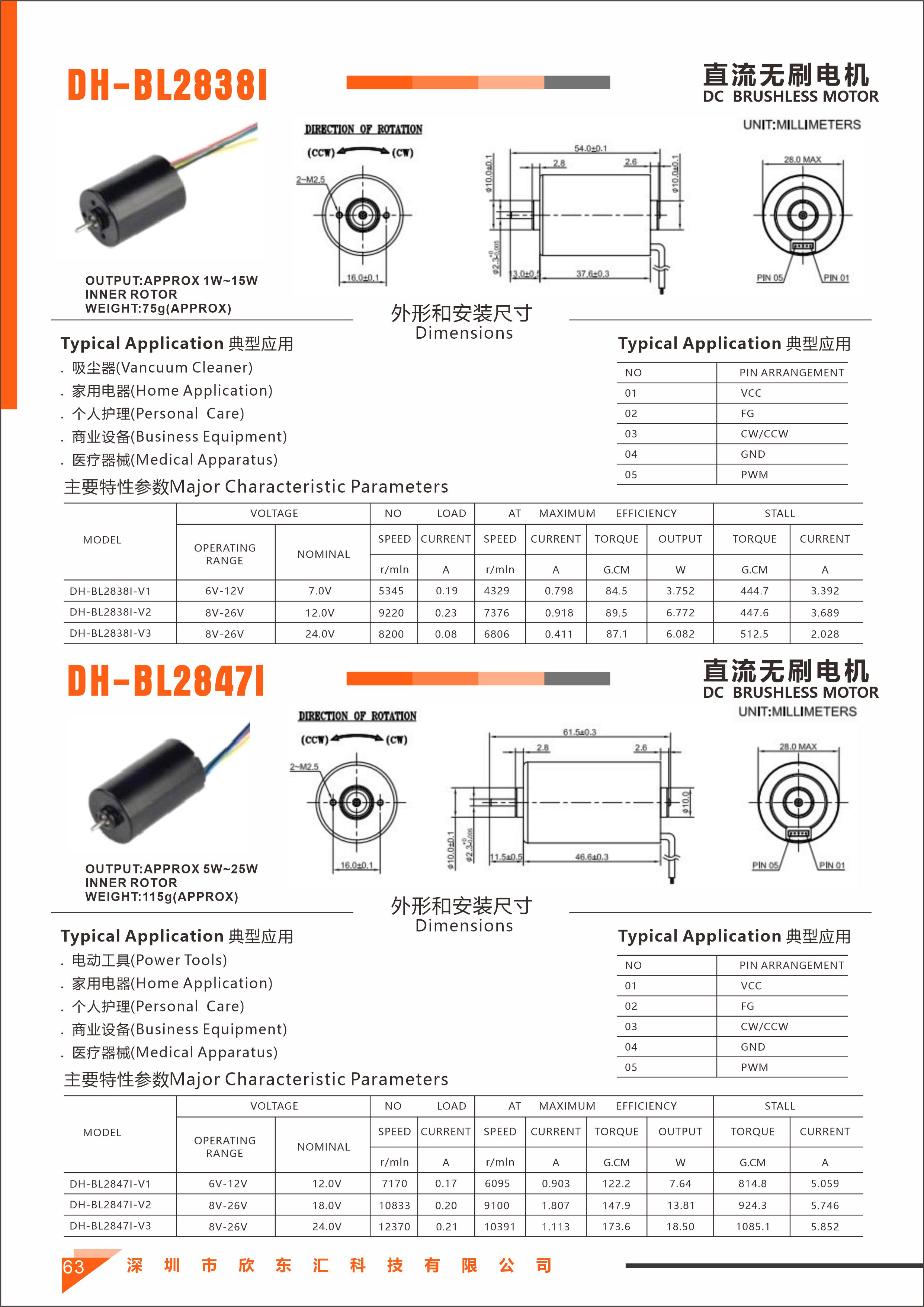

Brushless Motor Details Motor Dimension Chart
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

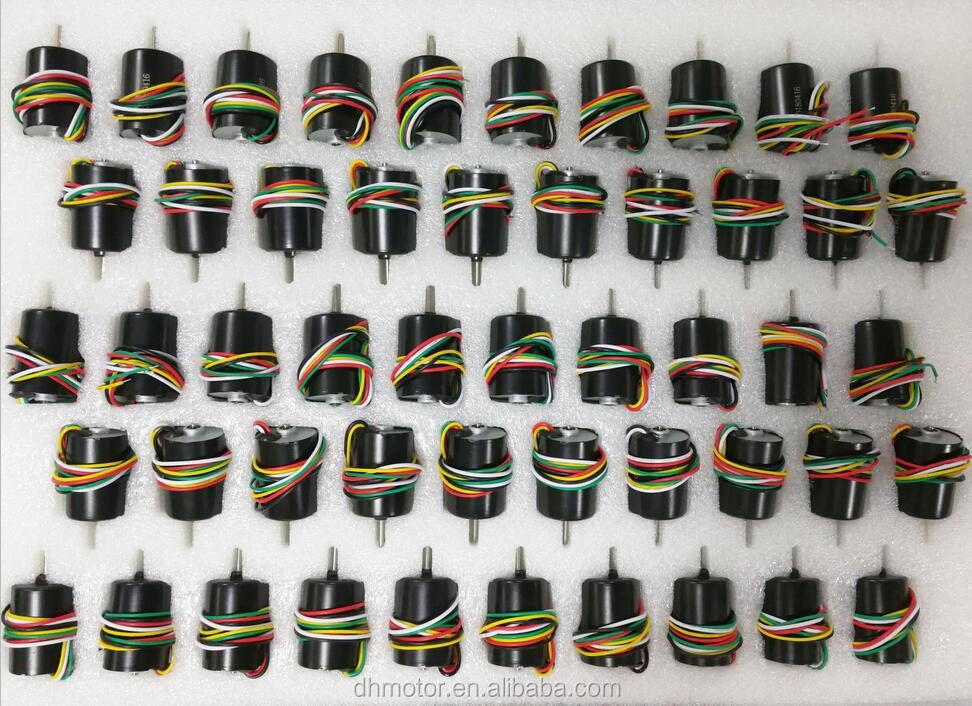

Packaging Process 1 Packaging Process 2 Packaging Process 3 Delivery Preparation
Production Facilities
Frequently Asked Questions
Can I customize the motor parameters?
Yes, we offer customization for voltage, speed, ratio, torque, and shaft length to fit your specific application needs.
What is the expected lifetime of these brushless motors?
Depending on the usage and environment, our motors are designed to last between 3,000 and 20,000 hours.
What safety protections are built into the motor?
The motors include integrated over-current protection and over-heating protection to ensure stable and reliable operation.
What control functions do these motors support?
Our brushless motors support FG (Frequency Generator) signal output, CW/CCW (Clockwise/Counter-Clockwise) direction control, and PWM (Pulse Width Modulation) speed control.
What are the typical applications for the 2838/2847 series?
These motors are widely used in fans, car vacuum cleaners, food processors, pumps, toys, models, and various power tools like drills.
What bearing options are available?
You can choose between high-performance ball bearings or standard normal bearings depending on your budget and performance requirements.
