Home > dc brushless motor > Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor

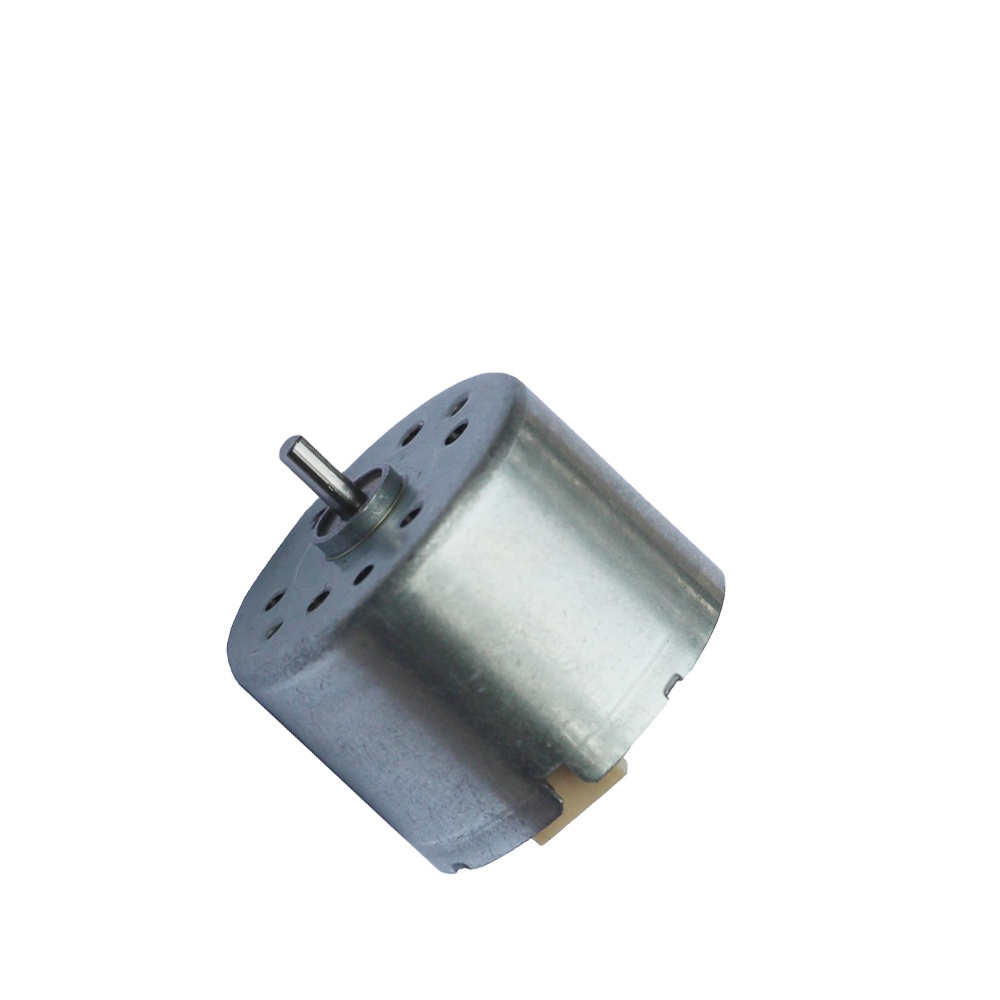

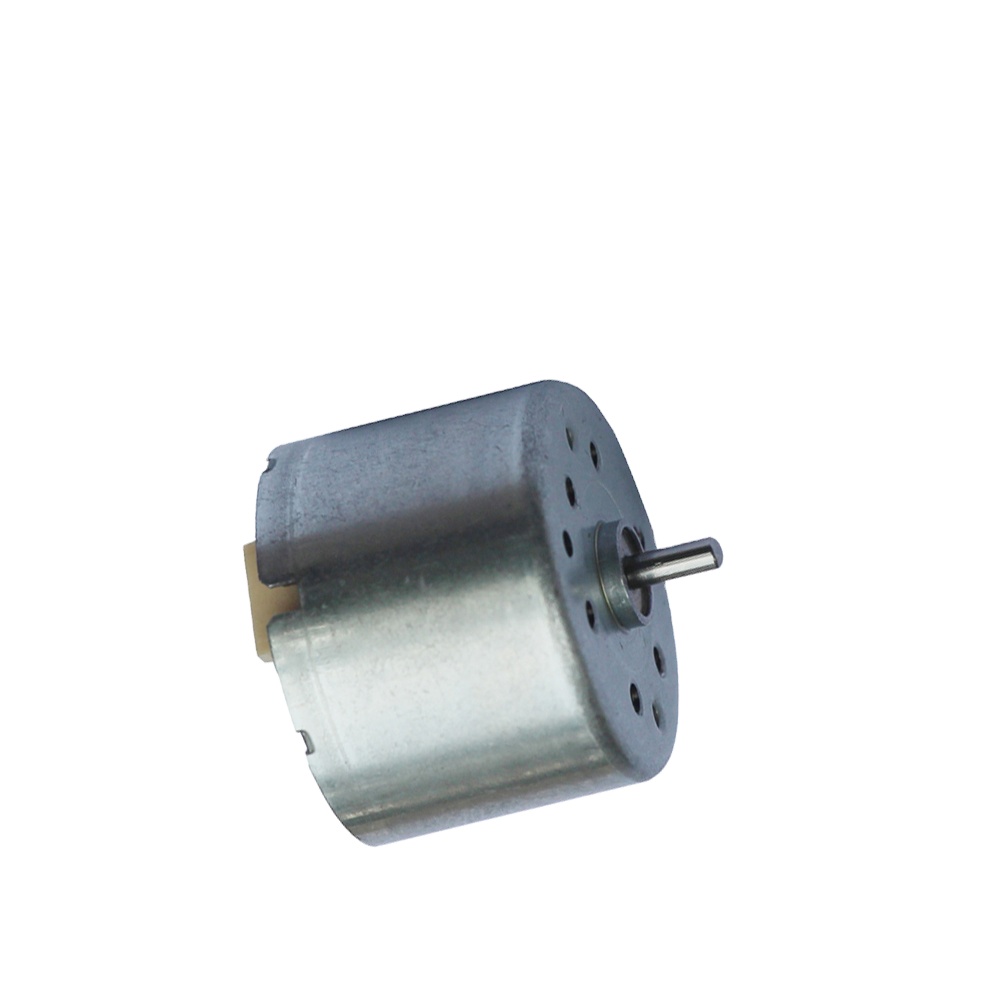

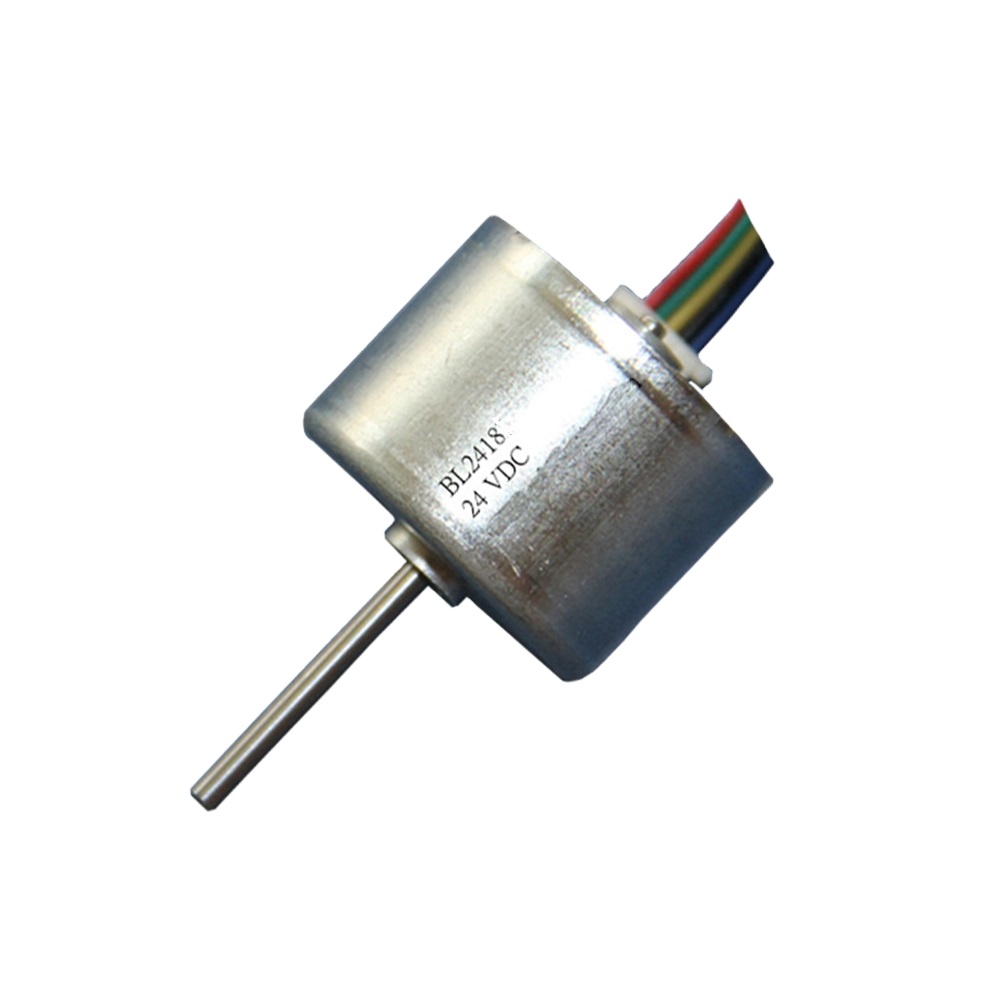

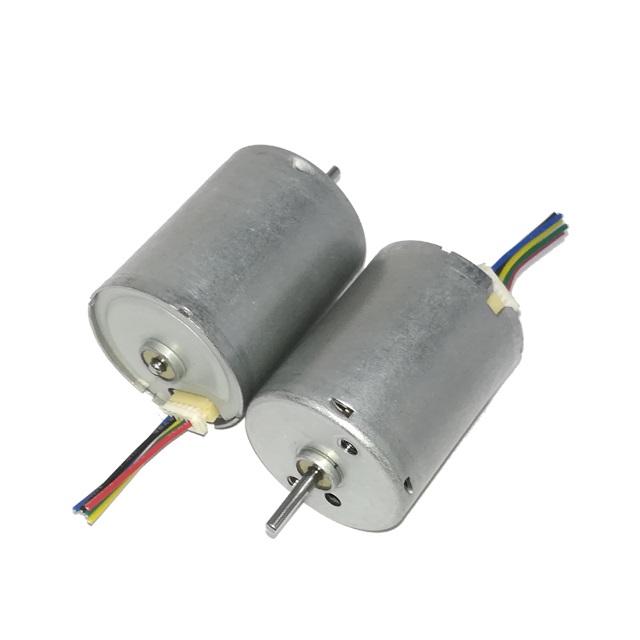

Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
1 / 5
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor
Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor

Bl2418 Bl2430 3.7V 5V 6V 12V 24V 24mm Mini Dc Brushless Motor

Send Inquiry

Product Description

⚙️ Specification

Item Mini Brushless Motor
Size Diameter 24mm, Length 18mm, 30mm
Voltage 3.7V~26V
Unload Speed 2000-11000rpm
Output torque ≤350g.cm
Wattage ≤8watt
Driver Bulit-in design or Customized
Bearing Ball bearing or normal bearing
Lifetime 3000hours~20000hours
Function FG, CW/CCW, PWM
Protection Over current protection, Over heating protection
Feature long lifetime, low noise, high effiency, stable and reliable
Application Fan, Car Vacuum Cleaner, Food Pricessor, Pump, Toy and Model, Power tool, Drill

💡 Product Description

The following motor's voltage, speed, current, wattage, torque, shaft length, and type can be customized.

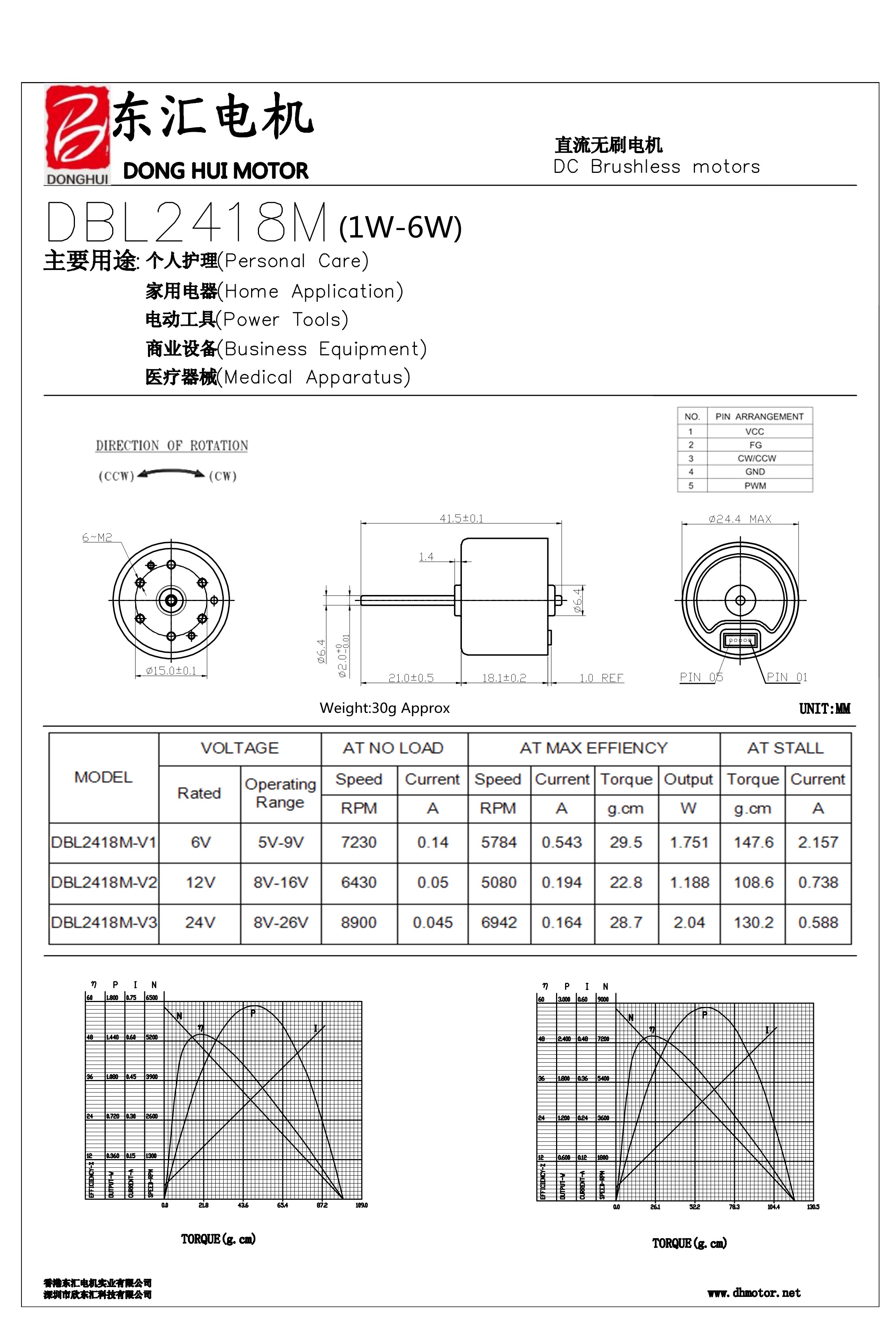

Mini Brushless Motor Image 1
Mini Brushless Motor Image 2

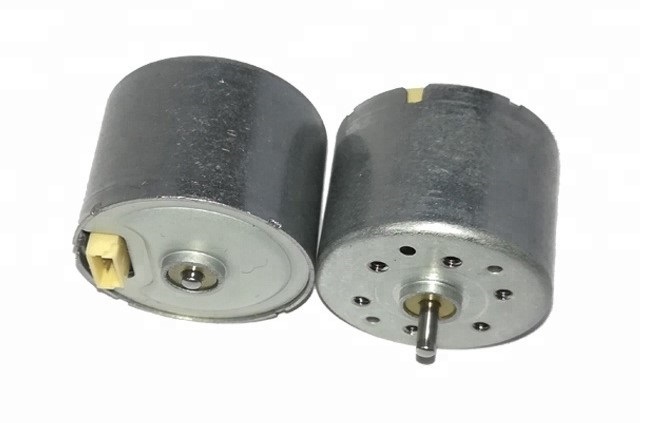

Mini Brushless Motor Image 3
Mini Brushless Motor Image 4

📦 Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing Solution 1
Packing Solution 2
Packing Solution 3
Packing Solution 4

🏢 Company Profile

🔧 Professional micro motor/engine manufacturer for 10 years
  • Brush Dc Motor: Φ6mm—Φ60mm
  • Brushless Dc Motor: Φ12mm-Φ42mm Coreless
  • Brush/Brushless DC Motor: Φ4mm—Φ45mm
  • Gear/Planetary Gear Dc Motor: Φ4mm—Φ60mm
  • Stepper Dc Motor: Φ6mm—Φ24mm
  • Vibration Dc Motor: Φ4mm—Φ45mm
  • Motor Voltage Range: DC1.5V-220V, AC 110V/220/230/240V
  • Speed Range: 0.1-80,000RPM
  • Output Torque: 0.01-500Kg.cm
  • Shaft Length: 0.1-150mm
  • Gearbox Ratio: 1:4---1:5000
Production Facility 1
Production Facility 2
Quality Control 1
Quality Control 2

❓ FAQ

1 What's your main products?
Diameter 4~60 mm DC Micro Motor and Gear Motor, Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor, Spur Gear motor, Micro Motor, Vibration motor etc.
2 What's the main usage of the micro dc gear motor?
Our motor widely used in Home Appliance, Office Equipment, Health-care appliance, Sanitation industry, High-class toy, Banking System, Electronic and electrical tools, automation industry, bank equipment, payment equipment, vending machines, power door lock, electric door lock.
3 Do you accept customize?
Sure, as we have a strong design team, any problems will get our technical answer.
4 What kind of data do I need to provide if I want to order?
Please kindly tell us your voltage, speed, torque and overall dimension.
5 What if I don't know the above data?
Please contact our team, tell us your requirement, we will recommend the best fit model.
6 What is the lifetime of your brushless motors?
The lifetime ranges from 3000 hours to 20000 hours, depending on configuration options like bearings (ball bearing or normal bearing) and customization specs.
